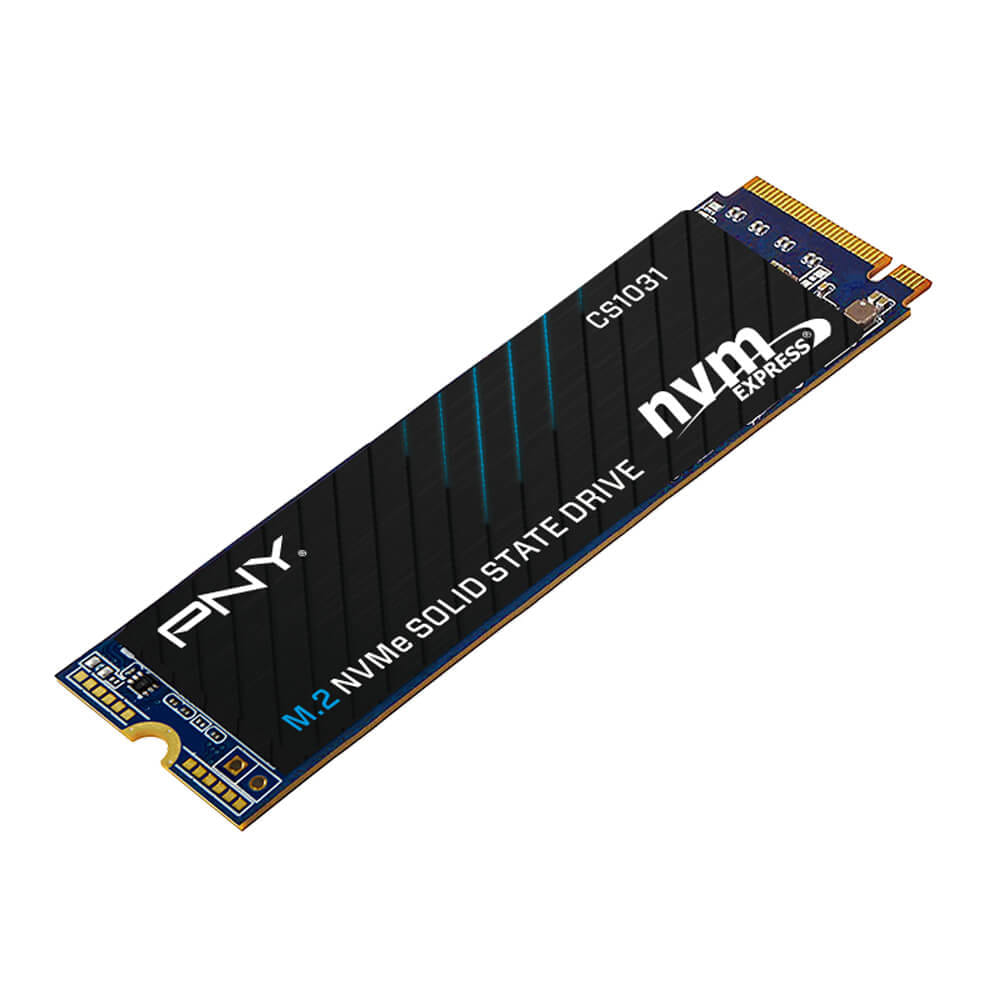

PNY CS1031 500GB NVMe SSD Gen3x4 M.2 2200MB/s 1200MB/s R/W 110TBW 2M hrs MTBF 5yrs wty
Sequential read of up to 2,200 MB/s
Sequential write of up to 1,200 MB/s
Faster boot-up and quicker application launch
Better overall system performance
Reliable storage
Low power consumption, cool and quiet operation
Specification
Usable Capacities 500GB
NAND Components 3D NAND
Interface PCIe Gen 3x4 NVMe 1.3
Form Factor M.2 2280
Package Dimensions (L -W -H) 123 x 85 x 4.3 mm
Weight 6.6g
Max Sequential Read Up to 2200MB/s
Max Sequential Write* 500GB: up to 1200MB/s
TBW 500GB: 110
PCIe Link Power Management APST, ASPM, L1.2
Operating Temperature 0 DegC to 70 DegC
Storage Temperature -40 DegC to 85 DegC
Certifications BSMI, CE, FCC, KCC, VCCI, REACH, RoHS
MTBF 2 Million Hours
Error Correction Code Less than 1 sector per ten quadrillion bits read
Warranty 5-year Limited Warranty
Sequential write of up to 1,200 MB/s
Faster boot-up and quicker application launch
Better overall system performance
Reliable storage
Low power consumption, cool and quiet operation
Specification
Usable Capacities 500GB
NAND Components 3D NAND
Interface PCIe Gen 3x4 NVMe 1.3
Form Factor M.2 2280
Package Dimensions (L -W -H) 123 x 85 x 4.3 mm
Weight 6.6g
Max Sequential Read Up to 2200MB/s
Max Sequential Write* 500GB: up to 1200MB/s
TBW 500GB: 110
PCIe Link Power Management APST, ASPM, L1.2
Operating Temperature 0 DegC to 70 DegC
Storage Temperature -40 DegC to 85 DegC
Certifications BSMI, CE, FCC, KCC, VCCI, REACH, RoHS
MTBF 2 Million Hours
Error Correction Code Less than 1 sector per ten quadrillion bits read
Warranty 5-year Limited Warranty
| Features | |
| NVMe version | 1.3 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 500 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 3.0 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D NAND |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | PC/notebook |
| Hardware encryption |
 |
| Read speed The speed at which a device can read data. | 2200 MB/s |
| Write speed The speed at which a device can write data. | 1200 MB/s |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support |
|
| TRIM support |
|
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| End-to-End Data Protection |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2000000 h |
| TBW rating | 110 |
| SSD usage tag | Consumer |
| Certification | BSMI, FCC, KCC, VCCI |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Maximum operating temperature | 70 °C |
| Technical details | |
| Sustainability certificates | CE, REACH, RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 22 mm |
| Height The measurement of the product from head to foot or from base to top. | 2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6.6 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 85 mm |
| Package depth The distance from the front to the back of the packaging. | 123 mm |
| Package height The distance from the top to the bottom of the packaging. | 4.3 mm |
| Package type The type of product package e.g. box. | Hanging box |
| SKU | 682409 |
| MPN | M280CS1031-500-CL |
| Brand | PNY |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Connection Interface | PCIe Gen 3 NVMe M.2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.pny.com/ |
