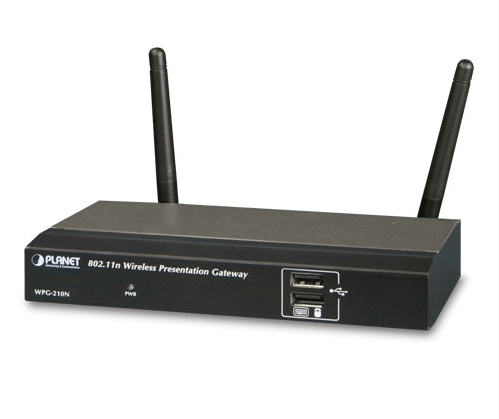

Planet 802.11n Wireless Presentation Gateway (HDMI / VGA Output)
PLANET WPG-21 N is a wireless presentation gateway adopting IEEE 8 2.11n technology to provide 3 Mbps high speed wireless transmission. It is equipped with both VGA and HDMI video output interfaces and one 1 /1 Mbps Ethernet port for LAN connection. With the hardware decoding capability the WPG-21 N can project high-definition video on the screen and audio through wireless or wired LAN connections. It facilitates multiple users to freely display the presentations images and videos via wireless connection to a projector or LCD TV without using lots of cables.
* Wireless Multimedia Projection* Up to 3 fps Network Screen Projection* VGA / 72 p HDMI output* 4-to-1 Split Screen Projection* Audio / Video Streaming* Plug & Show* 8 2.11n Wi-Fi AP & AP-Client Mode* Remotely Operable by Mouse / Keyboard* Web browser / SNMP management* Multiple users access* Compact size convenient for installation and placement
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
 |
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | RP-SMA |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 2 dBi |
| Antennas quantity | 2 |
| Network | |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 GHz |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100Base-T(X) |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 64-bit WEP, 128-bit WEP, WPA, WPA2-PSK |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Storage relative humidity (H-H) | 10 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 160 mm |
| Depth The distance from the front to the back of something. | 60.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 30 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 312 g |
| SKU | 544364 |
| MPN | WPG-210N |
| Brand | Planet |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wireless |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.planet.com.tw/ |
