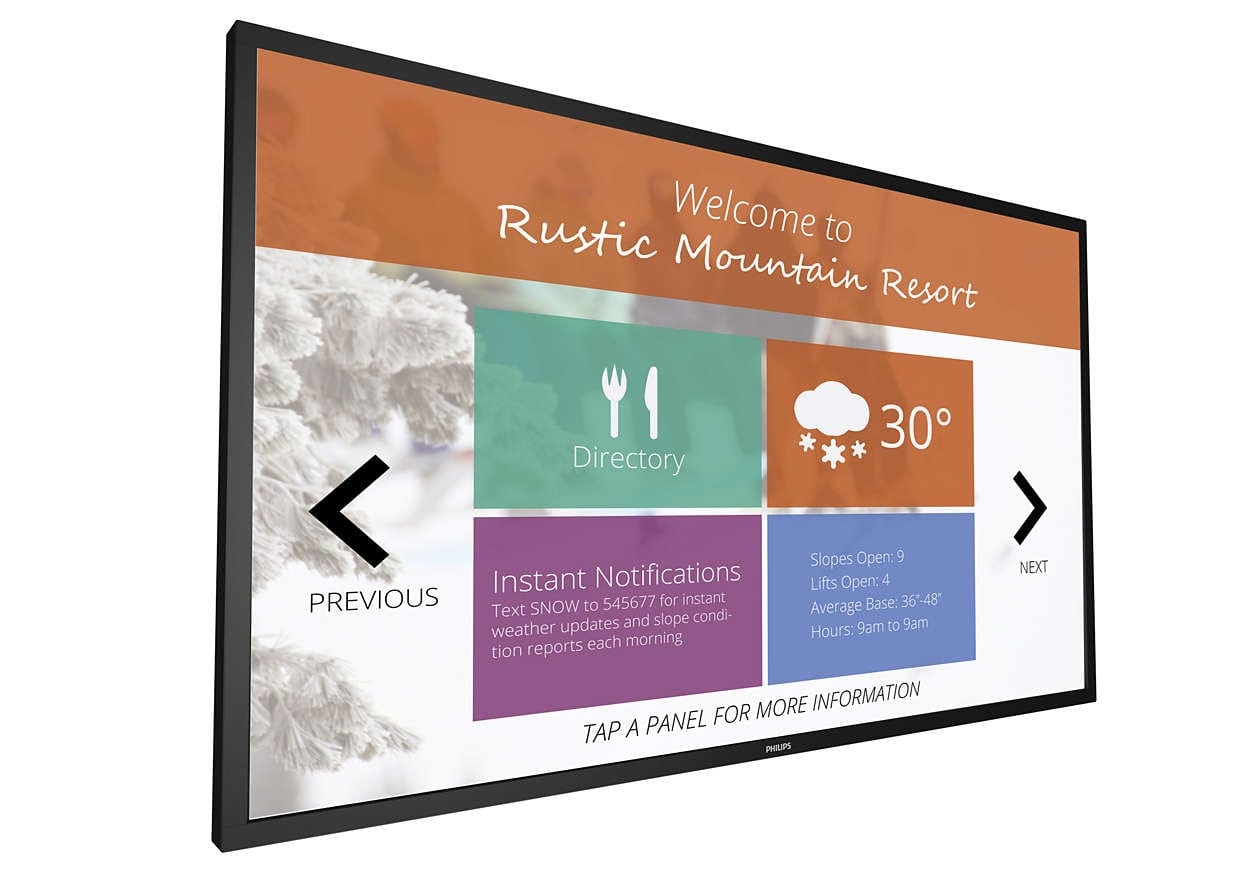

Deliver a higher level of interaction; with true multi-touch in 4K UHD; 75"; Multi-touch; Powered by Android
Display
Display diagonal
Size of the display for this product, measured diagonally, usually in inches.
189.2 cm (74.5")
Display resolution
The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
3840 x 2160 pixels
Display brightness
Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.
490 cd/m²
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
4K Ultra HD
Touchscreen
A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Touchscreen type
There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive.
Infrared
Touch technology
Technology of touch sensetive screen e.g. dual-touch.
Multi-touch
Number of simultaneous touchpoints
10
Native aspect ratio
The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
16:9
Response time
The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)
8 ms
Contrast ratio (typical)
The difference in light intensity between the brightest white and the darkest black.
1200:1
Contrast ratio (dynamic)
A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing.
500000:1
Viewing angle, horizontal
Maximum horizontal angle at which a display can be viewed with acceptable visual performance.
178°
Viewing angle, vertical
Maximum vertical angle at which a display can be viewed with acceptable visual performance.
178°
Display number of colours
1.073 billion colors
Pixel pitch
This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.
0.429 x 0.429 mm
Display diagonal (metric)
This is the size of the display screen, measured diagonally.
189.3 cm
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 768 (WXGA),1280 x 800 (WXGA),1360 x 768 (WXGA),1600 x 1200 (UXGA),1920 x 1080 (HD 1080),3840 x 2160
Supported video modes
The video modes that can be displayed by the device.
480i,480p,576i,576p,720p,1080i,1080p,2160p
Ports & interfaces
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
4
DVI port
Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
VGA (D-Sub) input ports
Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets.
2
USB port
The device features a socket into which a USB cable can be plugged.
USB ports quantity
6
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Composite video in
The socket (port) for the composite video input (white cable).
1
Audio (L/R) in
The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable).
Audio Left/Right
RS-232 interface
Audio
Built-in speaker(s)
The device contains speaker(s) to produce sound.
Number of built-in speakers
2
RMS rated power
RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.
30 W
Design
Design
The creation of a plan or convention for the construction of an object or a system.
Digital signage flat panel
Orientation
Horizontal
Product colour
The colour e.g. red, blue, green, black, white.
Black
VESA mounting
Panel mounting interface
The product can be used wih VESA mounting interfaces.
400 x 400 mm
Performance
Purpose
What the product is used for.
Universal
Picture-in-Picture
Picture-in-picture (PiP) is a feature of some television receivers and similar devices. One program (channel) is displayed on the full TV screen at the same time as one or more other programs are displayed in inset windows. Sound is usually from the main program only.
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
50000 h
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
350 W
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
0.5 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC input frequency
50 - 60 Hz
Computer system
Video formats supported
The type of video formats that can be used by this device.
3GP,ASF,AVI,DAT,FLV,MKV,MOV,MP4,MPG,TS,VOB
Audio formats supported
The audio formats which this device or software can read/use e.g. MP3, MP4.
AAC,M4A,MP3,WMA
Image formats supported
The type of image files that the device can use/display e.g. gif, JPEG (jpg).
BMP,JPEG,JPG,PNG
Weight & dimensions
Width
The measurement or extent of something from side to side.
1739.7 mm
Depth
The distance from the front to the back of something.
99 mm
Height
The measurement of the product from head to foot or from base to top.
1072.8 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
64.7 kg
Packaging content
Handheld remote control
Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Batteries included
Cables included
AC,HDMI,RS-232,USB,VGA
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Storage relative humidity (H-H)
10 - 90%
Operating altitude
0 - 3000 m
Certificates
Certification
CE, BSMI, CB, EPA, FCC, Class B
Technical details
Additional accessories
AC Power Cord
RS232 cable
USB cable
Remote Control
Batteries for remote control
Quick start guide
HDMI cable
VGA cable
Energy saving functions
Smart Power
I/O ports
An interface on a device to which you can connect another device.
OPS
USB power outlet (5 V. 2 amp)
USB(Type A) X4
USB(Type B) X2
OPS
USB power outlet (5 V. 2 amp)
USB (Type A) x4
USB (Type B) x2
Keyboard control
Hidden
Lockable
Picture enhancement
3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement
Regulatory Approvals
CE
BSMI
CB
EPA
FCC, Class B
Signal loop through
IR Loop through
Convenience enhancements
Carrying handles
Dimensions (W x D x H) (imperial)
1739.6 x 99.1 x 1072.9 mm (68.5 x 3.9 x 42.2")
Picture performance
Advanced colour control
Set depth (inch)
9.91 cm (3.9")
Set height (inch)
107.3 cm (42.2")
Set width (inch)
174 cm (68.5")
Surface treatment
Anti-Glare coating
USB playback audio formats
AAC
M4A
MP3
WMA
USB playback image
BMP
JPEG
JPG
PNG
USB playback video formats
3GP
ASF
AVI
DAT
FLV
MKV
MOV
MP4
MPG
TS
VOB
WMV3
Display resolution at frequency
Total number of pixels (horizontal and vertical) that can be displayed at a frequency
3840 x 2160 @ 60 Hz
3840 x 2160 @ 60Hz
Weight (imperial)
142.64
Internal memory
The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.
8 GB eMMC
8GB eMMC
Other features
User memory
8 GB
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Aspect ratio
The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV.
16:9
Audio output
The type of audio output that the device produces, and the connector(s).
SPDIF
Display technology
The technology used in the display e.g. plasma, LED.
IPS
Mounting
What size the mounting head of the product is, to couple it with a camera.
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
