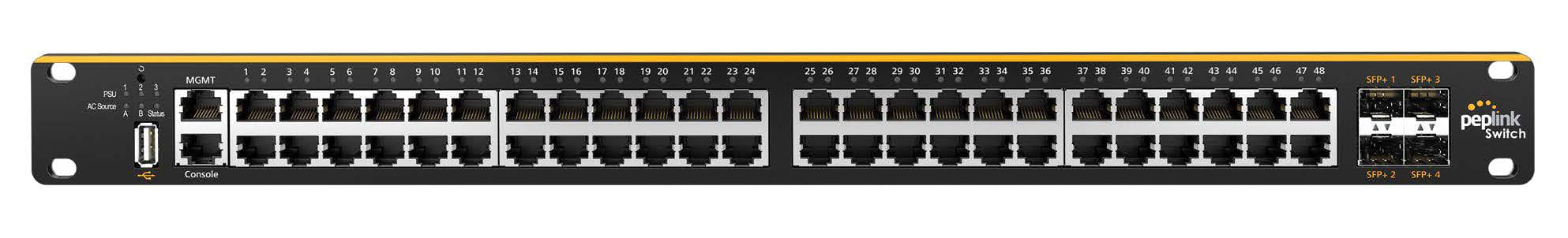

Peplink SD Switch Enterprise, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
Enterprise-Grade PoE+ Switch with Cloud Intelligence
Scalable LAN Management
Effortlessly manage hundreds of SD-Switches and Peplink Routers. The InControl 2 cloud management platform makes it possible:
- Monitor: Port status, connectivity, firmware version.
- Troubleshoot: See all clients, search by MAC address.
- Configure: Centralize VLAN, firmware, and configurations.
Uninterrupted Power
The SD-Switch Enterprise has redundant power supplies. So even if one PSU stops working, the
SD-Switch Enterprise will keep connecting your network
No Connection? No Problem.
With Out-Of-Band management, simply plug in a USB dongle to remotely access your SD-Switch. Remotely access the web admin using InControl 2.
Scalable LAN Management
Effortlessly manage hundreds of SD-Switches and Peplink Routers. The InControl 2 cloud management platform makes it possible:
- Monitor: Port status, connectivity, firmware version.
- Troubleshoot: See all clients, search by MAC address.
- Configure: Centralize VLAN, firmware, and configurations.
Uninterrupted Power
The SD-Switch Enterprise has redundant power supplies. So even if one PSU stops working, the
SD-Switch Enterprise will keep connecting your network
No Connection? No Problem.
With Out-Of-Band management, simply plug in a USB dongle to remotely access your SD-Switch. Remotely access the web admin using InControl 2.
| Management features | |
| Web-based management Using a website/web application to manage something. |
 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 48 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device. | 4 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3at |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 176 Gbit/s |
| Forwarding rate | 131 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 32000 entries |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Reset button |
|
| LED indicators |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC/PoE |
| Power supply included There is a power supply with this product. |
|
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| Number of power supply units | 3 |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 100 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 800 W |
| Other features | |
| Warranty period | 1 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | -32 - 104 °F |
| Operating relative humidity (H-H) | 15 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 485 mm |
| Depth The distance from the front to the back of something. | 265 mm |
| Height The measurement of the product from head to foot or from base to top. | 45 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7 kg |
| Packaging content | |
| Cables included | Power |
| Rack mount kit |
|
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certification | EN 61000: Electromagnetic Compatibility |
| SKU | 769532 |
| MPN | PSW-48-800W |
| Brand | Peplink |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.peplink.com/ |
