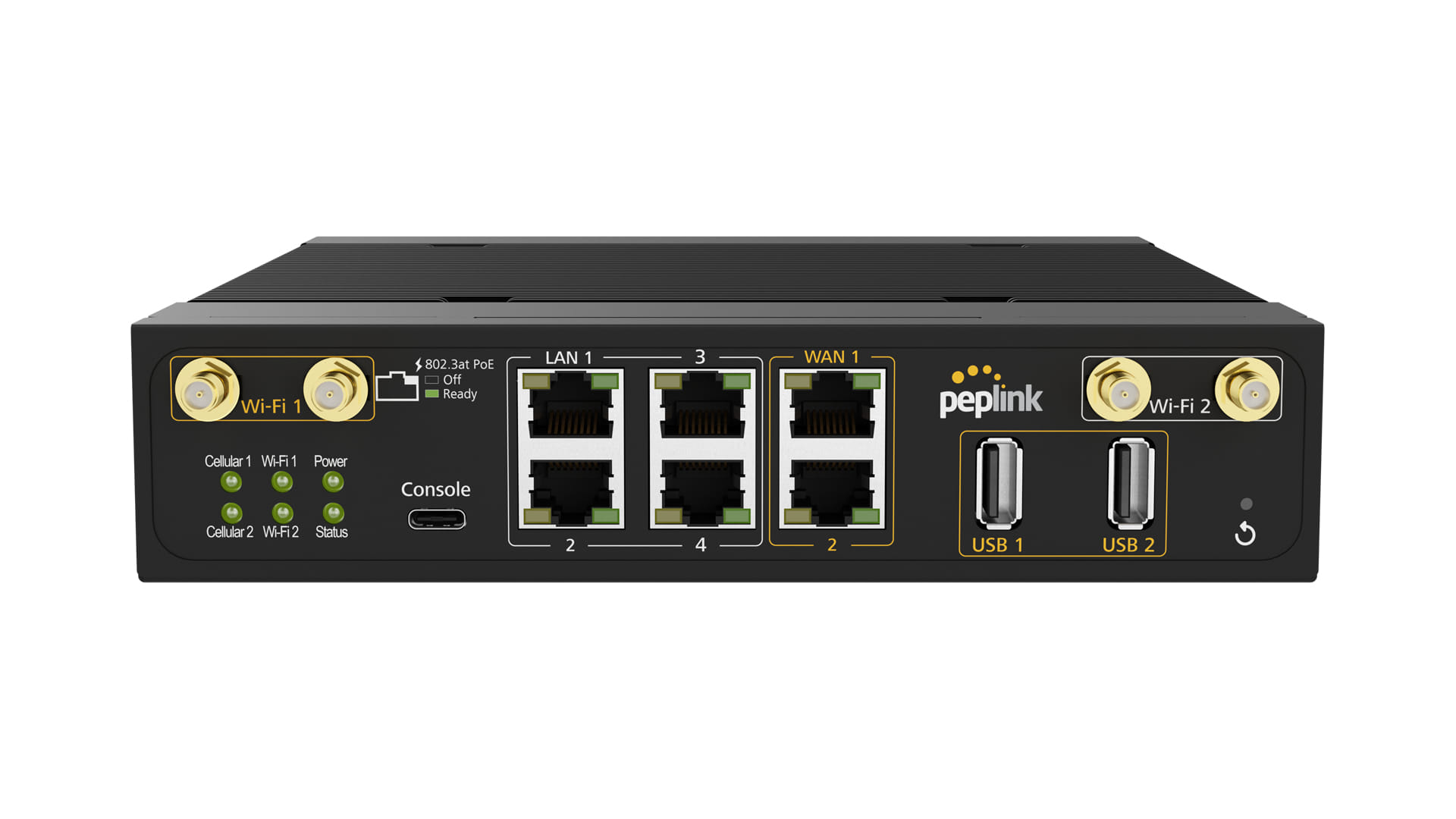

Peplink MBX Mini Dual 5G Tabletop Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility
WAN connection type	RJ-45/SIM/USB

Wireless LAN features
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1166 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s

Mobile network
Mobile network generation	5G
5G standard	Sub6

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	4
USB port The device features a socket into which a USB cable can be plugged.
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	2

Management features
MIMO

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	256-bit AES

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Product type The sub-category of the product.	Tabletop router

Packaging content
AC adapter included
Antenna included An antenna (aerial) is built into the product or comes with it.

Antenna
Antenna design	External
Antenna connector type The way in which the antenna is connected to the device e.g. coaxial.	RP-SMA
Detachable antenna(s)

Power
Power source type What the power source is.	AC
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
Output voltage	12 V

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-40 - 65 °C
Operating relative humidity (H-H)	15 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	204.5 mm
Depth The distance from the front to the back of something.	186 mm
Height The measurement of the product from head to foot or from base to top.	41 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.9 kg

Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
