With 4 cellular channels, the Mobility 40G is a powerhouse capable of delivering high bandwidth and solid reliability under heavy use. Equipped with high gain LNA, the GPS receiver has improved location tracking.

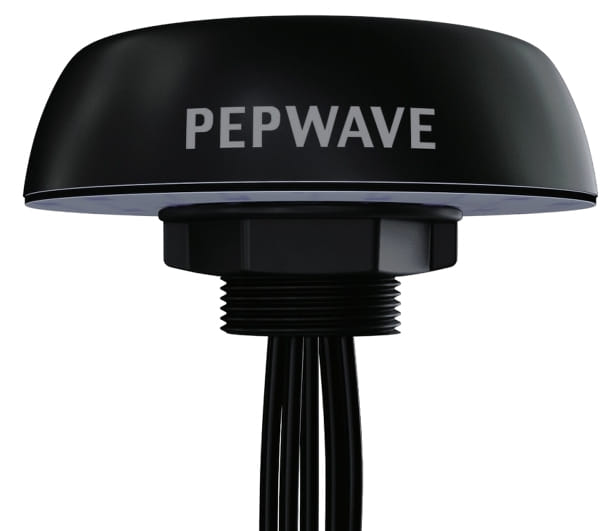

The Peplink Mobility 40G is a 5G ready multi-band antenna built for land-based mobile applications. It supports 4x4 MIMO for high bandwidth and solid reliability. It is also 5G ready and supports a wide range of global cellular frequencies. The GPS receiver is equipped with high gain LNA, making it ideal for location tracking. The Mobility 40G has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments. For easier installation, the antenna comes with different cable length options, available in SMA, QMA or N-type.
The Peplink Mobility 40G is a 5G ready multi-band antenna built for land-based mobile applications. It supports 4x4 MIMO for high bandwidth and solid reliability. It is also 5G ready and supports a wide range of global cellular frequencies. The GPS receiver is equipped with high gain LNA, making it ideal for location tracking. The Mobility 40G has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments. For easier installation, the antenna comes with different cable length options, available in SMA, QMA or N-type.
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 0.617 - 6 GHz |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 50 Ω |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 7 dBi |
| LNA gain | 28 dB |
| GPS frequency | 1561 - 1602 MHz |
| Noise figure | 1.5 dB |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | MIMO directional antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | SMA |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male |
| Polarization | Linear polarization |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP68 |
| Ultraviolet (UV) resistant |
 |
| Survival wind speed | 220 km/h |
| Power handling | 10 W |
| Cable length How long the cable is. | 2 m |
| Cable type Type of cable e.g. electicity cable, optical cable. | CFD-200 |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Wall/Pole |
| Power | |
| Power consumption | 8.5 mA |
| Certificates | |
| Compliance certificates | REACH, RoHS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 80 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 80 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 130 mm |
| Depth The distance from the front to the back of something. | 130 mm |
| Height The measurement of the product from head to foot or from base to top. | 36 mm |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 13 cm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 226 mm |
| Package depth The distance from the front to the back of the packaging. | 215 mm |
| Package height The distance from the top to the bottom of the packaging. | 109 mm |
| Mobile network | |
| 4G standard | LTE |
| 5G bands supported | 600,700,800,850,900,1400,1500,1600,1700,1800,1900,2000,2100,2300,2400,2500,2600,2800,3500,5200 MHz |
| 4G bands supported | 700,800,900,1700,1800,1900,2000,2100,2500 MHz |
| Packaging content | |
| Mounting kit |
|
| Mounting brackets included |
|
| SKU | 769451 |
| MPN | ANT-MB-40G-S-B-6 |
| Brand | Peplink |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.peplink.com/ |
