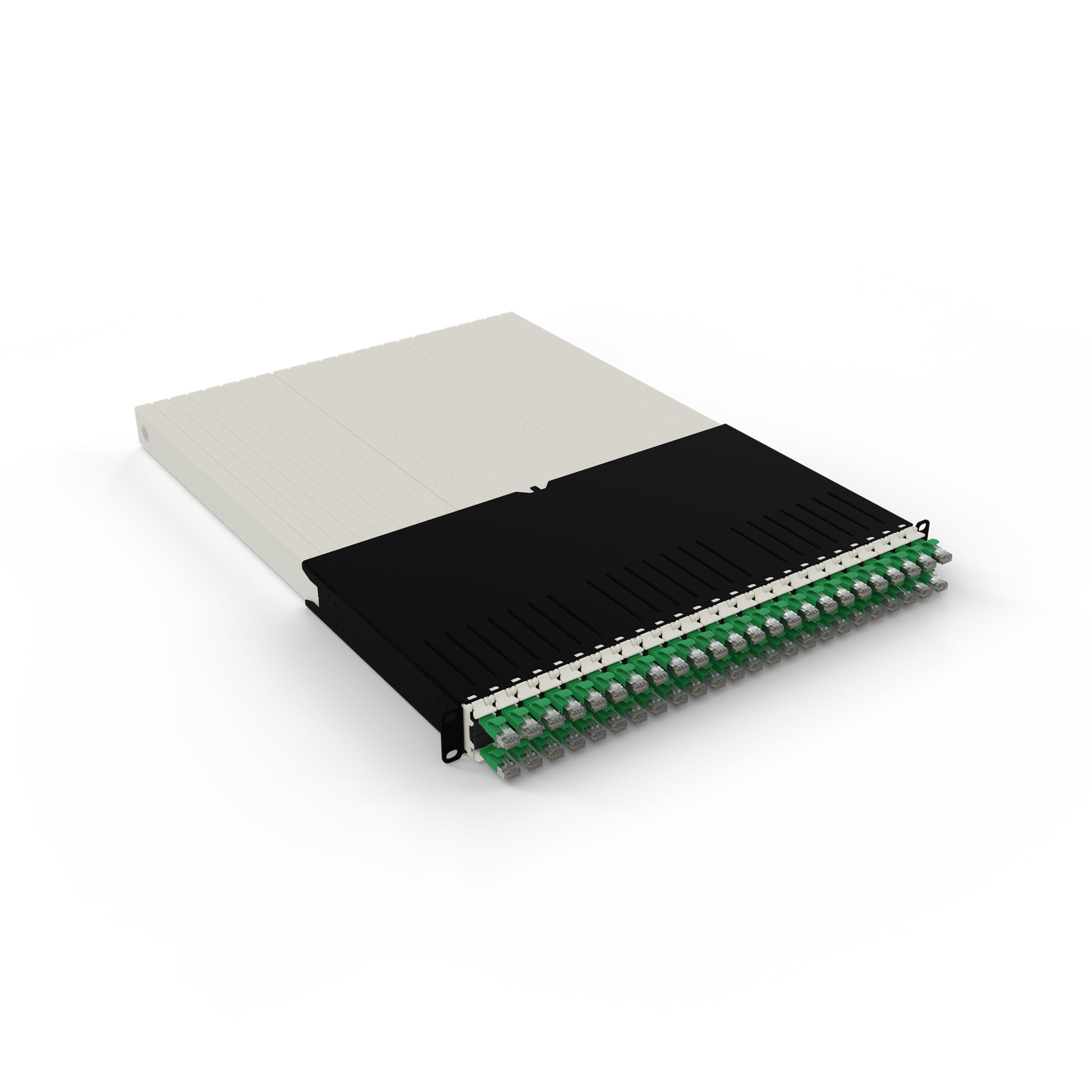

PATCHBOX .one / 30RU / STP / Green, 1.8 m, Cat6a, U/FTP (STP), RJ-45, RJ-45, Green
The Ultimate Cable Management Solution
The patchbox.one with its retractable Cat.6a cables is the ultimate solution for keeping your network rack forever organized, efficient, and future-proof. It is equipped with super-flexible twisted pair cables that are retractable, lighter and easier to handle.
Say Goodbye to Cable Chaos
With 24 retractable cables neatly stored inside modular cassettes, your rack stays tidy, reducing clutter and improving airflow.
Up to 50% More Usable Rack Space
By storing excess cable length where it doesn't bother you and removing conventional cable managers, patchbox.one frees up precious rack space.
10x Faster Installation & Troubleshooting
Every cable retracts to your desired length-no measuring, no zip ties. IT Technicians can work significantly faster and more accurately and downtimes can be reduced by up to 90%.
High-Speed, PoE-Ready Performance
Cat.6a cables meet ISO/IEC 11801 Class Ea standards and support PoE (STP) and PoE++ (UTP), ready to power your devices.
Color-Code for Instant Overview
Choose from 8 different cable colors-ideal for cable-coding your rack setup.
Optimized for Your Rack Size
While our 8RU version includes 0.8m cables for compact racks, the 30RU version comes with 1.8m cables, ideal for full-height network cabinets.
Modular and Customizable
Cassettes can be replaced or rearranged in seconds-adapt to your changing infrastructure without starting over.
Built to Last, Backed by Warranty
patchbox.one and all cables come with a 10-Year Warranty, delivering reliability you can trust in mission-critical environments.
The patchbox.one with its retractable Cat.6a cables is the ultimate solution for keeping your network rack forever organized, efficient, and future-proof. It is equipped with super-flexible twisted pair cables that are retractable, lighter and easier to handle.
Say Goodbye to Cable Chaos
With 24 retractable cables neatly stored inside modular cassettes, your rack stays tidy, reducing clutter and improving airflow.
Up to 50% More Usable Rack Space
By storing excess cable length where it doesn't bother you and removing conventional cable managers, patchbox.one frees up precious rack space.
10x Faster Installation & Troubleshooting
Every cable retracts to your desired length-no measuring, no zip ties. IT Technicians can work significantly faster and more accurately and downtimes can be reduced by up to 90%.
High-Speed, PoE-Ready Performance
Cat.6a cables meet ISO/IEC 11801 Class Ea standards and support PoE (STP) and PoE++ (UTP), ready to power your devices.
Color-Code for Instant Overview
Choose from 8 different cable colors-ideal for cable-coding your rack setup.
Optimized for Your Rack Size
While our 8RU version includes 0.8m cables for compact racks, the 30RU version comes with 1.8m cables, ideal for full-height network cabinets.
Modular and Customizable
Cassettes can be replaced or rearranged in seconds-adapt to your changing infrastructure without starting over.
Built to Last, Backed by Warranty
patchbox.one and all cables come with a 10-Year Warranty, delivering reliability you can trust in mission-critical environments.
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Green |
| Cable length How long the cable is. | 1.8 m |
| Cable standard The category of the cable, which is determined by performance characteristics and test requirements. | Cat6a |
| Cable shielding The protective layer for the cable, typically made of plastic. | U/FTP (STP) |
| Connector 1 This is the first connector in the device. | RJ-45 |
| Connector 2 This is the second connector in the device. | RJ-45 |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shape | Flat |
| Conductor material | Copper |
| AWG wire size | 36 |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 10000 Mbit/s |
| Bend radius (min) | 1.2 cm |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Power over Ethernet (PoE) type supported | Active PoE |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Hungary |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Certification | ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 482 mm |
| Depth The distance from the front to the back of something. | 600 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7.08 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging content | 24 x patchbox.one / Cassette / 30RU / STP / Green 1 x patchbox.one / Frame 4 x Flanges 4 x Hex nuts 6 x Patchcatch 2 x Mounting rails |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 799 mm |
| Package depth The distance from the front to the back of the packaging. | 587 mm |
| Package height The distance from the top to the bottom of the packaging. | 55 mm |
| Package weight Weight of the packaged product. | 8.56 kg |
| Other features | |
| Cables included | LAN (RJ-45) |
| SKU | 818742 |
| MPN | PONE30STPGR |
| Brand | Patchbox |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://patchbox.com/ |
