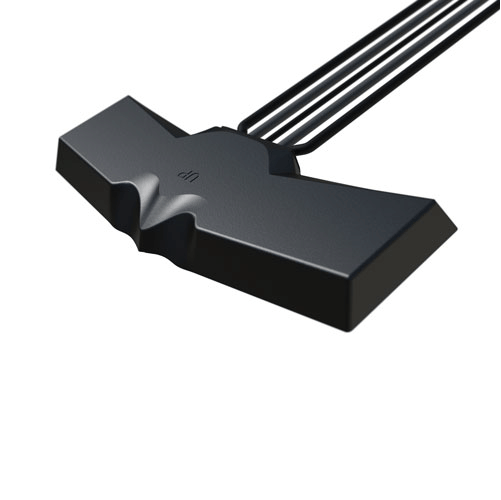

The Panorama BATG range is designed for Telematics applications requiring high-speed data with MiMo 4G / 5G and fall-back 3G/2G support along with optional positioning through GPS/GNSS, and optional dual-band 2.4/5.0-7.2GHz WiFi 6e.
The isolated dual 4G/5G antennas cover 617-960/1710-6000MHz and the efficient element design ensures a high first-time connection rate and an ongoing, robust communications link even in many low coverage areas.
FEATURES
The antenna is designed to be mounted on or under a vehicle dashboard but can be mounted on any non-conductive surface.
The BAT range is supplied with low loss cables which are flame retardant and meet the requirements of UN ECE 118 and EN45545-2
PRODUCT VARIANT
| Part Number | CELL | GPS/GNSS | WiFi |
| BATGM-7-60-24-58 | 2x SMA Plug (m) | SMA Plug (m) | 2x REV Pol SMA Plug (f) |
| SKU | 661668 |
| MPN | BATGM-7-60-24-58 |
| Brand | Panorama |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.panorama-antennas.com/ |
