The benefits of the Panorama B4BE-6-60 4G-5G Bracket Mount Antenna include it is a low cost and easy to install. The antenna overs all cellular frequencies.
PRODUCT VARIANT
| Part Number | Cable | Connector |
| B4BE-6-60-SP | 2m CS29 | SMA Plug (m) |
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

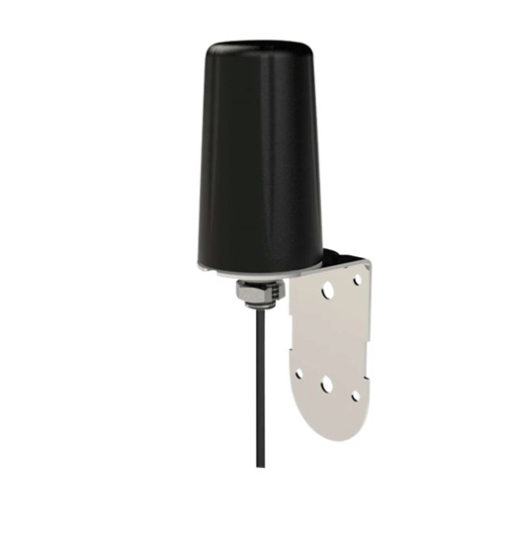

The Panorama B4BE is a robust bracket mount antenna for LTE, M2M, and IoT applications. This antenna is designed for wall or mast mounting and is weatherproof which allows the device to reap the benefits of an antenna mounted in an elevated or external location where the signal is strongest.
FEATURES:
- Ultra-wideband Frequency Coverage
- Future Proof Antenna Solution Supporting all 4G/5G LTE bands worldwide
- 5dBi Peak Gain Performance
- Integrated Low Loss Cable
- UV Stable & IP Rated
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 1.71 - 6 GHz |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 5 dBi |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Omni-directional antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | SMA |
| Voltage Standing Wave Ratio (VSWR) | 2.5:1 |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Cable length How long the cable is. | 5 m |
| Cable type Type of cable e.g. electicity cable, optical cable. | CS29 |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Wall/Pole |
| Purpose What the product is used for. | Outdoor |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 30 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 80 °C |
| Weight & dimensions | |
| Height The measurement of the product from head to foot or from base to top. | 164 mm |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 4.8 cm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| SKU | 663012 |
| MPN | ANT-PA-00010 |
| Brand | Panorama |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.panorama-antennas.com/ |
