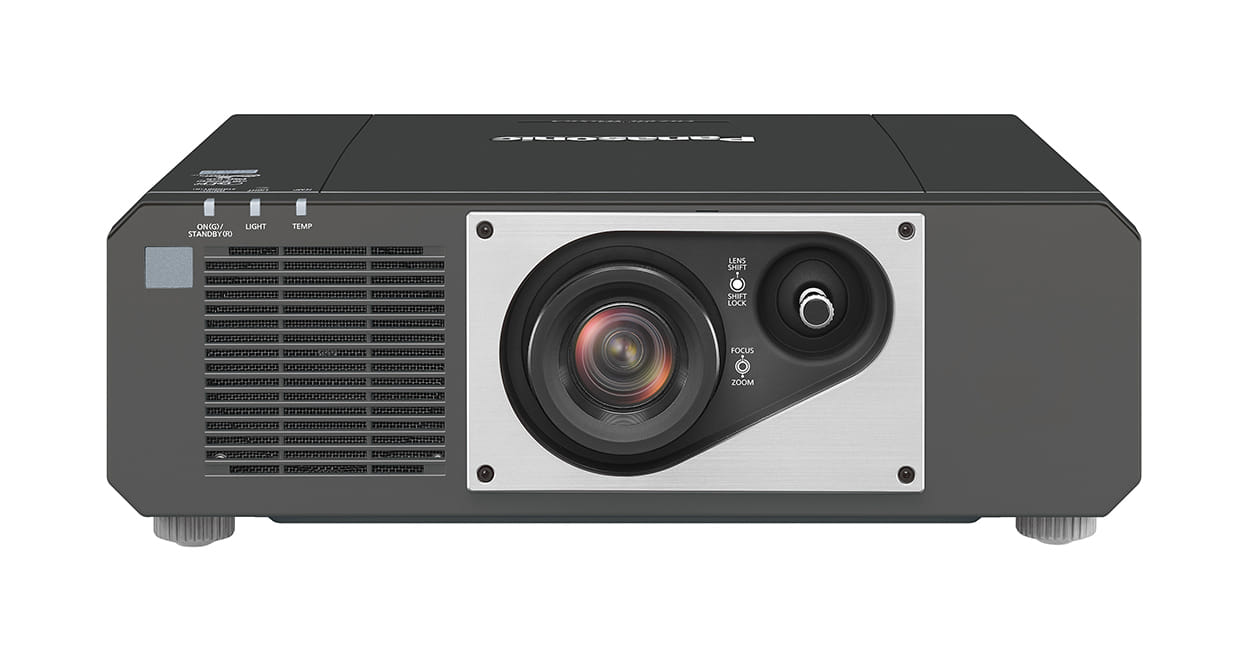

Panasonic WUXGA Solid Shine Laser Projector - Black
Payment options
- Unavailable for shipping
- This product is not currently available for purchase
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Panasonic PT-FRZ60 pumps out bright and sharp 1920x1200 resolution images at an aspect ratio of 1610. The projector is in a completely solid state and will never require a lamp replacement. The light from its bank of blue diode lasers goes through a phosphor wheel and a colour separation wheel to create beams of yellow blue green and red light that are bounced off of the imaging chip and on to the output lens. Panasonics Failover Circuitry takes advantage of the projectors multi-diode laser architecture assuring that should one fail the remaining diodes keep working and help maintain high brightness.
Overall the PT-FRZ60s specifications stand out with a impressive rated output of 6000 ISO21118 lumens essentially equivalent to ANSI lumens or 6200 centre lumens. Its rated contrast ratio is 200001. In real-world use it actually put out a lot more light
The projector is able to work with up to 4K video signals at up to 60 frames a second which it accepts via its HDCP 2.3-compliant HDMI and DIGITAL LINK HDBaseT ports and displays at its WUXGA native resolution. The connection panel features two HDMI inputs in total plus two VGA and a composite video input. The PT-FRZ60 is also one of the rare commercial projectors offering the option of HDMI-CEC control via its HDMI ports. There are 3.5mm and RCA audio-in jacks and a 3.5 mm audio-out; the projector lacks any internal speakers. In addition to a RS-232 serial port the PT-FRZ60 has a Type A USB 5 volt/2-amp plug to power an accessory though the USB doesnt support any internal media player to display content from a thumb drive or work with a mouse for streamlining navigation of the projectors menu.
| Projector | |
| Screen size compatibility The different screen sizes which the device can work with. | 1016 - 7620 mm (40 - 300") |
| Projector brightness | 6000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 20000:1 |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:10 |
| Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Lens system | |
| Focus | Manual |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 21.5 - 43 mm |
| Zoom capability The amount that the camera lens can zoom. |
 |
| Throw ratio | 1.46 – 2.94:1 |
| Horizontal lens shift range | -27 - 34% |
| Vertical lens shift range | -44 - 64% |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio (L/R) in The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable). | 2 |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 1 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 2 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| Component video (YPbPr/YCbCr) in The number of sockets (ports) for RF (radio frequency) connections into the product. | 1 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Features | |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 30 dB |
| Multimedia | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Design | |
| Market positioning Under which category can the device be positioned in the market, e.g. camera phone. | Portable |
| Product type The sub-category of the product. | Large venue projector |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Placement Where the product can be placed e.g. floor, wall. | Desktop |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 540 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 498 mm |
| Depth The distance from the front to the back of something. | 492 mm |
| Height The measurement of the product from head to foot or from base to top. | 168 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 16.1 kg |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| SKU | 687323 |
| MPN | PT-FRZ60B |
| Brand | Panasonic |
| Product Condition | Brand New/Unused |
| Product Use | General |
