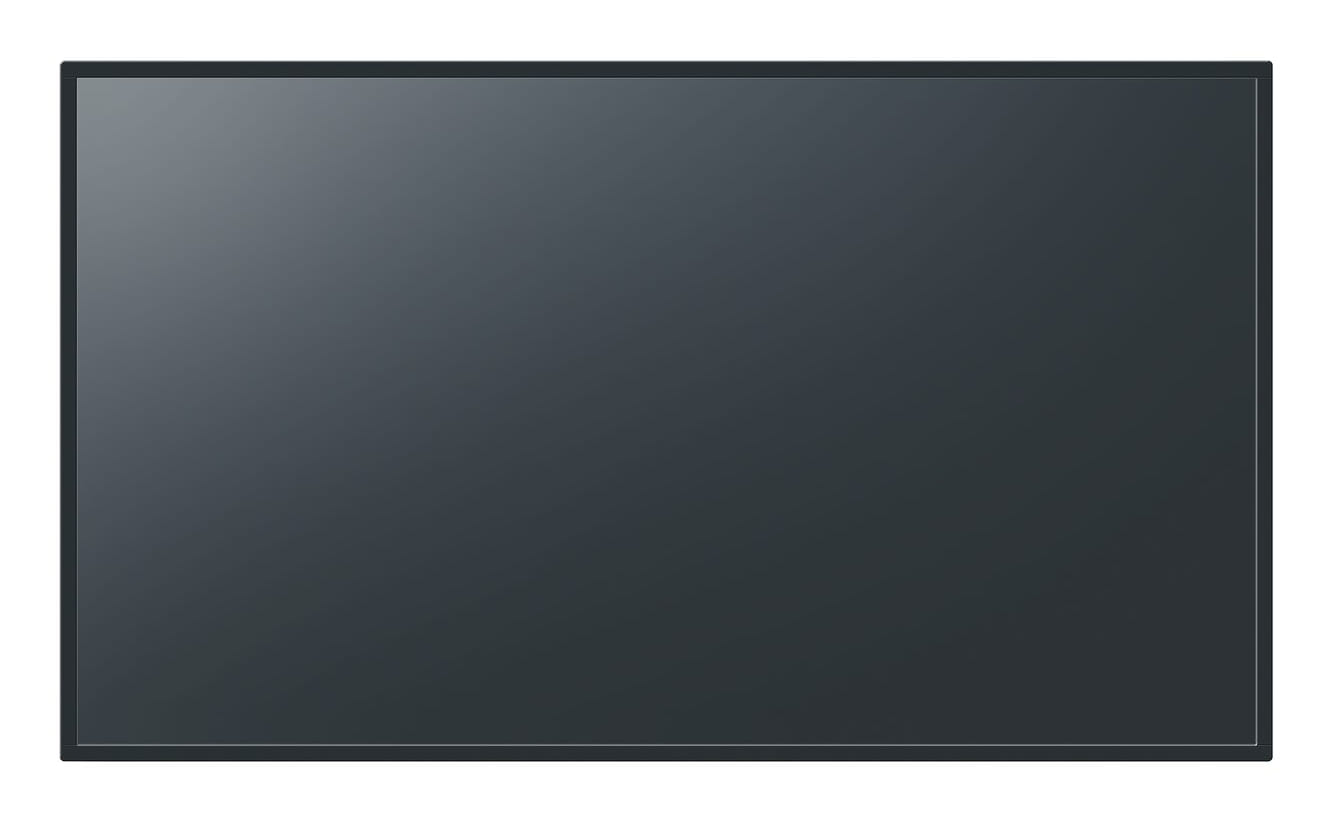

Panasonic TH-43EQ2W, Digital signage flat panel, 108 cm (42.5"), LED, 3840 x 2160 pixels, 18/7
43" Professional 4K display ideal for business and education applications
Display
Panel type
ADS
LED backlight
A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display.
LED backlighting type
Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit.
Direct-LED
Display diagonal
Size of the display for this product, measured diagonally, usually in inches.
108 cm (42.5")
Display technology
The technology used in the display e.g. plasma, LED.
LED
Display resolution
The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
3840 x 2160 pixels
Display brightness
Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.
500 cd/m²
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
4K Ultra HD
Native aspect ratio
The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
16:9
Response time
The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)
8 ms
Contrast ratio (typical)
The difference in light intensity between the brightest white and the darkest black.
1200:1
Contrast ratio (dynamic)
A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing.
50000:1
Viewing angle, horizontal
Maximum horizontal angle at which a display can be viewed with acceptable visual performance.
178°
Viewing angle, vertical
Maximum vertical angle at which a display can be viewed with acceptable visual performance.
178°
Display number of colours
1.06 billion colours
Active display area (W x H)
941.1 x 529.4 mm
Display diagonal (metric)
This is the size of the display screen, measured diagonally.
107.9 cm
Panel life
The length of time that the panel can be used for.
50000 h
Haze rate
25%
Ports & interfaces
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
3
HDMI input ports quantity
3
VGA (D-Sub) input ports
Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets.
1
USB port
The device features a socket into which a USB cable can be plugged.
USB ports quantity
3
USB version
Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.
2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type
The type of USB connector/port that this product has.
USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
1
USB Power Delivery (USB PD)
USB Power Delivery up to
60 W
USB Type-C DisplayPort Alternate Mode
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100 Mbit/s
Audio (L/R) in
The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable).
1
RS-232C
SDM module slot
Audio
Built-in speaker(s)
The device contains speaker(s) to produce sound.
Number of built-in speakers
2
RMS rated power
RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.
20 W
Design
Product design
The creation of a plan or convention for the construction of an object or a system.
Digital signage flat panel
Placement supported
Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.
Indoor
Orientation
Horizontal/Vertical
Product colour
The colour e.g. red, blue, green, black, white.
Black
Screen shape
Flat
VESA mounting
Panel mounting interface
The product can be used wih VESA mounting interfaces.
200 x 200 mm
Bezel width (bottom)
1.39 cm
Bezel width (side)
1.39 cm
Bezel width (top)
1.39 cm
Anti-glare screen
Always gives an optimal view, even in direct sunlight.
Performance
Purpose
What the product is used for.
Universal
Operating hours (hours/days)
18/7
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
HDCP version
2.2
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
225 W
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
116 kWh
AC input voltage
The voltage of the AC electricity that is inputted into the product.
110 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Weight & dimensions
Display width
973 mm
Display depth
65 mm
Display height
562 mm
Display weight
11.7 kg
Packaging data
Package width
The distance from one side of the packaging to the other.
1070 mm
Package depth
The distance from the front to the back of the packaging.
141 mm
Package height
The distance from the top to the bottom of the packaging.
673 mm
Package weight
Weight of the packaged product.
16 kg
Packaging content
Tilt angle
20°
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Operating altitude
0 - 2800 m
Features
Base colour
Black
Base material
Metal
Wall mountable
The product can be mounted on (attached to ) a wall.
Technical details
Audio out (mini jack)
1
Other features
Mini VGA (D-Sub) input ports
1
Audio output
The type of audio output that the device produces, and the connector(s).
