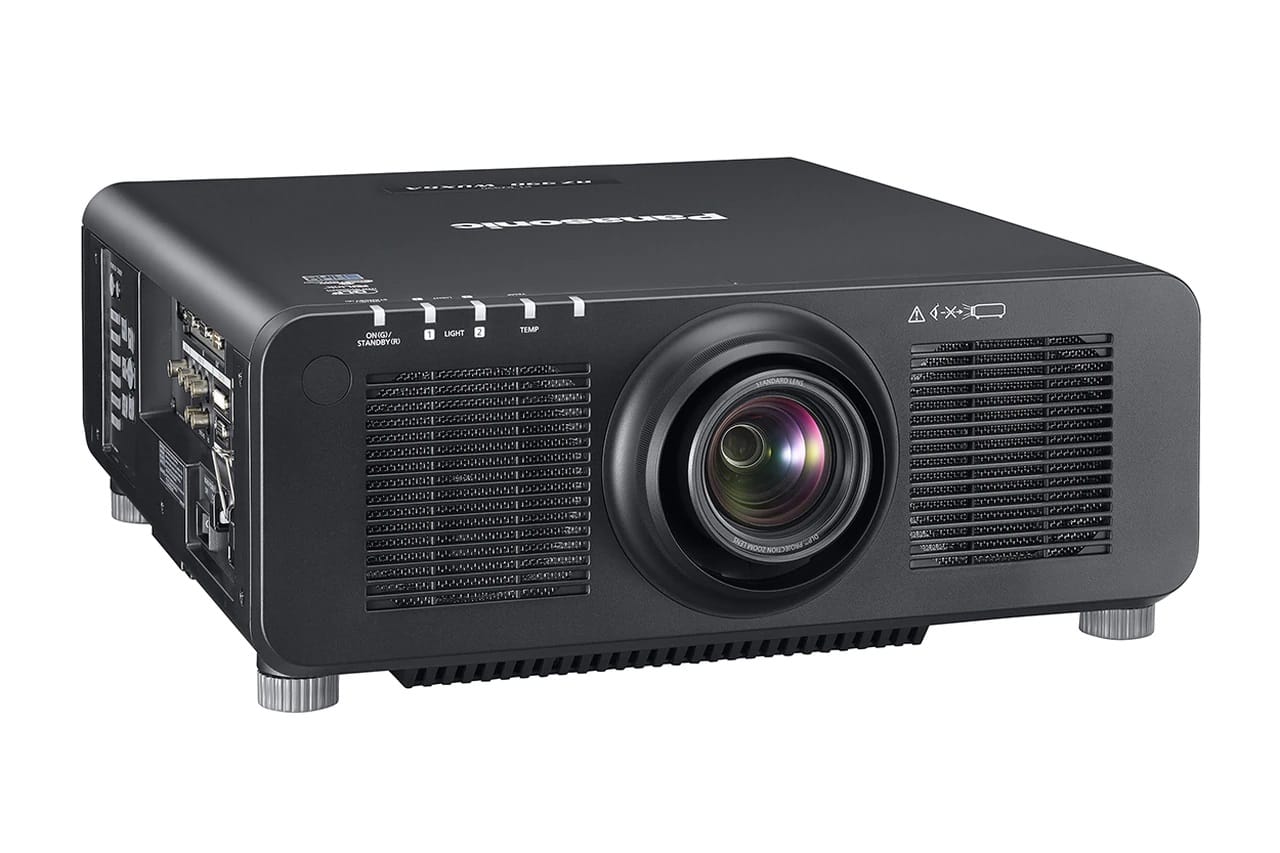

Panasonic RZ990 1-Chip DLP 9400 Lumens WUXGA Laser Projector - Black

Projector
Supported aspect ratios The aspect ratio is the ratio of the width of an image to its height. The supported aspect ratios are the aspect ratios that can be shown by the device.	16:10
Screen size compatibility The different screen sizes which the device can work with.	1270 - 15240 mm (50 - 600")
Projector brightness	9400 ANSI lumens
Projection technology	DLP
Projector native resolution	WUXGA (1920x1200)
Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black.	10000:1
Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.	16:10
Keystone correction, horizontal	-15 - 15°
Keystone correction, vertical	-40 - 40°
Matrix size	1.7 cm (0.67")

Light source
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	24000 h

Lens system
Focus	Auto
Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).	25.6 - 35.7 mm
Aperture range (F-F) Aperture range of the device's optics, expressed in f-stops.	1.7 - 1.9
Zoom capability The amount that the camera lens can zoom.
Throw ratio	1.71–2.41:1
Horizontal lens shift range	-10 - 30%
Vertical lens shift range	-16 - 50%

Video
Full HD Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.

Ports & interfaces
HDBaseT port
Serial interface type	RS-232C
VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.	1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
BNC input ports Ports (sockets) to connect BNC inputs. The BNC connector (Bayonet Neill–Concelman) is a miniature quick connect/disconnect RF connector used for coaxial cable.	6
DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100 Mbit/s
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Storage
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.

Features
HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Projection modes	Ceiling, Front, Rear
Noise level The amplitude level of the undesired background noise, usually measured in decibels (db).	41 dB

Design
Product type The sub-category of the product.	Standard throw projector
Product colour The colour e.g. red, blue, green, black, white.	Black
Housing material What the casing of the product is made of.	Plastic
Placement Where the product can be placed e.g. floor, wall.	Ceiling, Floor

Display
Built-in display A display which is part of the product, so you do not need to attach another display.

Power
Power source What is providing power for the product e.g. mains electricity.	AC
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	920 W
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 45 °C
Operating relative humidity (H-H)	10 - 80%

Weight & dimensions
Width The measurement or extent of something from side to side.	498 mm
Depth The distance from the front to the back of something.	581 mm
Height The measurement of the product from head to foot or from base to top.	200 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	23.1 kg

Packaging content
Cables included	AC
Manual

Logistics data
Quantity per pack	1 pc(s)
