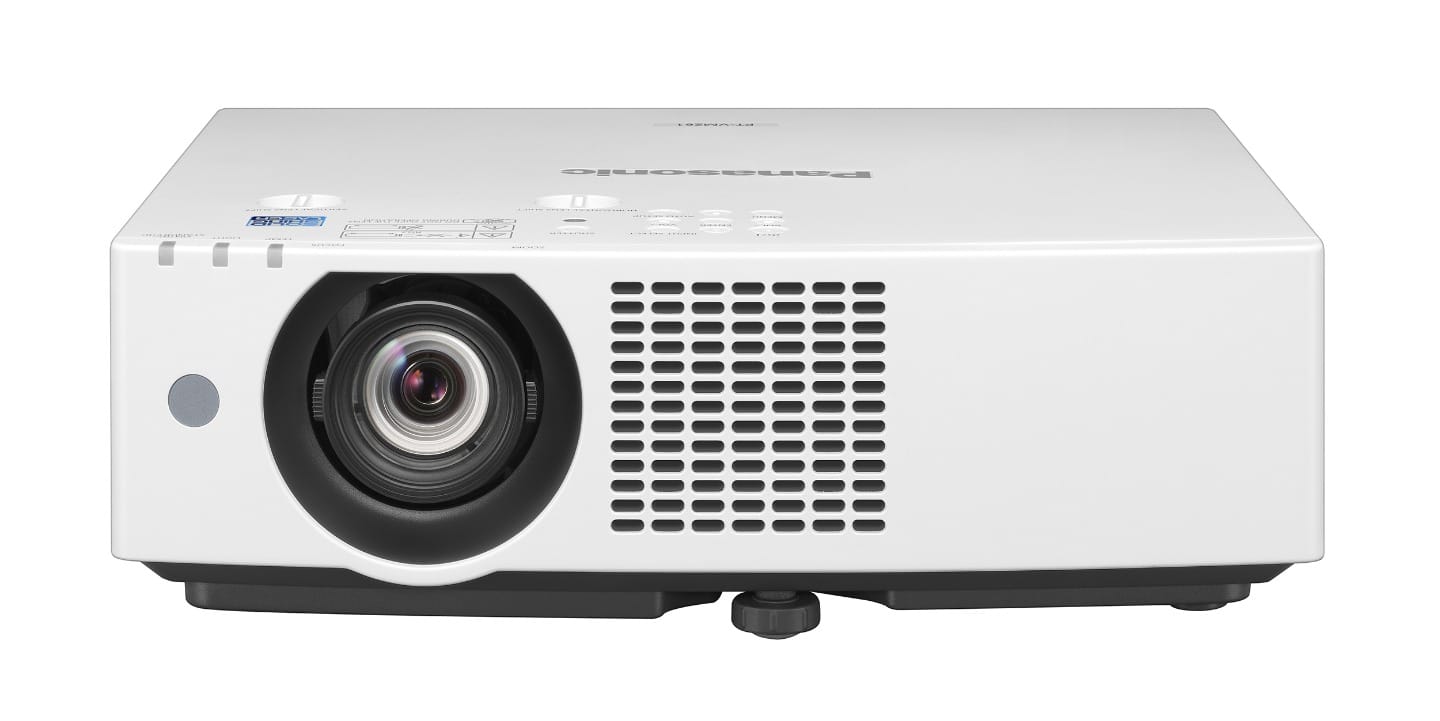

Panasonic PT-VMZ61 3200 Lumens WUXGA LCD Laser Projector - White
Item No:
638225
MPN:
PT-VMZ61
$5,726.36
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
PT-VMZ61 6200LM LCD WUXGA LASER 3000000:1 CONTRAST STD LENS INCLUDED WHITE
Panasonic PT-VMZ61 Laser Projector
The PT-VMZ61 from Panasonic is the evolution of the already successful VMZ60. It retains the small chassis perfect for portable use and for an unobtrusive finish when installed. Although it weighs in at a mere 6.9kg it pumps out a massive 6200 ANSI lumens making it a prime candidate for bright rooms or large venue use. It comes with both lens shift and keystone correction so can be installed off centre quite easily. With a Digital link receiver inbuilt it can be used with HDBaseT transmitters for long distance installations making long cabling runs simple with cheap Cat6 cable. With a 360 degree installation flexibility it can be used for edgy portrait projection and can even shine down onto the floor for advertising or signage.
Vivid Images in Bright Environments
SOLID SHINE Laser phosphor drive with advanced LCD optical engine projects bright vivid and detailed images regardless of artificial light levels in the room. Text is finely resolved while graphics and video retain high color saturation and contrast for immersive viewing.
High Brightness from a Compact Body
Deploy up to 6000 lm of brightness from a projector weighing just 7.2 kg 15.87 lbs currently the smallest and lightest LCD laser projector series in the world1. High brilliance makes pictures pop even under the glare of interior lights making projection more engaging than ever.
High Contrast
High-precision digital laser light output modulation achieves 3000000:1 dynamic contrast while minimizing power consumption. High-contrast performance adds depth dimensionality and realism to video defining details in shadows even when bright and dark scenes frequently interchange.
| Projector | |
| Smart projector |
 |
| Screen size compatibility The different screen sizes which the device can work with. | 762 - 7620 mm (30 - 300") |
| Projector brightness | 6200 ANSI lumens |
| Projection technology | LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 3000000:1 |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:10 |
| Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Lens system | |
| Focus | Manual |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 15.3 - 24.64 mm |
| Aperture range (F-F) Aperture range of the device's optics, expressed in f-stops. | 1.6 - 2.12 |
| Zoom capability The amount that the camera lens can zoom. |
 |
| Zoom ratio Measures how much the camera can adjust its focus for distance shots. A 3x zoom ratio changes the camera's focal length by a factor of three, from 35 mm to 105 mm for example. | 1.6:1 |
| Throw ratio | 1.09 - 1.77:1 |
| Horizontal lens shift range | -20 - 20% |
| Vertical lens shift range | 0 - 44% |
| Video | |
| Full HD Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection. |
|
| 3D The device can be used with 3D technology. |
|
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Audio (L/R) in The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable). | 2 |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 1 |
| Serial interface type | RS-232C |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 2 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
|
| Network | |
| Smart TV Smart TV features access to a large number of channels that offer TV programs, movies, and music without the need to connect a TV antenna or subscribe to a cable/satellite service. Some smart TVs provide web browsing, gaming, and access to compatible media content stored on computers. |
|
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Storage | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Features | |
| Interactive |
|
| Noise level (standby) | 26 dB |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 36 dB |
| Multimedia | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 10 W |
| Design | |
| Market positioning Under which category can the device be positioned in the market, e.g. camera phone. | Presentation |
| Product type The sub-category of the product. | Standard throw projector |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Plastic |
| Placement Where the product can be placed e.g. floor, wall. | Ceiling, Floor |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 335 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.5 W |
| Power consumption (max) The maximum amount of power used by the device. | 360 W |
| Power consumption (economy mode) | 240 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 399 mm |
| Depth The distance from the front to the back of something. | 348 mm |
| Height The measurement of the product from head to foot or from base to top. | 133 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6.5 kg |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| SKU | 638225 |
| MPN | PT-VMZ61 |
| Brand | Panasonic |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.panasonic.com/ |
