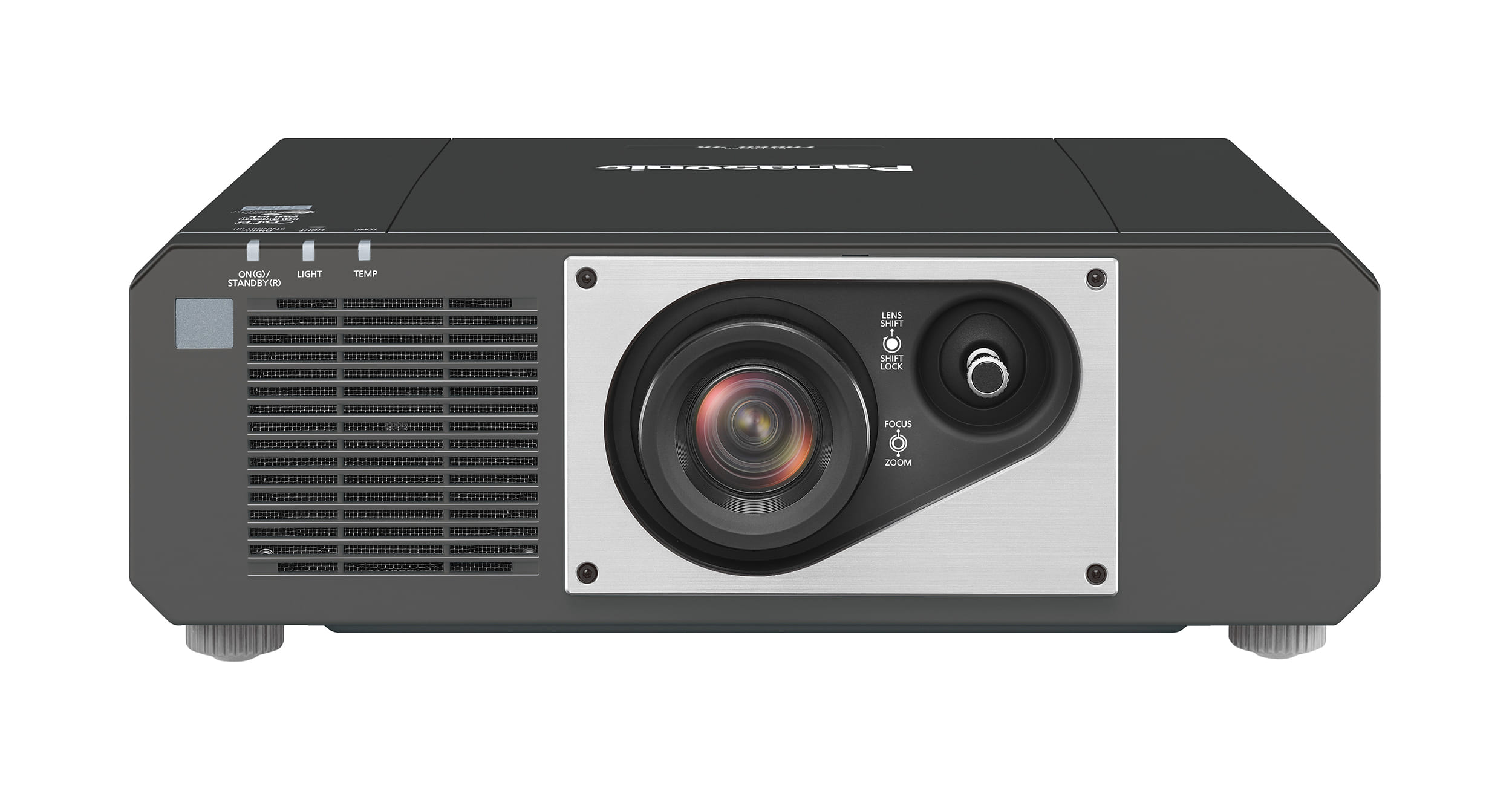

Panasonic PT FRQ60B 6000 Lumens 4K Laser Projector - Black
Item No:
723689
MPN:
PT-FRQ60B
$10,162.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Panasonic PT FRQ60B, 6000 ANSI lumens, DLP, 2160p (3840x2160), 20000:1, 16:9, 762 7620 mm (30 300")
Exceptionally Smooth and Detailed 4K Image Quality
Quad Pixel Drive 2 axis pixel quadrupling technology creates detailed 4K images retaining natural sharpness and clarity, while Rich Color Enhancer produces vivid, accurate colors. High speed 240 Hz processing creates smooth, grid less images while supporting up to 240 Hz/1080p frame rates with a minimal latency of 8 ms or less.
Flexible, Simple to Use, and Easy to Integrate
Versatile 2.0x zoom supports flexible throw distances while V/H Lens Shift expands installation flexibility. Two CEC compliant HDMI inputs join DIGITAL LINK and LAN terminals for easy integration into 4K infrastructure. Preactivated upgrade kits for Geometry Manager Pro*1 and new Remote Preview Lite*2 secure an effortless 4K experience.
Highly Reliable Low Maintenance Projection
Filterless heat pipe based cooling draws heat from the hermetically sealed optical block to support 20,000 hour*6 maintenance free projection. Multi Monitoring & Control Software with optional Early Warning functions*7 prevents downtime by alerting the operator before problems occur, streamlining management and enhancing reliability in museums, classrooms, and offices.
Quad Pixel Drive 2 axis pixel quadrupling technology creates detailed 4K images retaining natural sharpness and clarity, while Rich Color Enhancer produces vivid, accurate colors. High speed 240 Hz processing creates smooth, grid less images while supporting up to 240 Hz/1080p frame rates with a minimal latency of 8 ms or less.
Flexible, Simple to Use, and Easy to Integrate
Versatile 2.0x zoom supports flexible throw distances while V/H Lens Shift expands installation flexibility. Two CEC compliant HDMI inputs join DIGITAL LINK and LAN terminals for easy integration into 4K infrastructure. Preactivated upgrade kits for Geometry Manager Pro*1 and new Remote Preview Lite*2 secure an effortless 4K experience.
Highly Reliable Low Maintenance Projection
Filterless heat pipe based cooling draws heat from the hermetically sealed optical block to support 20,000 hour*6 maintenance free projection. Multi Monitoring & Control Software with optional Early Warning functions*7 prevents downtime by alerting the operator before problems occur, streamlining management and enhancing reliability in museums, classrooms, and offices.
| Projector | |
| Smart projector |
 |
| Screen size compatibility The different screen sizes which the device can work with. | 762 - 7620 mm (30 - 300") |
| Projector brightness | 6000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 2160p (3840x2160) |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 20000:1 |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:9 |
| Keystone correction, horizontal | -20 - 20° |
| Keystone correction, vertical | -40 - 40° |
| Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Lens system | |
| Focus | Manual |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 21.5 - 43 mm |
| Aperture range (F-F) Aperture range of the device's optics, expressed in f-stops. | 2 - 3.4 |
| Zoom capability The amount that the camera lens can zoom. |
 |
| Zoom type | Manual |
| Zoom ratio Measures how much the camera can adjust its focus for distance shots. A 3x zoom ratio changes the camera's focal length by a factor of three, from 35 mm to 105 mm for example. | 2.0:1 |
| Throw ratio | 1.46 - 2.93:1 |
| Horizontal lens shift range | -27 - 34% |
| Vertical lens shift range | -48 - 71% |
| Video | |
| Full HD Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection. |
|
| 3D The device can be used with 3D technology. |
|
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Audio (L/R) in The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable). | 1 |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 1 |
| Serial interface type | RS-232C |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 2 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Storage | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Features | |
| Interactive |
|
| Noise level (standby) | 31 dB |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 36 dB |
| Multimedia | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Design | |
| Market positioning Under which category can the device be positioned in the market, e.g. camera phone. | Business |
| Product type The sub-category of the product. | Large venue projector |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 505 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 498 mm |
| Depth The distance from the front to the back of something. | 492 mm |
| Height The measurement of the product from head to foot or from base to top. | 168 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 16.4 kg |
| SKU | 723689 |
| MPN | PT-FRQ60B |
| Brand | Panasonic |
| Product Condition | Brand New/Unused |
| Product Use | General |
