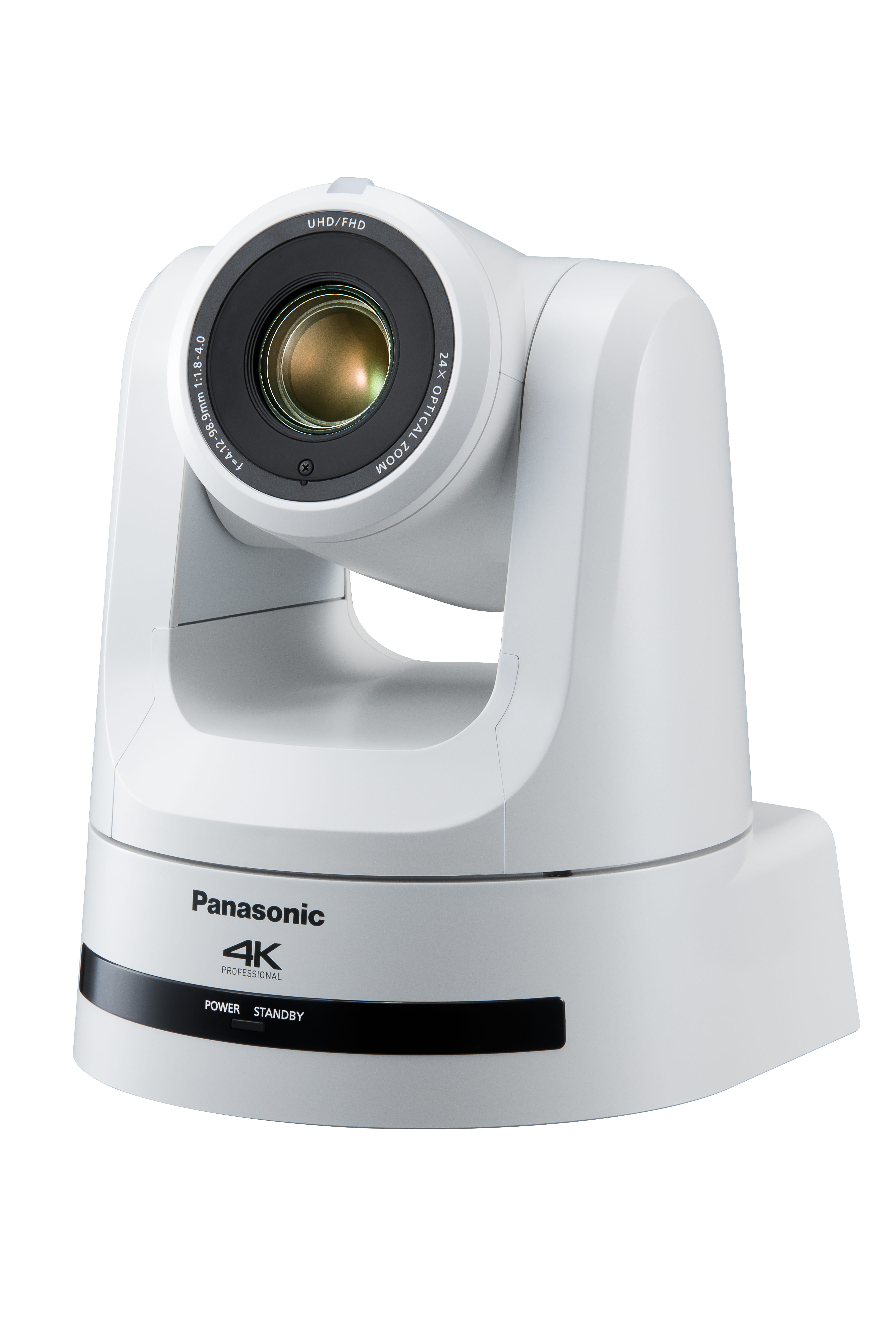

Panasonic AW-UE100WEJ PTZ 4K 24x Camera - White
Item No:
772853
MPN:
PA-AW-UE100WEJ
$13,489.09
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Panasonic AW-UE100WEJ, IP security camera, Indoor, Desk/Ceiling, White, 74.1Deg, 46Deg
First 4K 60p/50p PTZ Camera supporting NDI and SRT in the worldSupports high bandwidth NDI for low latency transmission of high-quality 4K 60p/50p video, and
SRT for high-quality and stable transmission, and also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production.
Supports a wide variety of IP transmission protocols, including NDI,NDI HX, and SRT
High bandwidth NDI that can transmit 4K video at speeds of up to 250 Mbps and full HD video up to 100 Mbps is included to provide high-quality low latency live video transmission with a single LAN cable. High effciency low bandwidth NDI HX is also included to enable video transmission at low bitrates. SRT is also supported to maintain
stability while transmitting high-quality video, even in unstable network environments. RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera.
Supports 4K 60p/50p shooting and 12G-SDI output
Supports 4K 60p/50p video at 3840 x 2160 to provide smooth and high-quality shooting of moving images, and a wide variety of output interfaces such as 12G-SDI, 3G-SDI, HDMI, and IP.
Includes a wide-angle lens with a 74.1Deg field of view and 24x optical zoom
A wide angle lens with a horizontal angle of view of 74.1 degrees enables a wide area to be shot from a limited installation space, and 24x optical zoom maintains high image quality at high zoom ratios. This allows shooting in large indoor spaces.
Supports FreeD for building AR/VR systems
FreeD command output enables connection with AR/VR systems. This allows the camera tracking information (pan/tilt/zoom/focus/iris) to be output together with a synchronization signal to easily build systems without an encoder.
Adopts new mechanical pan/tilt for improved responsiveness and quietness
The inclusion of a Direct Drive mechanism improves the responsiveness of pan/tilt and quietness during pan/tilt operations. In addition to Optical Image Stabilization (OIS), Electronic Image Stabilization (EIS) has been added for the roll direction.This provides stable video shooting even at locations utilizing robotics and rail systems, etc.
SRT for high-quality and stable transmission, and also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production.
Supports a wide variety of IP transmission protocols, including NDI,NDI HX, and SRT
High bandwidth NDI that can transmit 4K video at speeds of up to 250 Mbps and full HD video up to 100 Mbps is included to provide high-quality low latency live video transmission with a single LAN cable. High effciency low bandwidth NDI HX is also included to enable video transmission at low bitrates. SRT is also supported to maintain
stability while transmitting high-quality video, even in unstable network environments. RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera.
Supports 4K 60p/50p shooting and 12G-SDI output
Supports 4K 60p/50p video at 3840 x 2160 to provide smooth and high-quality shooting of moving images, and a wide variety of output interfaces such as 12G-SDI, 3G-SDI, HDMI, and IP.
Includes a wide-angle lens with a 74.1Deg field of view and 24x optical zoom
A wide angle lens with a horizontal angle of view of 74.1 degrees enables a wide area to be shot from a limited installation space, and 24x optical zoom maintains high image quality at high zoom ratios. This allows shooting in large indoor spaces.
Supports FreeD for building AR/VR systems
FreeD command output enables connection with AR/VR systems. This allows the camera tracking information (pan/tilt/zoom/focus/iris) to be output together with a synchronization signal to easily build systems without an encoder.
Adopts new mechanical pan/tilt for improved responsiveness and quietness
The inclusion of a Direct Drive mechanism improves the responsiveness of pan/tilt and quietness during pan/tilt operations. In addition to Optical Image Stabilization (OIS), Electronic Image Stabilization (EIS) has been added for the roll direction.This provides stable video shooting even at locations utilizing robotics and rail systems, etc.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| PTZ control |
 |
| Design | |
| Mounting type Type of mounting e.g. wall mounting. | Desk/Ceiling |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Camera | |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 74.1° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 46° |
| Viewing angle, diagonal | 81.8° |
| Tilt angle range | -30 - 210° |
| Pan range | -175 - 175° |
| Image sensor | |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.5 mm (1 / 2.5") |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | MOS |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera. | 24x |
| Maximum aperture number | 4 |
| Minimum aperture number The minimum size of the hole through which light enters a camera. | 1.8 |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 4.12 - 98.9 mm |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Video compression formats | H.264,H.265,M-JPEG |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 320 x 180,640 x 360,1280 x 720 (HD 720),1920 x 1080 (HD 1080),3840 x 2160 |
| Supported video modes The video modes that can be displayed by the device. | 1080p,2160p |
| Video streaming |
|
| Image stabilizer This camera function compensates for slight shaking movements caused by an unstable position and ensures smooth footage even in suboptimal conditions. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3bt |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| RS-422 ports | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power source type What the power source is. | DC, PoE |
| DC output voltage | 12 |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.2 kg |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| SKU | 772853 |
| MPN | PA-AW-UE100WEJ |
| Brand | Panasonic |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
