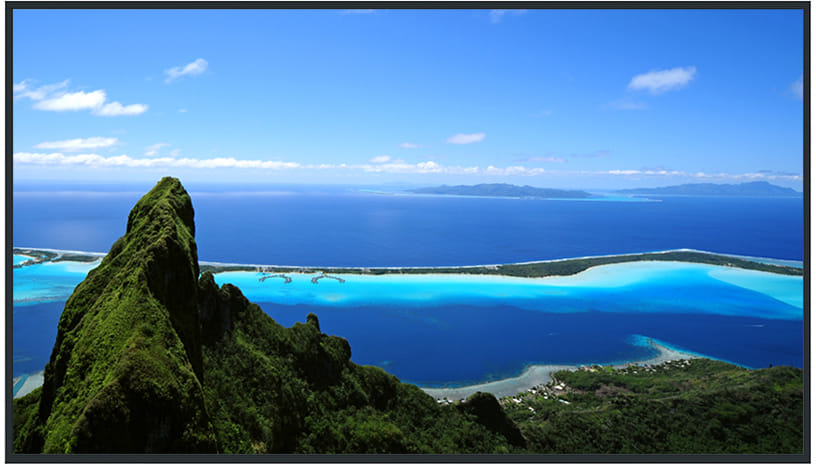

Panasonic 98" IPS 4K Ultra HD Signage Display Digital Flat Panel

The SQ1 Series Is Ideal for Use in Stores and Meeting Rooms, and as Public Signage.

Panasonic's SQ1 Series of 4K UHD LCD displays employ 4K picture quality to render intricately detailed images. The SQ1 Series features the "12-Axis Color Management function" for ideally faithful Color reproduction of digital signage content, and "HDR" compatibility to express a wide brightness range from dark to bright. Equipped with the new Intel SDM specification slot standard, the SQ1 Series can be combined with an interface board for simple but wide system interoperability.

Stunning Panasonic 4K Quality Right Down to the Details
With approximately 8,290,000 pixels, or about four times the pixels of a Full-HD display, images are highly detailed. This dynamic, large-screen display archives true-to-life, finely nuanced images. The 4K display is an excellent choice for meeting rooms where images are often viewed up close, and creates impressive ambience in signage applications for commercial facilities. It can be expected to attract considerable attention.

Easy Display of Images Optimized for the Display Content
Conventional display panels are preset with display modes such as Standard and Dynamic. The SQ1 Series comes with an extensive display menu to let you select the most suitable mode for the content to be displayed and the viewing environment.
You can select the best mode for the video source and the place of display.

Supports HDR and BT.2020 Emulation
The SQ1 Series supports HDR (High Dynamic Range) (PQ and HLG). Image reproduction is stunning, from deepest black to sparkling bright highlights. Additionally, they have emulation mode for BT.2020. This enables an emulation display to support the wide color gamut of the ITU-R BT.2020 standard.

12-Axis Color Management Archives Faithful Color Reproduction
The SQ1 Series, the color temperature, shade, and brightness parameters of individual images can be adjusted for red, green, and blue, and their complementary colors, cyan, magenta, and yellow. This keeps the intermediate shades of extremely fine colors vibrant and lifelike.

The IPS Panel Has a Wide Viewing Angle and Reduced Color Changes
There is very little change in color, compared with the VA panel, when the screen is viewed at right or left angles, so the images are crisp and clear. This is ideal for providing correct information to places with a lot of people present, such as public spaces and facilities.

High Reliability Enables Continuous 24/7 Operation
The SQ1 Series is capable of constant, 24/7 operation. It offers reliable use in public spaces where many people gather, such as train stations, airports, and shopping malls, as well as installation in control rooms. It is also equipped with a variety of input/output terminals for versatile applications. Furthermore, the 65-inch, 55-inch, and 49-inch models can be installed with a tilt up to 45 degrees for use in a variety of mounting situations.

A Stylish and Slim Design Accentuates the Image
The narrow bezel renders higher-impact images, further enhancing the 4K picture quality. Without being distracted by the bezel, the viewer becomes immersed in the eye-catching image.

A Thin Design that Focused on Safety
The depth of the TH-98SQ1 is only 90 mm (3.5"). The depth of the TH-98SQ1 is slim when installed using the separately sold, exclusive wall-mounting bracket (TY-WK98PV1), which complies with ADA Compliant. The display can be installed to blend into spaces such as crowded passageways or conference rooms without having to worry about an irregular shape getting in the way.

DIGITAL LINK Function Enables Simple Installation and Low System Costs
Based on HDBaseT technology, DIGITAL LINK supports transmission of video, audio, and control commands through a single CAT5e or higher STP cable for distances of 150 m (492 ft) for Full HD video and 50 m (164 ft) for 4K video.
An optional DIGITAL LINK Switcher or Digital Interface Box further simplifies installation in large venues while reducing cost and improving reliability.

The Display Has a Built-in 4K Compatible USB Media Player
By simply inserting a USB memory stick onto which content has been saved, playback automatically starts. Since it is 4K compatible, it easily provides 4K digital signage without having to use a PC or set-top box.
Content can be consecutively played without letterboxing. Content can also be switched via LAN or multiple displays can be operate.

Supports the Next-Generation Intel SDM Specification Slot Standard
The SQ1 Series is equipped with the new Intel SDM specification slot standard that supports 4K signals. Combined with the interface board, you can easily use a built-in PC and add various interfaces.

4K Daisy Chain Connection
By connecting the DisplayPort input/output terminals in a daisy chain, 4K images can be simultaneously displayed.

Dynamic Signage is Possible with the Portrait Zoom
Split the content from image sources, and enlarge the display in a portrait orientation. There is no need to use a special device, such as a processor, while creating content from various images. Placing three TH-65SQ1 models vertically creates a display equivalent to 112 inches. This enables highly visible store signage.

Multi Input Screen Capability with No Processor Required
In addition to 4K multi screens, the SQ1 Series can display 2 screens, such as PinP and PbyP. This is ideal for checking details in various applications such as videoconferences, digital signage, and surveillance monitoring.
Multi screen construction is also supported for large-screen displays (up to a maximum of 10 x 10 displays).

Cloning Function Saves Labor When Setting Up Multiple Devices
When installing multiple displays, the Cloning function lets you use a USB memory (or LAN network) to copy the settings of a parent display to other units, thus greatly shortening the setup time.

PC Software Enables Even Easier and More Convenient Content Playback and Management
The SQ1 Series features a USB Media Player function that allows easy signage playback. Content Management Software is an application software for scheduling digital signage playback on a computer. It also allows poser ON/OFF to be set.

Play Content Automatically with Scheduling Function
Content Management Software for PC Version 3.2 (free) enables easy playlist creation with media support including combinations of still and video images. You can set up schedules for playing and ending your media playlist at predetermined dates and times.

Convenient Playlist and Schedule Syncing
Playlists and schedules created with Content Management Software can be transferred to displays with USB memory or via LAN. Synchronized playback on multiple displays is also supported.

USB Memory Network Settings
Using a USB memory device, the network setting can be made for multiple displays. Individual IP addresses for each unit are automatically set.

Screen Transfer Software
In places such as meeting rooms, classrooms and shops, where displays are connected by wired LANs, PC screens can be simultaneously displayed. You can set equipment to display by simply designating its IP address. This is convenient for streaming images and "notification displays" in schools and shops.

Multi Monitoring & Control Software
Compatible with Multi Monitoring & Control Software for addition of new functions, such as automatic searching for map displays and registered devices. Displays and peripheral equipment on the intranet can be controlled and their status can be monitored. Also error notification and error indication can be detected by an indication monitoring function (for a fee) for improved maintenance.

Failover and Failback Safeguards for Mission Critical Situations
If the main video and audio signals are interrupted, the system immediately switches to alternative signals. If the main signals are restored, the original image is displayed.
This makes it ideal for mission critical control rooms and surveillance centers.

The Frame Creation function that supplements images (98/86/75-inch models)
Fast moving scenes can be viewed even more beautifully.

Handy Input Switch for a Meeting Monitor
By simply connecting a display and PC with a video cable, a series of operations can be performed: the signal can be detected
