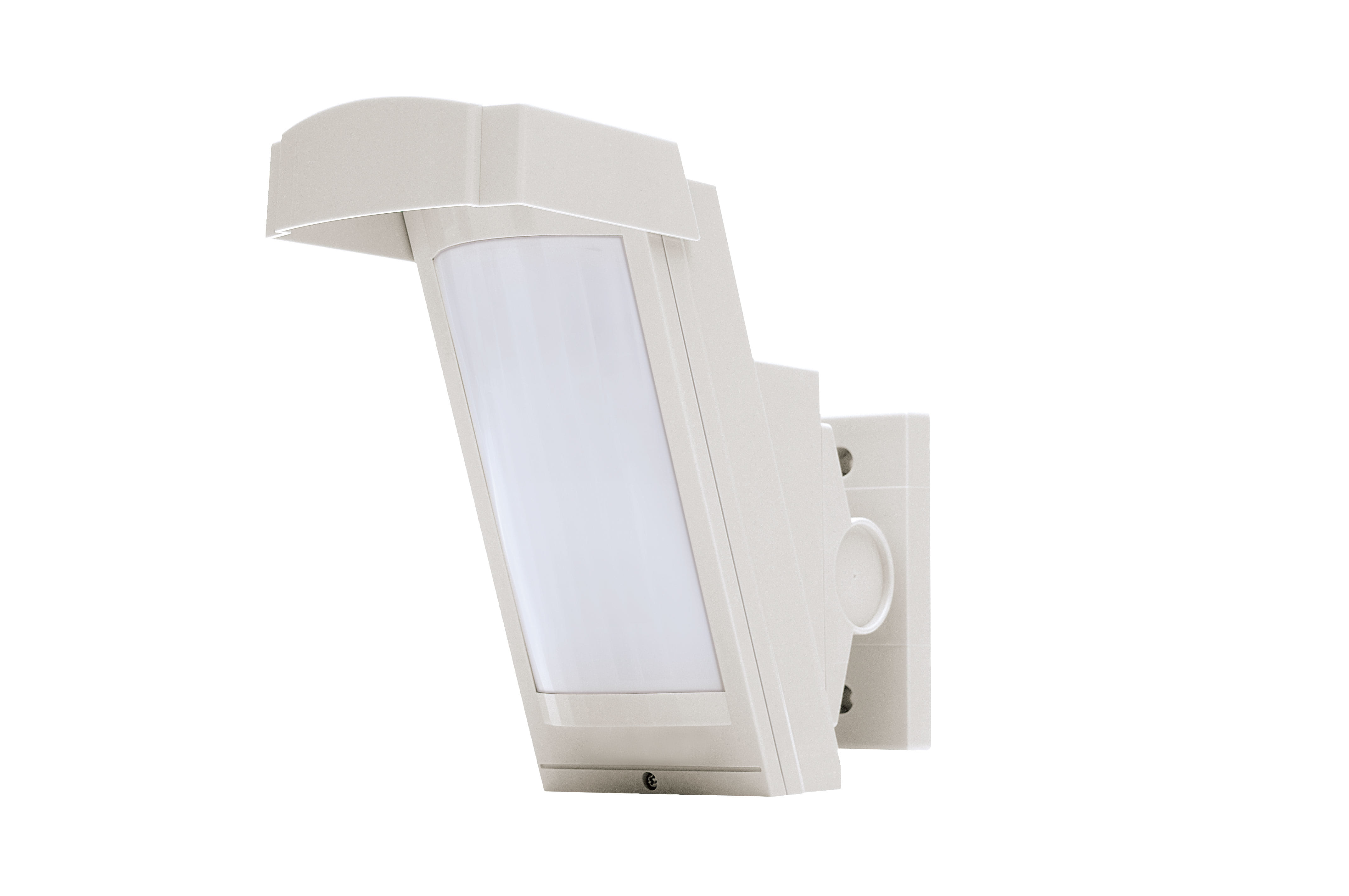

Optex HX 40, Passive infrared (PIR) sensor, Wired, 9 m, Wall, Outdoor, White
The HX 40 is a high mount outdoor detector for mid level to high end applications where reliability and performance is a must. The unique pyro element developed by Optex provides a multiple pattern detection with 94 high density detection zones and accurate discrimination function for spot temperature changes of moving objects. These features drastically reduce fales and missed alarms caused by severe outdoor environmental changes and provide a wide range of applications. Accurate detection performance is necessary is such environments, and the HX 40 meets these requirements.
| Security | |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | Passive infrared (PIR) sensor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Detection distance | 9 m |
| Features | |
| Mounting type Type of mounting e.g. wall mounting. | Wall |
| Placement Where the product can be placed e.g. floor, wall. | Outdoor |
| LED indicators |
 |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP55 |
| Installation height (min) | 2.5 m |
| Installation height (max) | 3 m |
| Detection angle | 85° |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 18 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 60 °C |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 600 g |
| Packaging content | |
| Mounting bracket(s) included |
|
| Screws included |
|
| SKU | 717089 |
| MPN | HX-40 |
| Brand | Optex |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
