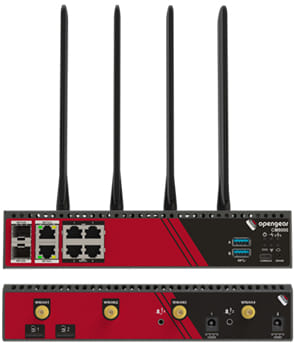

Opengear CM8008, Black, Red, TACACS+, WPA-RADIUS, IPSec, USB, 220 x 177 x 44 mm, 1.55 kg, 44 mm
The compact CM8000 console manager is purpose-built for secure Out-of-Band Management in locations with a small number of serial devices or limited rack space. Combined with Lighthouse for centralized visibility and control, it provides dependable access to power, sensors, and critical infrastructure when it matters most.
| Technical details | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| MIB support |
|
| Package height The distance from the top to the bottom of the packaging. | 44 mm |
| Package length | 22 cm |
| Package width The distance from one side of the packaging to the other. | 177 mm |
| Cellular |
|
| Zero Touch Provisioning (ZTP) |
|
| Web-based management Using a website/web application to manage something. |
|
| Temperature sensor |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black, Red |
| Package weight Weight of the packaged product. | 1.25 kg |
| Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies. | RoHS |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | TACACS+, WPA-RADIUS, IPSec |
| Ports & interfaces | |
| Console port | USB |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 8 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| SFP module slots quantity | 2 |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 220 x 177 x 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.55 kg |
| Power | |
| Power source type What the power source is. | DC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 110-240 V |
| AC input frequency | 50-60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 24 W |
| DC input voltage | 12 V |
| Number of power supply units | 2 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Memory | |
| RAM capacity | 4096 MB |
| RAM type The type of RAM (random access memory) inside the device e.g. DDR3. | DDR4 |
| eMMC capacity | 32 GB |
| Processor | |
| Processor model The model number for the processor in a computer. | Cortex-A53 |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| SKU | 841724 |
| MPN | CM8008 |
| Brand | Opengear |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://opengear.com/ |
