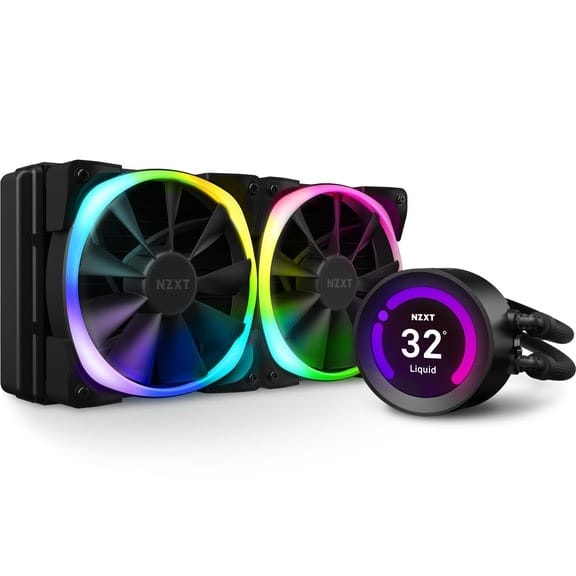

Matte Black; 2.36” LCD screen capable of displaying 24-bit color; Two 120mm Aer RGB 2 radiator fans with fluid dynamic bearing; Fine nylon mesh sleeves strengthens rubber tubing to protect from leaks
| Performance | |
| Purpose What the product is used for. | Processor |
| Built-in fan |
 |
| Radiator Cooling system includes radiator. |
|
| Fan noise level (min) | 22 dB |
| Fan noise level (max) | 33 dB |
| Bearing technology | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support |
|
| Fan connector | 4-pin |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 2800 RPM |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1500 RPM |
| Minimum airflow (imperial) | 17.48 cfm |
| Maximum airflow | 52.44 cfm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket TR4, Socket sTRX4 |
| Minimum air pressure | 0.14 mmH2O |
| Maximum air pressure | 1.35 mmH2O |
| Fan's mean time to failure (MTTF) | 60000 h |
| Power | |
| Fan power consumption | 2.2 W |
| Pump voltage | 12 V |
| Pump current | 300 mA |
| Fan voltage | 12 V |
| Fan current | 0.18 A |
| Design | |
| Type Characteristics of the device. | Internal |
| Water block material | Copper/Plastic |
| Radiator material | Aluminium |
| Tube material The material the tube is made of. | Rubber |
| Illumination LED |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Weight & dimensions | |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
| Radiator width | 12.3 cm |
| Radiator depth | 27.5 cm |
| Radiator height | 3 cm |
| Waterblock width | 7.9 cm |
| Waterblock depth | 5.2 cm |
| Packaging content | |
| Screws included |
|
| Number of screws | 28 |
| Mounting kit |
|
| SKU | 539162 |
| MPN | RL-KRZ53-R1 |
| Brand | NZXT |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Product Features | RGB |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://nzxt.com/ |
