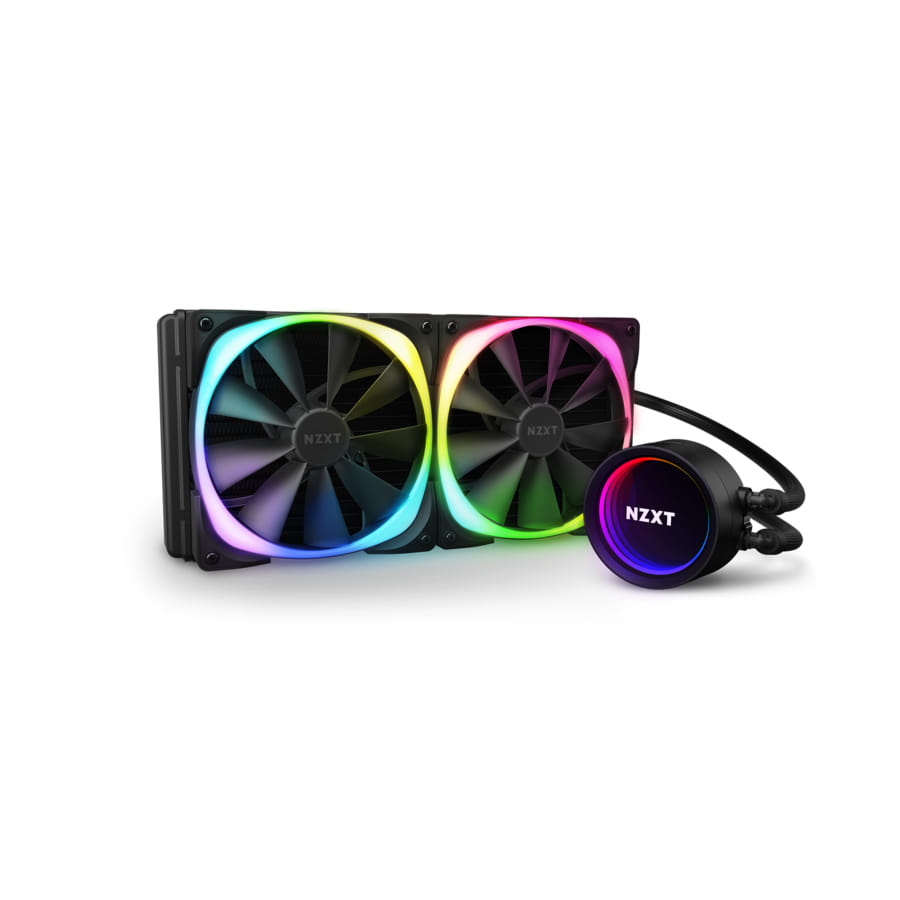

Motor Speed: 800 - 2,800 + 300 RPM; Power: 12VDC, 0.3A; Radiator Dimensions: 143 x 315 x 30mm; Compatible Socket: Intel Socket LGA 1200, 1151, 1150, 1155, 1156, 1366, 2011, 2011-3, 2066
| Performance | |
| Purpose What the product is used for. | Processor |
| Built-in fan |
 |
| Radiator Cooling system includes radiator. |
|
| Fan noise level (min) | 22 dB |
| Fan noise level (max) | 33 dB |
| Bearing technology | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support |
|
| Fan connector | 4-pin |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 3100 RPM |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Minimum airflow (imperial) | 30.39 cfm |
| Maximum airflow | 91.19 cfm |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, 3rd Generation AMD Ryzen 9, AMD Ryzen Threadripper, Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium® |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket TR4, Socket sTRX4 |
| Minimum air pressure | 0.17 mmH2O |
| Maximum air pressure | 1.52 mmH2O |
| Number of fans supported | 5 |
| Number of LED strips supported | 4 |
| Fan's mean time to failure (MTTF) | 60000 h |
| Power | |
| Fan power consumption | 3.8 W |
| Fan voltage | 12 V |
| Fan current | 0.32 A |
| Design | |
| Type Characteristics of the device. | Internal |
| Water block material | Copper/Plastic |
| Radiator material | Aluminium |
| Tube material The material the tube is made of. | Rubber |
| Illumination LED |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Weight & dimensions | |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 14 cm |
| Fan dimensions (W x D x H) | 140 x 26 x 140 mm |
| Radiator width | 31.5 cm |
| Radiator depth | 3 cm |
| Radiator height | 14.3 cm |
| Tube length | 40 cm |
| Waterblock height | 5.5 cm |
| SKU | 489926 |
| MPN | RL-KRX63-R1 |
| Brand | NZXT |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 140mm |
| Cooling Technology | Liquid |
| Stock Availability | Available for Shipping, In Stock at Blacktown |
| Product Use | Gaming |
| Product Features | RGB |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://nzxt.com/ |
