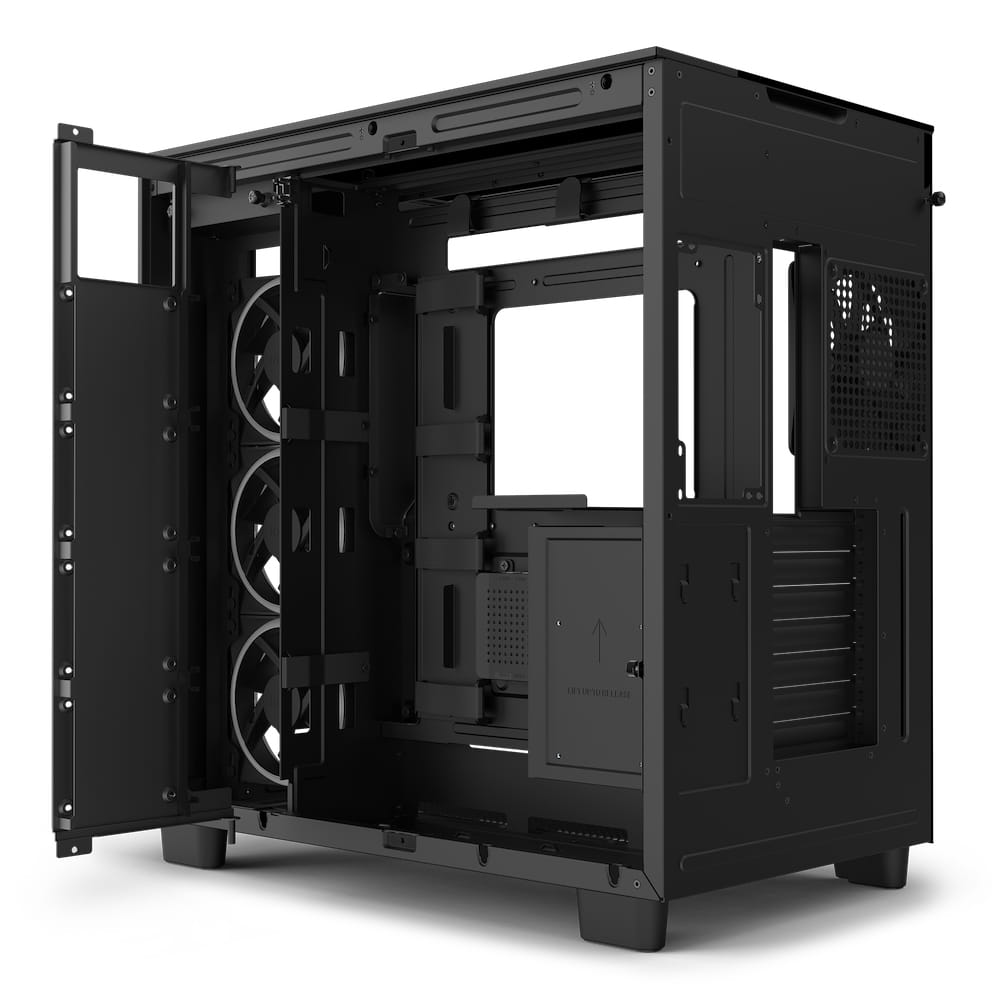

NZXT H9 Elite, Midi Tower, PC, Black, ITX, Micro ITX, Mini ITX, Stainless steel, Tempered glass, 16.5 cm
The H9 Elite is designed to show off every angle of your build with a tempered glass top panel and a built in RGB & Fan Controller. The unique wraparound glass design with a dual chamber layout is the perfect showcase for premium components.
Unique uninterrupted glass panel for a clear view of the interior
Intuitive cable management and dual chamber design
Room for ten fans or three 360mm Radiators
Tempered glass top panel and included RGB & Fan Controller
Direct airflow to the GPU for handling high powered components
Enhanced experience with other products from the NZXT ecosystem
Includes three F Series 120mm RGB Duo Fans and one F120Q Fan
GPU Capacity
The H9 Elite has 435mm of GPU clearance, offering room for the latest NVIDIA 40 Series and AMD 7000 Series cards.
Fan Capacity
The H9 Elite has room for 10 fans. With the capacity for 3x120mm fans on the side, 3 x 120mm or 2x140mm on the top and bottom, and 1 x120mm on the rear.
Radiator Capacity
The H9 Elite has room for up to a 360mm radiator on the top, bottom, or side, and up to a 120mm radiator on the rear.
Unique uninterrupted glass panel for a clear view of the interior
Intuitive cable management and dual chamber design
Room for ten fans or three 360mm Radiators
Tempered glass top panel and included RGB & Fan Controller
Direct airflow to the GPU for handling high powered components
Enhanced experience with other products from the NZXT ecosystem
Includes three F Series 120mm RGB Duo Fans and one F120Q Fan
GPU Capacity
The H9 Elite has 435mm of GPU clearance, offering room for the latest NVIDIA 40 Series and AMD 7000 Series cards.
Fan Capacity
The H9 Elite has room for 10 fans. With the capacity for 3x120mm fans on the side, 3 x 120mm or 2x140mm on the top and bottom, and 1 x120mm on the rear.
Radiator Capacity
The H9 Elite has room for up to a 360mm radiator on the top, bottom, or side, and up to a 120mm radiator on the rear.
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Stainless steel, Tempered glass |
| Form factor The shape or design of the product. | Midi Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Supported motherboard form factors Design of the supported motherboards. | ITX, Micro-ITX, Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 2 |
| Number of 5.25" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 5.25" drive bay, also known as full-height bays, were found in old PCs in the early to mid-1980s. They were 3¼″ high by 5¾″ wide, and up to 8″ deep (83 × 146 × 200 mm), used mainly for hard disks and floppy disk drives. | 6 |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 16.5 cm |
| Maximum PSU length | 20 cm |
| Ports & interfaces | |
| Audio input The type of audio input that the device requires, and the connection needed. |
 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Cooling | |
| Side fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 5 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 5 |
| Bottom fans diameters supported | 120,140 mm |
| Fan speed | 500 - 1800 RPM |
| Maximum airflow | 62.18 cfm |
| Fan 2 maximum airflow | 48.58 cfm |
| Front radiator fan sizes supported | 360 mm |
| Side radiator fan sizes supported | 360 mm |
| Rear radiator fan sizes supported | 120 mm |
| Top radiator fan sizes supported | 360 mm |
| Technical details | |
| Warranty period | 2 year(s) |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 290 mm |
| Depth The distance from the front to the back of something. | 466 mm |
| Height The measurement of the product from head to foot or from base to top. | 495 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 13.1 kg |
| SKU | 708596 |
| MPN | CM-H91EB-01 |
| Brand | NZXT |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | ATX |
| Case Colour | Black |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://nzxt.com/ |
