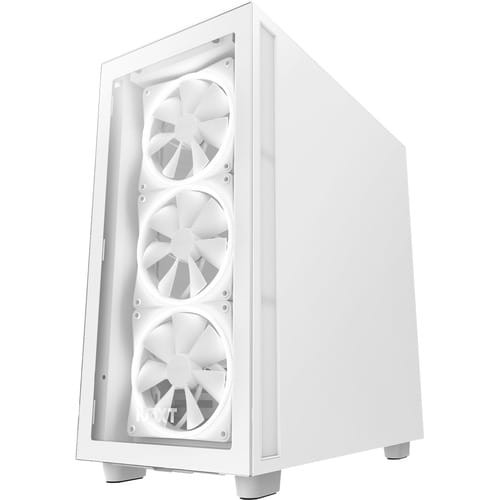

H7 V1 2022 ELITE ATX MID TOWER CHASSIS ALL WHITE
ABOUT THE PRODUCT
The H7 Elite combines luminous style with a large form factor, making it a elegant way to accommodate premium components. With improved airflow, a streamlined build experience, new color options, and a tempered glass front panel, the H7 Elite is the perfect case for high-performance, RGB-focused builds.
THERMALLY EFFICIENT
We've opened up the top panel to achieve even better thermal eciency. The perforated panel provides improved ventilation as warm air flows through the top of the chassis, enabling even cooler temperatures. The top and front of the case support radiators up to 360mm for maximum cooling support. Three pre-installed RGB fans mean users get RGB cooling right out of the box.
BUILDING SIMPLIFIED
Streamline the build process with an improved cable management system. Wider cable channels provide more room to easily route cables, while the addition of hooks add stability to hold everything in place. Ample space and clearance make the H7 Elite a spacious chassis for ambitious builds.
A MODERN LOOK
The H7 Elite comes in two color options that fit in seamlessly with any aesthetic. Both options are combined with a tempered glass side panel that complements the chassis color.
BETTER WITH CAM
H7 ELITE The built-in RGB & Fan Controller allows users to personalize RGB lighting and control fans with NZXT CAM. Mix and match any NZXT RGB lighting accessories and sync them across multiple channels.

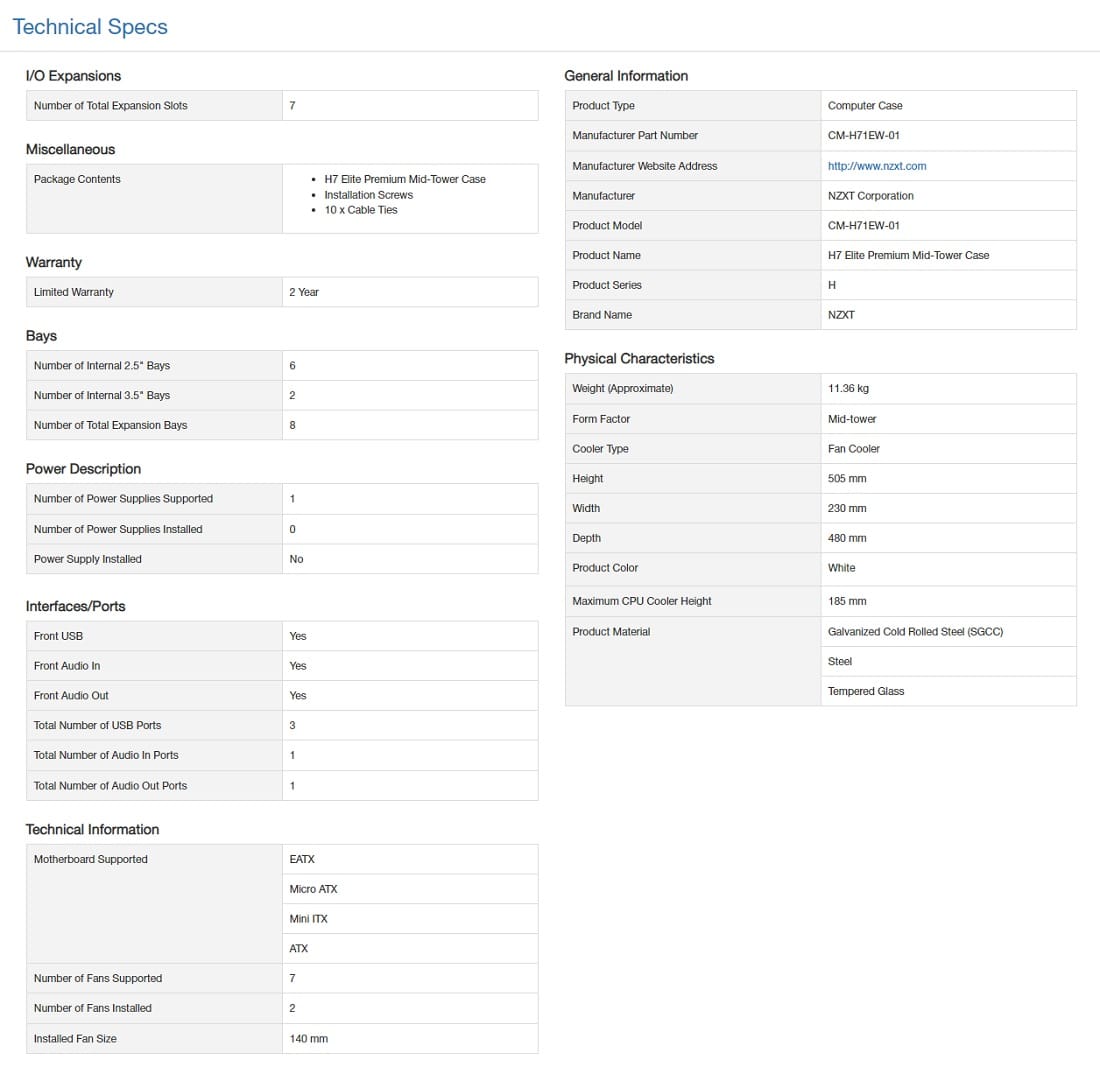

| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Steel, Tempered glass |
| Form factor The shape or design of the product. | Midi Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Supported motherboard form factors Design of the supported motherboards. | ATX, EATX, micro ATX, Mini-ITX |
| Number of 2.5" bays | 6 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 7 |
| Cable management Description of improved cable management |
 |
| Maximum CPU cooler height | 18.5 cm |
| Maximum graphics card length | 40 cm |
| Power supply | |
| Power supply included There is a power supply with this product. |
 |
| Ports & interfaces | |
| Audio output The type of audio output that the device produces, and the connector(s). |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Cooling | |
| Front fans installed | 3x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Top fans installed | 3x 120 mm, 2x 140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Fan speed | 500 - 1800 RPM |
| Front radiator fan sizes supported | 360 mm |
| Rear radiator fan sizes supported | 140 mm |
| Top radiator fan sizes supported | 360 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 230 mm |
| Depth The distance from the front to the back of something. | 480 mm |
| Height The measurement of the product from head to foot or from base to top. | 505 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 11.4 kg |
| Packaging data | |
| LED controller |
|
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| SKU | 626409 |
| MPN | CM-H71EW-01 |
| Brand | NZXT |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | ATX |
| Case Colour | White |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://nzxt.com/ |
