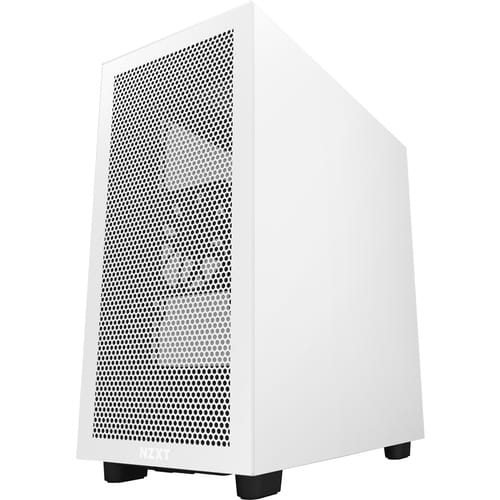

H7 V1 2022 AIR ATX MID TOWER CHASSIS BLACK WHITE
ABOUT THE PRODUCT
The H7 Flow is an excellent chassis for any ambitious builder looking for optimized thermal performance. With superior airflow, a streamlined build experience, new color options, and a perforated front panel, the H7 Flow is a modern and beautiful addition to the H series.
EXTREMELY COOL
The H7 Flow achieves maximized thermal performance with a perforated top and front panel. These airflow-optimized panels improve ventilation, giving users even better temperatures for marathon gaming sessions. The top and front of the case support radiators up to 360mm, while the front panel can accommodate three 140mm fans for maximum cooling.
BUILDING SIMPLIFIED
Streamline the build process with an improved cable management system. Wider cable channels provide more room to easily route cables, while the addition of hooks add stability to hold everything in place. Ample space and clearance make the H7 Flow a spacious chassis for ambitious builds.
A MODERN LOOK
The H7 Flow combines the modern look of the H series with new color options that fit in seamlessly with any aesthetic. Each color is paired with glass tinting that complements the respective chassis.
- Black & white case with clear glass
- All-black case with tinted glass
- All-white case with clear glass

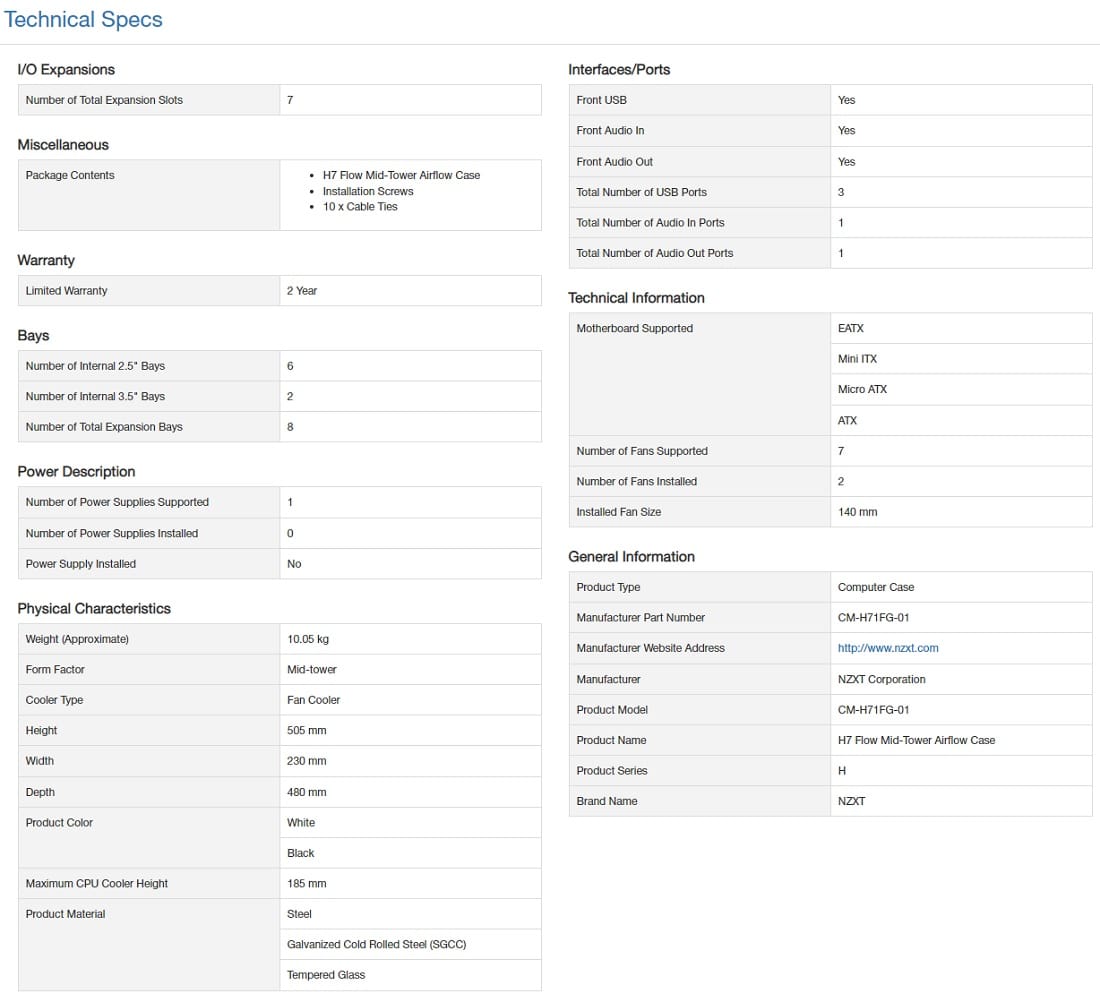

| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Galvanized steel, Tempered glass |
| Form factor The shape or design of the product. | Midi Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Supported motherboard form factors Design of the supported motherboards. | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 2 |
| Number of 2.5" bays | 6 |
| Number of expansion slots | 7 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Suitable for Who can use the product, or what the product can be used for. | Gaming |
| Tempered glass panel(s) |
|
| Anti-dust filter |
|
| Cable management Description of improved cable management |
|
| Reset button |
 |
| On/off button |
|
| Power supply | |
| Power supply included There is a power supply with this product. |
|
| Power supply location Where the power supply is positioned. | Bottom |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Cooling | |
| Front fans installed | 1x 120 mm |
| Number of front fans supported (max) | 3 |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Fan speed | 960 - 1440 RPM |
| Front radiator fan sizes supported | 120,140 mm |
| Rear radiator fan sizes supported | 120,140 mm |
| Top radiator fan sizes supported | 120,140 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 230 mm |
| Depth The distance from the front to the back of something. | 480 mm |
| Height The measurement of the product from head to foot or from base to top. | 505 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 10.1 kg |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| SKU | 626423 |
| MPN | CM-H71FG-01 |
| Brand | NZXT |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | ATX |
| Case Colour | White/Black |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://nzxt.com/ |
