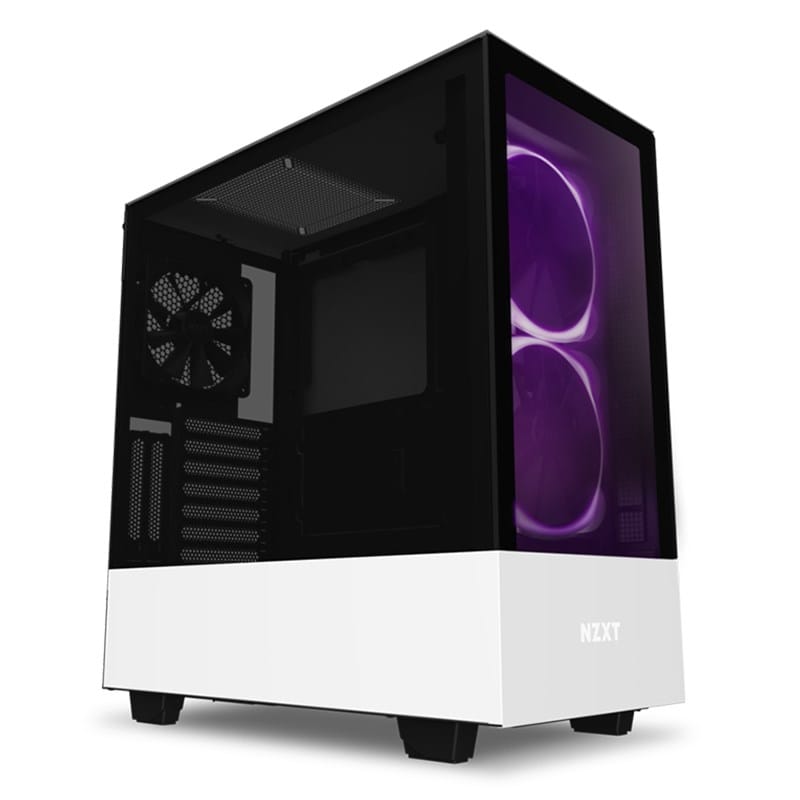

We’ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device v2 on the H510i.
| Design | |
| Form factor The shape or design of the product. | Midi Tower |
| Type Characteristics of the device. | PC |
| Material The material from which a thing is or can be made e.g. wood, plastic. | SGCC,Steel,Tempered glass |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Supported motherboard form factors Design of the supported motherboards. | ATX,Micro ATX,Mini-ATX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 3 |
| Number of 2.5" bays | 3 |
| Number of expansion slots | 7 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Illumination The device has illumination. |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| Tempered glass panel(s) |
|
| Anti-dust filter |
|
| Cable management Description of improved cable management |
|
| On/off button |
|
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 38.1 cm |
| Ports & interfaces | |
| Audio output The type of audio output that the device produces, and the connector(s). |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Cooling | |
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 1 |
| Top fans diameters supported | 120,140 mm |
| Front radiator fan sizes supported | 120,140 mm |
| Rear radiator fan sizes supported | 120 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 210 mm |
| Depth The distance from the front to the back of something. | 428 mm |
| Height The measurement of the product from head to foot or from base to top. | 435 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7.5 kg |
| SKU | 345282 |
| MPN | CA-H510E-W1 |
| Brand | NZXT |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://nzxt.com/ |
