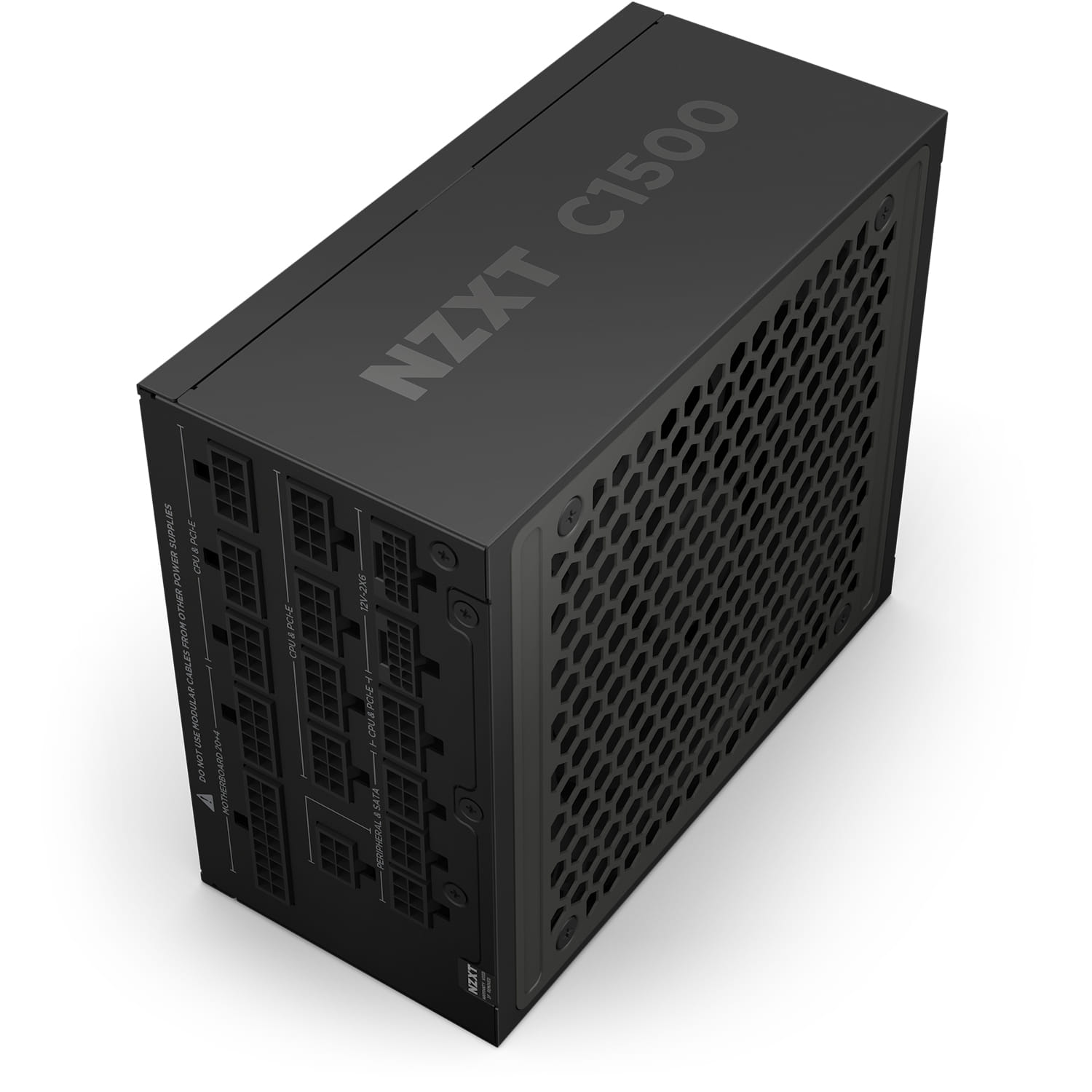

NZXT C1500 Platinum ATX 3.1, 1500 W, 100 - 240 V, 50/60 Hz, Active, 120 W, 1500 W
The NZXT C1500 Platinum PSU offers highly efficient, digitally-controlled power, ATX 3.1 compliance, and PCIe 5.1 connectivity with a high-performance magnetic levitation fan.
Future-Proof Power
ATX 3.1 and PCIe 5.1 compliance supports current and future high-performance GPUs and CPUs.
Dual PCIe 5.1 Connectors
Equipped with two 16-pin 12V-2x6 cables to power GPUs drawing more than 600 watts.
Future-Proof Power
ATX 3.1 and PCIe 5.1 compliance supports current and future high-performance GPUs and CPUs.
Dual PCIe 5.1 Connectors
Equipped with two 16-pin 12V-2x6 cables to power GPUs drawing more than 600 watts.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1500 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1500 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 125 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 94% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 150,500 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| Peripheral (Molex) power cable length | 150,500 mm |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power connectors (12+4 pin) | 2 |
| PCI Express power connectors (12+4 pin) cable length | 650 mm |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.1 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 41 dB |
| Bearing technology | MLB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 14 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan speed | 2250 - 2750 RPM |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Packaging content | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 180 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Technical details | |
| Compliance certificates | BIS, BSMI, CB, CCC, CE, Federal Communications Commission (FCC), KC, RCM, TÜV mark, UKCA, cTUVus |
| SKU | 808976 |
| MPN | PA-5P1BB-AU |
| Brand | NZXT |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Bankstown, In Stock at Castle Hill |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://nzxt.com/ |
