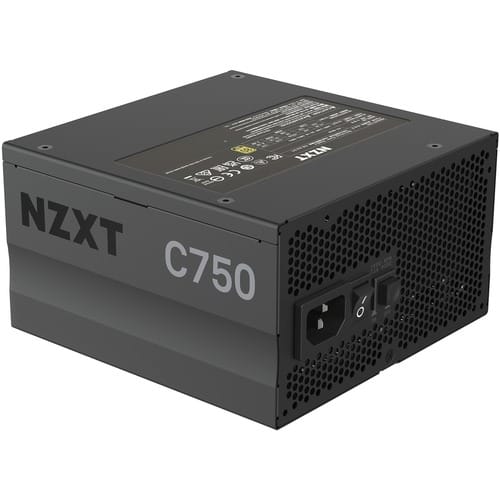

C SERIES ATX 750W 80 PLUS GOLD V2 2022 FULL MODULAR
ABOUT THE PRODUCT
C Series Gold ATX power supply from NZXT features safe, reliable power while ensuring optimal efficiency and quieter performance. Manufactured with high-quality components and backed by a 10-year warranty, the C Series Gold ATX power supplies deliver both peace of mind and up to 1000 watts of clean, reliable power to your PC gaming system
MORE EFFICIENT
At 50% load and high-line input voltage, power conversion efficiency reaches 1.5% higher than 80plus Gold Standard.
FULLY MODULAR
Use only the cables you need to keep your system clean and organized. Black sleeved cable and a matte black finish seamlessly fit any PC style.
COMPATIBLE AND HIGHLY-TESTED
C series is built and tested with strict standards for trouble-free installation and stable operation. It fits any case supporting ATX PSU and supports the latest NVIDIA and AMD GPUs up to 30 series and AMD 6000 Series
OPTIMIZED AND SILENT
Micro controller (MCU) enabled protection mechanism monitors current and voltage and output wattage.
OPTIMIZED AND SILENT
Gold PSU includes low thermal dissipation optimization with upgraded components and optimized circuit design. The cooling fan is also upgraded from 120 to 135mm PWM fan with a FDB bearing fan to ensure it can operate silently at high load. Adhesive dispensing on part of the electrical components reduces noise.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 750 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 87.5% |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150,500 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 6 |
| Peripheral (Molex) power cable length | 150,500 mm |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power cable length | 80 cm |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 70 cm |
| ATX Power connector (24-pin) |
|
| PCI Express connector |
|
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Supported motherboard form factors Design of the supported motherboards. | ATX |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 2.52 |
| EPS version | 2.92 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 44.5 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Certification | cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 13.5 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan speed | 0 - 2300 RPM |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Packaging content | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 150 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| SKU | 626472 |
| MPN | PA-7G1BB-AU |
| Brand | NZXT |
| Product Condition | Brand New/Unused |
| PSU Form Factor | N/A |
| Stock Availability | Available for Shipping |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://nzxt.com/ |
