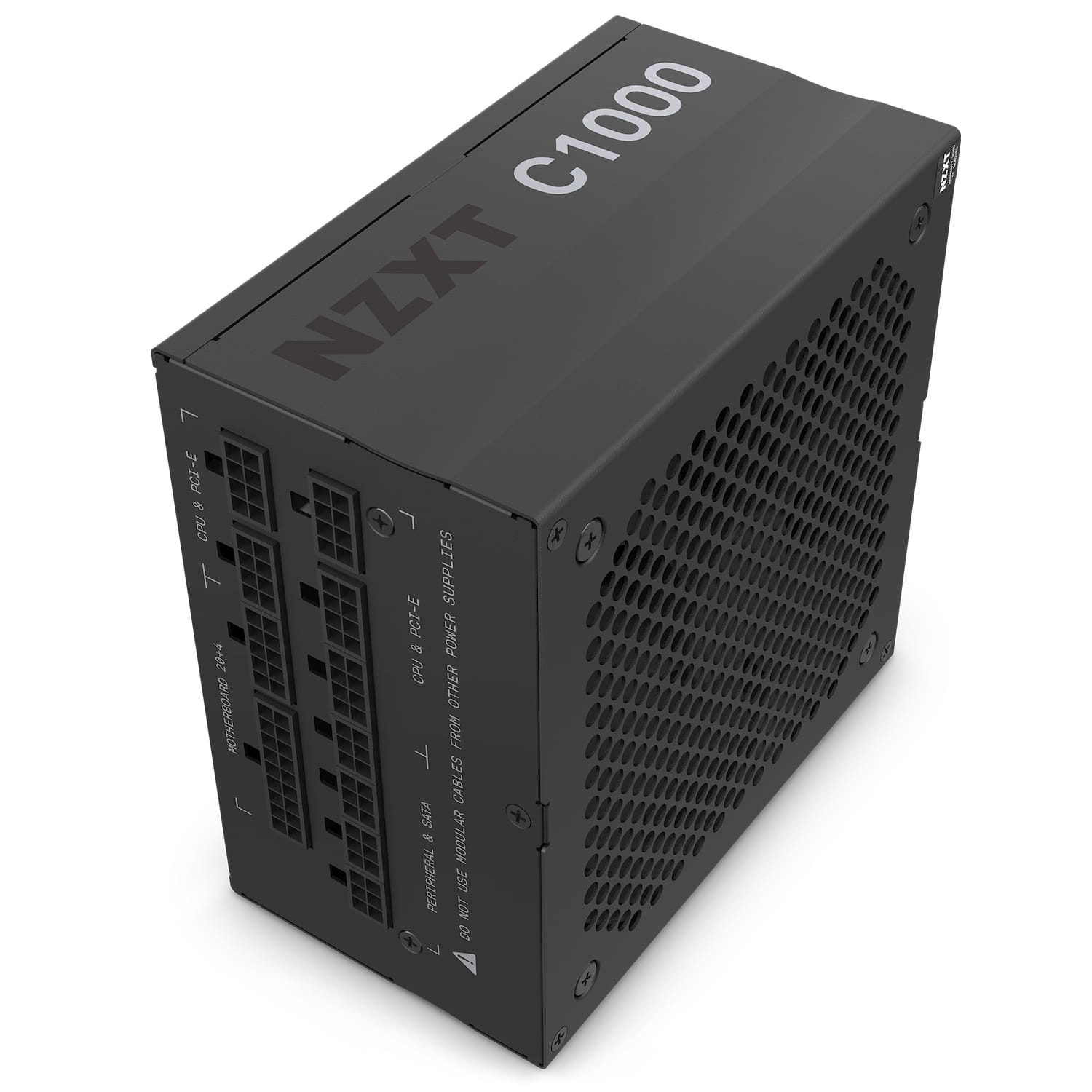

NZXT PA-0G1BB-AU, 1000 W, 100 - 240 V, 50/60 Hz, 13 - 6.5 A, Active, 120 W
This PSU delivers 1000 watts of clean, stable power and is ideal for gaming and workstation PCs that have multiple GPUs and high-performance CPUs. The C1000 supports the latest GPUs, including up to an NVIDIA RTX 3090 and AMD GPUs up to the 6900 XT.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1000 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 13 - 6.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1002 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 83.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90.5% |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150,500 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 6 |
| Peripheral (Molex) power cable length | 150,500 mm |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power cable length | 65 cm |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 70 cm |
| ATX Power connector (24-pin) |
|
| PCI Express connector |
|
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Supported motherboard form factors Design of the supported motherboards. | ATX |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 2.52 |
| EPS version | 2.92 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 44.5 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Certification | cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 13.5 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan speed | 0 - 2300 RPM |
| Illumination The device has illumination. |
 |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Packaging content | |
| Cables included | AC, CPU, PCIe, SATA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 150 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| SKU | 637889 |
| MPN | PA-0G1BB-AU |
| Brand | NZXT |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://nzxt.com/ |
