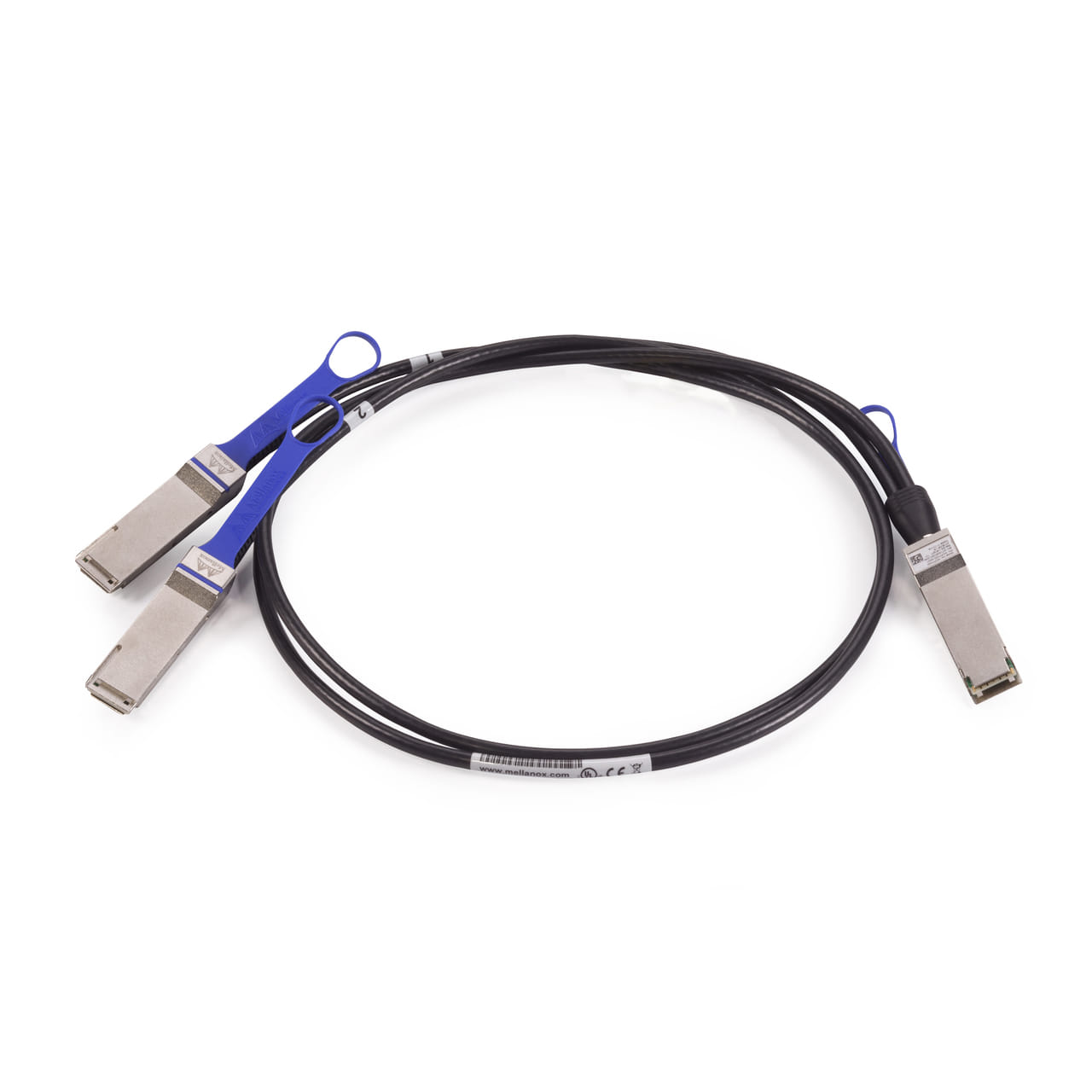

Nvidia MCP7H00-G003R30L, 3 m, QSFP28, 2xQSFP28, Male/Male, Black, 100 Gbit/s
100GbE to 2x50GbE QSFP28 to 2xQSFP28 Direct Attach Copper Splitter Cable
NVIDIA Networking passive splitter breakout cable is a high speed, cost-effective, 100GbE to 2x50GbE, Ethernet connectivity solution designed to meet the growing needs for higher bandwidth in data centers.
MCP7H00 cables are compliant with SFF-8665 QSFP28 specifications and provide connectivity between systems using a QSFP28 port one side and two QSFP28 ports on the other. MCP7H00 connects the data signals from each of the 2 dual copper pairs on the single QSFP28 (pairs 1&2, 3&4) end to the dual copper pair of each of the QSFP28 (pair 1&2) ends on the multiport side. Each QSFP28 cage comprises an EEPROM providing product information, which can be read by the host system.
NVIDIA s unique, quality, passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
NVIDIA Networking passive splitter breakout cable is a high speed, cost-effective, 100GbE to 2x50GbE, Ethernet connectivity solution designed to meet the growing needs for higher bandwidth in data centers.
MCP7H00 cables are compliant with SFF-8665 QSFP28 specifications and provide connectivity between systems using a QSFP28 port one side and two QSFP28 ports on the other. MCP7H00 connects the data signals from each of the 2 dual copper pairs on the single QSFP28 (pairs 1&2, 3&4) end to the dual copper pair of each of the QSFP28 (pair 1&2) ends on the multiport side. Each QSFP28 cage comprises an EEPROM providing product information, which can be read by the host system.
NVIDIA s unique, quality, passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
| Features | |
| Cable length How long the cable is. | 3 m |
| Connector 1 This is the first connector in the device. | QSFP28 |
| Connector 2 This is the second connector in the device. | 2xQSFP28 |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 100 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| AWG wire size | 30 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| SKU | 693470 |
| MPN | 980-9I39R-00C003 |
| Brand | nVidia |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.nvidia.com/ |
