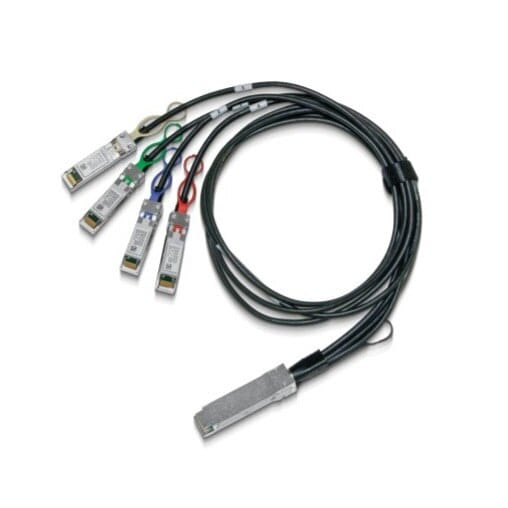

Nvidia MCP7F00-A002R30N, 2 m, QSFP28, 4xSFP28, Male, Black, 100 Gbit/s
100GbE to 4x25GbE QSFP28 to 4xSFP28 Direct Attach Copper Splitter Cable
NVIDIA Networking DAC splitter breakout cables are a high speed, cost-effective 100GbE to 4x25GbE Ethernet connectivity solution, designed to meet the growing needs for higher bandwidth in data centers.
MCP7F00-A0xxRyyz cables are compliant with SFF-8402 SFP28 and SFF-8665 QSFP28 standard specifications and provide connectivity between system units with a QSFP28 port on one side and up to four different SFP28 ports on the other. The cable connects data signals from each of the 4 copper pairs on the QSFP28 end to the single pair of each of the SFP28 ends. Each QSFP28/SFP28 port comprises an EEPROM providing product information, which can be read by the host system.
MCP7F00-A0xxRyyz cables up to 2m support IEEE 802.3by CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.by CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.
NVIDIA's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
NVIDIA Networking DAC splitter breakout cables are a high speed, cost-effective 100GbE to 4x25GbE Ethernet connectivity solution, designed to meet the growing needs for higher bandwidth in data centers.
MCP7F00-A0xxRyyz cables are compliant with SFF-8402 SFP28 and SFF-8665 QSFP28 standard specifications and provide connectivity between system units with a QSFP28 port on one side and up to four different SFP28 ports on the other. The cable connects data signals from each of the 4 copper pairs on the QSFP28 end to the single pair of each of the SFP28 ends. Each QSFP28/SFP28 port comprises an EEPROM providing product information, which can be read by the host system.
MCP7F00-A0xxRyyz cables up to 2m support IEEE 802.3by CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.by CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.
NVIDIA's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
| Features | |
| Cable length How long the cable is. | 2 m |
| Connector 1 This is the first connector in the device. | QSFP28 |
| Connector 2 This is the second connector in the device. | 4xSFP28 |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 100 Gbit/s |
| SKU | 530939 |
| MPN | MCP7F00-A002R30N |
| Brand | nVidia |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.nvidia.com/ |
