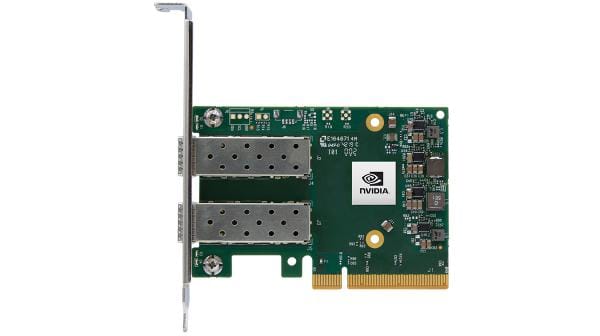

NVIDIA CONNECTX 6 LX 25G/50G Ethernet SmartNIC (PCIe HHHL/OCP3)
Line speed message rate of 75Mpps
Advanced RoCE
ASAP2 Accelerated Switching and Packet Processing
IPsec inline crypto acceleration
Overlay tunneling accelerations
Stateful rule checking for connection tracking
Hardware root of trust and secure firmware update
Best in class PTP performance
Open Data Center Committee (ODCC)compatible
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Fiber |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 2 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP28 |
| PCI version | 4.0 |
| PCI Card form factor Design of the PCI Card. | Half-height (low-profile) |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 25000 Mbit/s |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | IPSec |
| Design | |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Product colour The colour e.g. red, blue, green, black, white. | Green |
| Internal The product is built in. |
 |
| Form factor The shape or design of the product. | OCP 3.0 |
| SKU | 728216 |
| MPN | MCX631102AN-ADAT |
| Brand | nVidia |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.nvidia.com/ |
