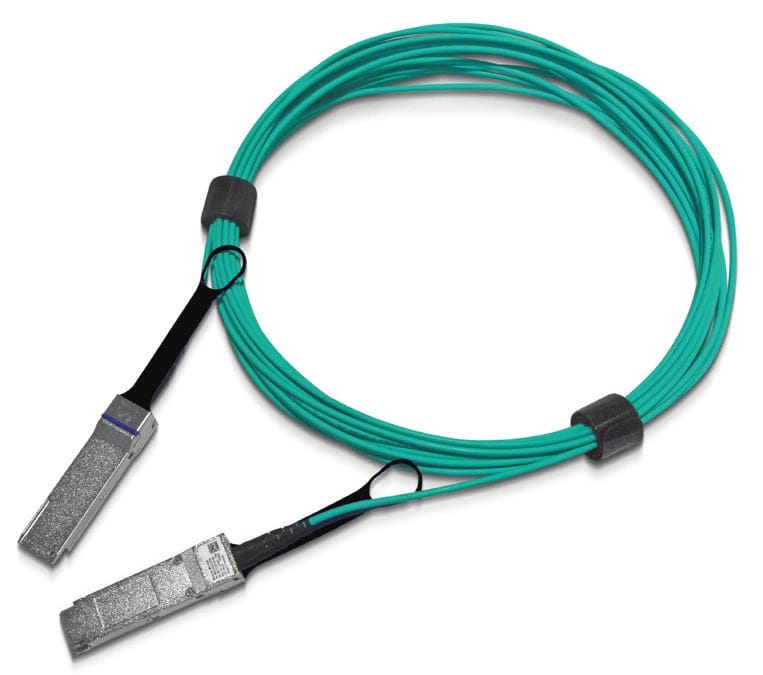

Mellanox Technologies MFS1S00, 20 m, QSFP56, QSFP56, Male/Male, 200 Gbit/s
Mellanox MFS1S00-HxxxE is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s InfiniBand HDR systems. The MFS1S00 AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.
MFS1S00 has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end; each operating at data rates of up to 50Gb/s. MFS1S00 offers selectable retiming per lane for both its optical transmitters and receivers up to 50Gbp/s rates.
Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability. Mellanox
MFS1S00 has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end; each operating at data rates of up to 50Gb/s. MFS1S00 offers selectable retiming per lane for both its optical transmitters and receivers up to 50Gbp/s rates.
Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability. Mellanox
| Features | |
| Cable length How long the cable is. | 20 m |
| Connector 1 This is the first connector in the device. | QSFP56 |
| Connector 2 This is the second connector in the device. | QSFP56 |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 200 Gbit/s |
| SKU | 751328 |
| MPN | MFS1S00-H020E |
| Brand | nVidia |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.nvidia.com/ |
