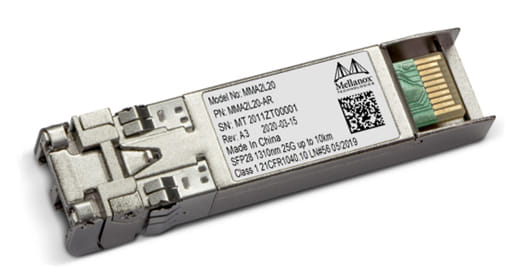

Nvidia MMA2L20 AR, Fiber optic, 25000 Mbit/s, SFP28, LC (UPC), 10000 m, 1310 nm
The NVIDIA MMA2L20 AR 25Gb/s transceiver module is designed for optical communication applications and is compliant with the IEEE 802.3 standard for 25G Ethernet 25GBASE LR, and backward compatible with 10G SFP pluggable.
The central wavelength is 1310 nm. The high performance transmitter and high sensitivity PIN receiver provide superior performance for 25 Gigabit Ethernet applications with up to 10 km links and compliant to optical interface with IEEE802.3cc.
The MMA2L20 transceiver is designed with form factor, optical/electrical connection, and digital diagnostic interface according to the SFP28 Multi Source Agreement (MSA) [1].
The transceiver's electrical interface is compliant with the OSI CEI VSR 28G VSR standard.
The transceiver is designed to meet the industrial standard operating conditions including temperature, humidity and EMI interference.
The optical connector is a duplex LC/UPC (un angled) connector intended for a pair of single mode fibers.
Rigorous production testing ensures the best out of the box installation experience, performance, and durability.
The central wavelength is 1310 nm. The high performance transmitter and high sensitivity PIN receiver provide superior performance for 25 Gigabit Ethernet applications with up to 10 km links and compliant to optical interface with IEEE802.3cc.
The MMA2L20 transceiver is designed with form factor, optical/electrical connection, and digital diagnostic interface according to the SFP28 Multi Source Agreement (MSA) [1].
The transceiver's electrical interface is compliant with the OSI CEI VSR 28G VSR standard.
The transceiver is designed to meet the industrial standard operating conditions including temperature, humidity and EMI interference.
The optical connector is a duplex LC/UPC (un angled) connector intended for a pair of single mode fibers.
Rigorous production testing ensures the best out of the box installation experience, performance, and durability.
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 25000 Mbit/s |
| Interface type | SFP28 |
| Single-mode fiber (SMF) supported |
 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | LC (UPC) |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 10000 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 1310 nm |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 3.6 V |
| Operational conditions | |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| SKU | 728870 |
| MPN | MMA2L20-AR |
| Brand | nVidia |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
