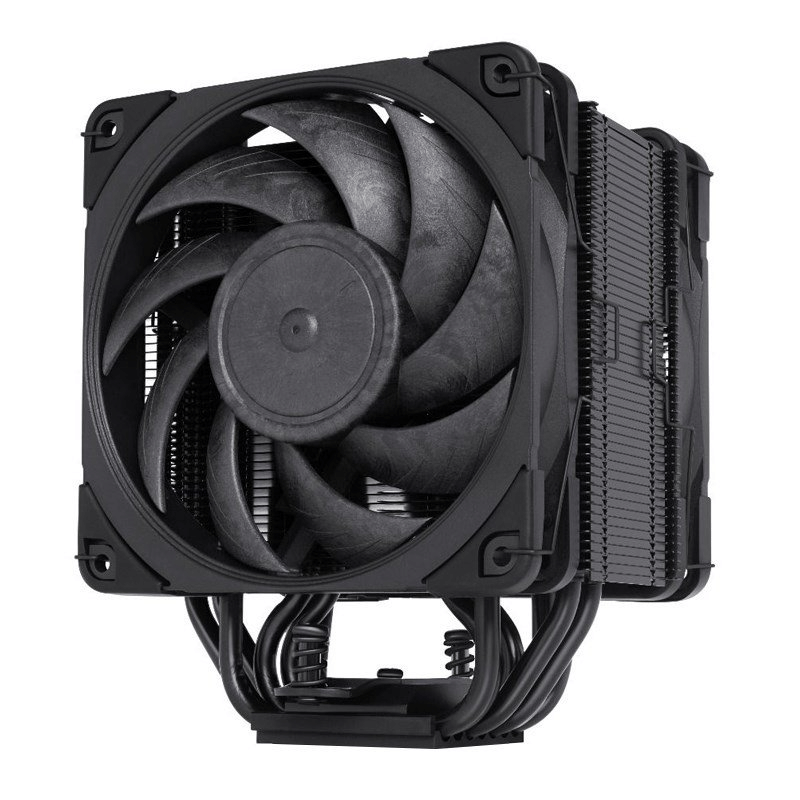

Chromax Black - Socket compatibility: Intel LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA2066, AMD AM4, AM3(+), AM2(+), FM1, FM2(+) - Dimensions w/o fan (HxWxD): 158x125x58mm - Dimensions with fan (HxWxD): 158x125x112mm - Fan compatibility: 120x120x25 - Fan Max. rotational speed (+/- 10%): 2000RPM - NH-U12A-CH-BK
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Air cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Rotational speed (min) | 450 RPM |
| Rotational speed (max) | 2000 RPM |
| Rotational speed with LNA (max) | 1700 RPM |
| Noise level (low speed) | 22.6 dB |
| Noise level with LNA (max) | 18.8 dB |
| Airflow | 102.1 m³/h |
| Airflow with LNA (max) | 84.5 m³/h |
| Bearing type | Self-Stabilising Oil-pressure (SSO) bearing |
| Quantity per pack | 1 pc(s) |
| Fan's mean time to failure (MTTF) | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminium, Copper, Nickel |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Power | |
| Voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 125 mm |
| Depth The distance from the front to the back of something. | 112 mm |
| Height The measurement of the product from head to foot or from base to top. | 158 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.22 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Technical details | |
| Warranty period | 6 year(s) |
| Packaging content | |
| Cables included | 4-pin |
| Mounting kit |
 |
| SKU | 553203 |
| MPN | NH-U12A-CH-BK |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
| Stock Availability | Available for Shipping, In Stock at Castle Hill |
