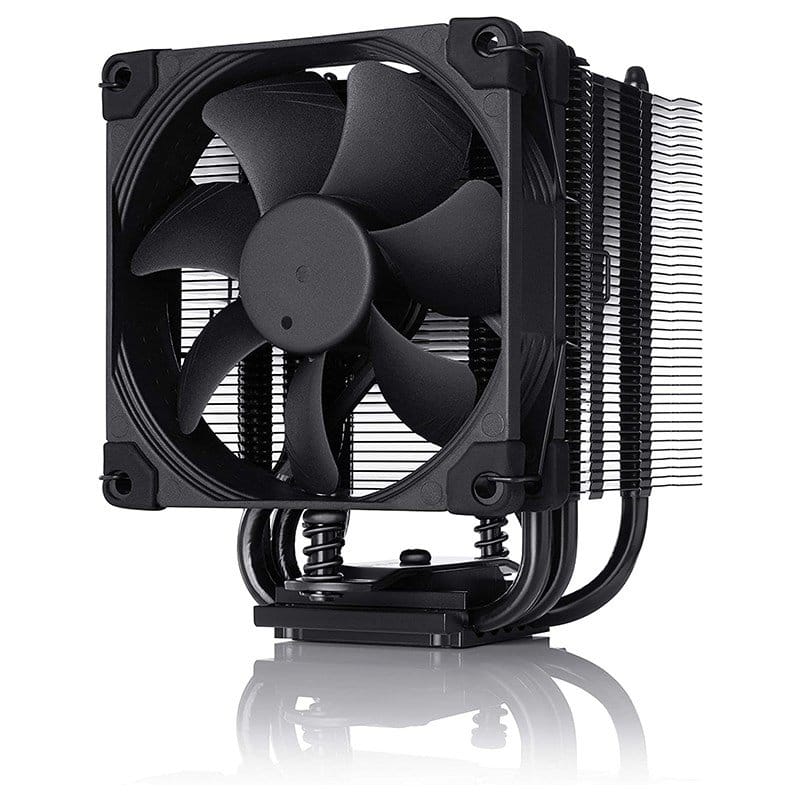

Chromax Black - Socket Compatibility: Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200 LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 - Height (With Fan): 125mm - Fan: 1x Noctua NF-A9 PWM Chromax.black - Max Fan Speed: 2000RPM (+/- 10%) - Max dBA: 22.8
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 9.2 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Rotational speed (min) | 400 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 22.8 dB |
| Airflow | 78.9 m³/h |
| Bearing type | Self-Stabilising Oil-pressure (SSO) bearing |
| Quantity per pack | 1 pc(s) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Chrome |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminium, Copper |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 7 |
| Number of heat pipes | 5 |
| Fan connector | 4-pin |
| Power | |
| Voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 95 mm |
| Depth The distance from the front to the back of something. | 68 mm |
| Height The measurement of the product from head to foot or from base to top. | 125 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 524 g |
| Fan dimensions (W x D x H) | 95 x 95 x 25 mm |
| Fan weight | 90 g |
| Package width The distance from one side of the packaging to the other. | 160 mm |
| Package depth The distance from the front to the back of the packaging. | 167 mm |
| Package height The distance from the top to the bottom of the packaging. | 180 mm |
| Package weight Weight of the packaged product. | 1.26 kg |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Mounting kit |
 |
| Screws included |
|
| SKU | 510929 |
| MPN | NH-U9S-CH-BK |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 125mm |
| Cooling Technology | Air |
| Stock Availability | Available for Shipping |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://noctua.at/ |
