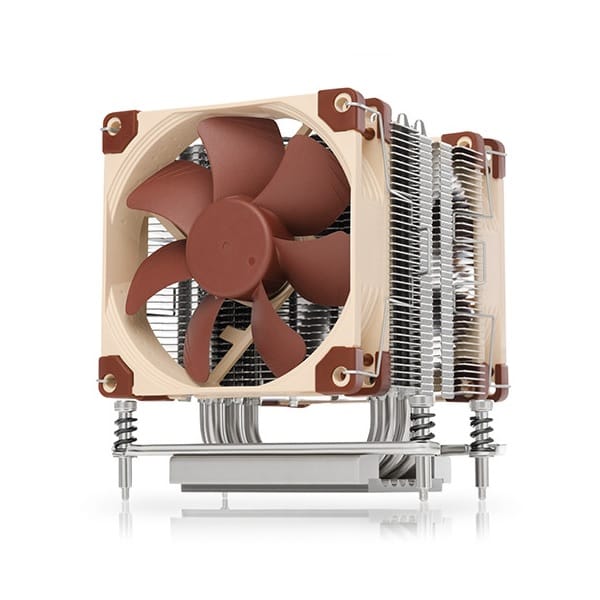

Manufacturer: Noctua. Having received more than 300 awards and recommendations from international hardware websites and magazines, Noctuas NH-U9 line has become a benchmark for compact 92mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMDs TR4/SP3 platform (Ryzen Threadripper/Epyc) and features a larger contact surface as well as the latest SecuFirm2 mounting system for socket TR4/SP3. Topped off with two of the renowned quiet NF-A9 PWM 92mm fans in a push/pull dual fan configuration, Noctuas proven NT-H1 thermal compound and a full 6-year manufacturers warranty, the NH-U9 TR4-SP3 forms a highly compact, premium-quality solution that combines outstanding performance, superb acoustics and excellent compatibility for space-restricted TR4/SP3 systems.
Highlights:
* Cooler height: 125mm.
* Cooler width: 195mm.
* Cooler length: 120mm.
* Socket compatibility: AMD TR4 & SP3.
* Included fan model(s): 2x Noctua NF-A9 PWM.
* Warranty: 6 years.
Would you like to know more? Check out the full product information page.
Highlights:
* Cooler height: 125mm.
* Cooler width: 195mm.
* Cooler length: 120mm.
* Socket compatibility: AMD TR4 & SP3.
* Included fan model(s): 2x Noctua NF-A9 PWM.
* Warranty: 6 years.
Would you like to know more? Check out the full product information page.
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 9.2 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Socket TR4, Socket SP3 |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | AMD Ryzen |
| Rotational speed (min) | 400 RPM |
| Rotational speed (max) | 2000 RPM |
| Rotational speed with LNA (max) | 1550 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 22.8 dB |
| Noise level with LNA (max) | 16.3 dB |
| Airflow | 78.9 m³/h |
| Airflow with LNA (max) | 62.6 m³/h |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Aluminium, Beige |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Copper |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Number of fan blades | 7 |
| Fan connector | 4-pin |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 1.2 W |
| Voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 125 mm |
| Depth The distance from the front to the back of something. | 119 mm |
| Height The measurement of the product from head to foot or from base to top. | 95 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 855 g |
| Fan dimensions (W x D x H) | 92 x 92 x 25 mm |
| Heatsink weight | 660 g |
| Package width The distance from one side of the packaging to the other. | 175 mm |
| Package depth The distance from the front to the back of the packaging. | 135 mm |
| Package height The distance from the top to the bottom of the packaging. | 185 mm |
| Package weight Weight of the packaged product. | 1.2 kg |
| Packaging content | |
| Low-noise adaptor (LNA) |
|
| Other features | |
| Heatsink dimensions (W x D x H) | 125 x 71 x 95 mm |
| Mean time to failure (MTTF) | 150000 h |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case gross weight | 15.5 kg |
| Products per master (outer) case | 12 pc(s) |
| SKU | 324576 |
| MPN | NH-U9-TR4-SP3 |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Cooling Technology | Air |
| Stock Availability | Available for Shipping |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
