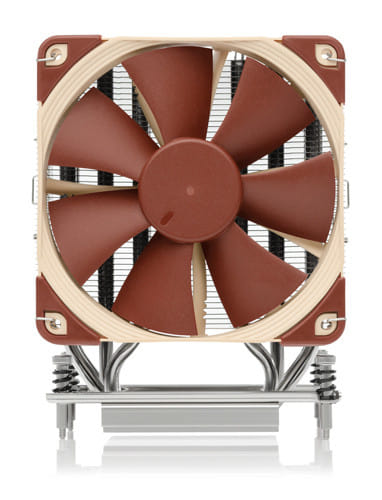

Manufacturer: Noctua. Continuing the legacy of Noctuas classic NH-U-series, which has received more than a thousand awards and recommendations from international hardware websites and magazines, the NH-U12S has become a benchmark for slim, highly compatible 120mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMDs TR4/SP3 platform (Ryzen Threadripper/Epyc) and features a larger contact surface as well as the latest SecuFirm2 mounting system for socket TR4/SP3. Topped off with the renowned quiet NF-F12 PWM 120mm fan, Noctuas proven NT-H1 thermal compound and a full 6-year manufacturers warranty, the NH-U12S TR4-SP3 forms a complete premium-quality solution that combines outstanding performance, superb acoustics and excellent compatibility for high-end TR4/SP3 systems.
Highlights:
* Cooler height: 158mm.
* Cooler width: 125mm.
* Cooler length: 71mm.
* Socket compatibility: AMD TR4/SP3.
* Included fan model(s): 1x Noctua NF-F12 PWM.
* Warranty: 6 years.
Would you like to know more? Check out the full product information page.
Highlights:
* Cooler height: 158mm.
* Cooler width: 125mm.
* Cooler length: 71mm.
* Socket compatibility: AMD TR4/SP3.
* Included fan model(s): 1x Noctua NF-F12 PWM.
* Warranty: 6 years.
Would you like to know more? Check out the full product information page.
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Socket TR4, Socket SP3 |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | AMD Ryzen |
| Rotational speed (min) | 300 RPM |
| Rotational speed (max) | 1500 RPM |
| Rotational speed with LNA (max) | 1200 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 22.4 dB |
| Noise level with LNA (max) | 18.6 dB |
| Airflow | 93.4 m³/h |
| Airflow with LNA (max) | 74.3 m³/h |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Aluminium, Beige |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Copper |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 7 |
| Fins material | Aluminium |
| Fan connector | 4-pin |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 0.6 W |
| Voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 125 mm |
| Depth The distance from the front to the back of something. | 71 mm |
| Height The measurement of the product from head to foot or from base to top. | 158 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 870 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heatsink weight | 695 g |
| Package width The distance from one side of the packaging to the other. | 212 mm |
| Package depth The distance from the front to the back of the packaging. | 106 mm |
| Package height The distance from the top to the bottom of the packaging. | 196 mm |
| Package weight Weight of the packaged product. | 1.26 kg |
| Packaging content | |
| Low-noise adaptor (LNA) |
|
| Other features | |
| Heatsink dimensions (W x D x H) | 125 x 45 x 158 mm |
| Mean time to failure (MTTF) | 150000 h |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case gross weight | 13.6 kg |
| Products per master (outer) case | 10 pc(s) |
| SKU | 324527 |
| MPN | NH-U12S-TR4-SP3 |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Cooling Technology | Air |
| Stock Availability | Available for Shipping |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
