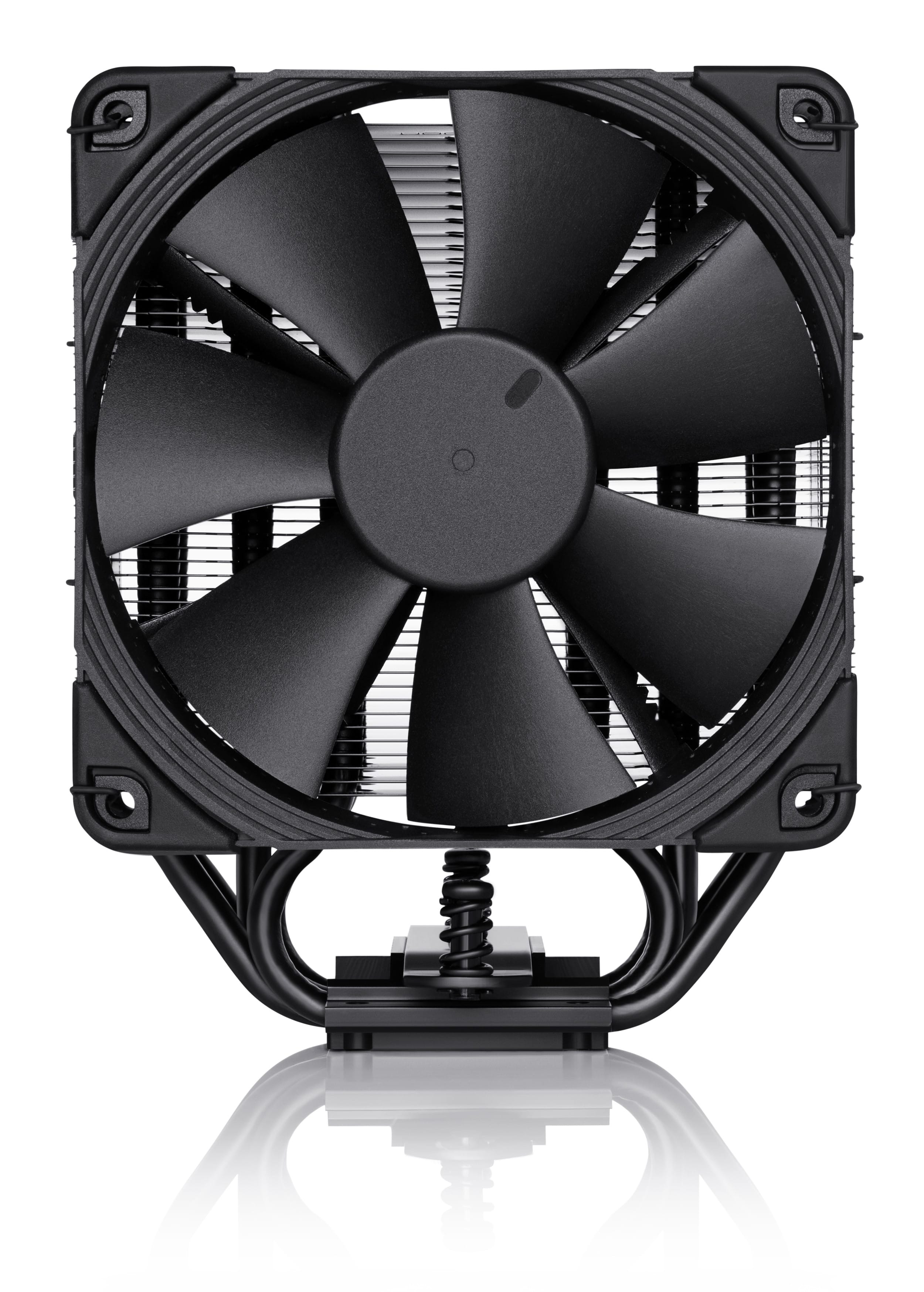

The NH-U12S chromax.black is an all-black version of Noctua

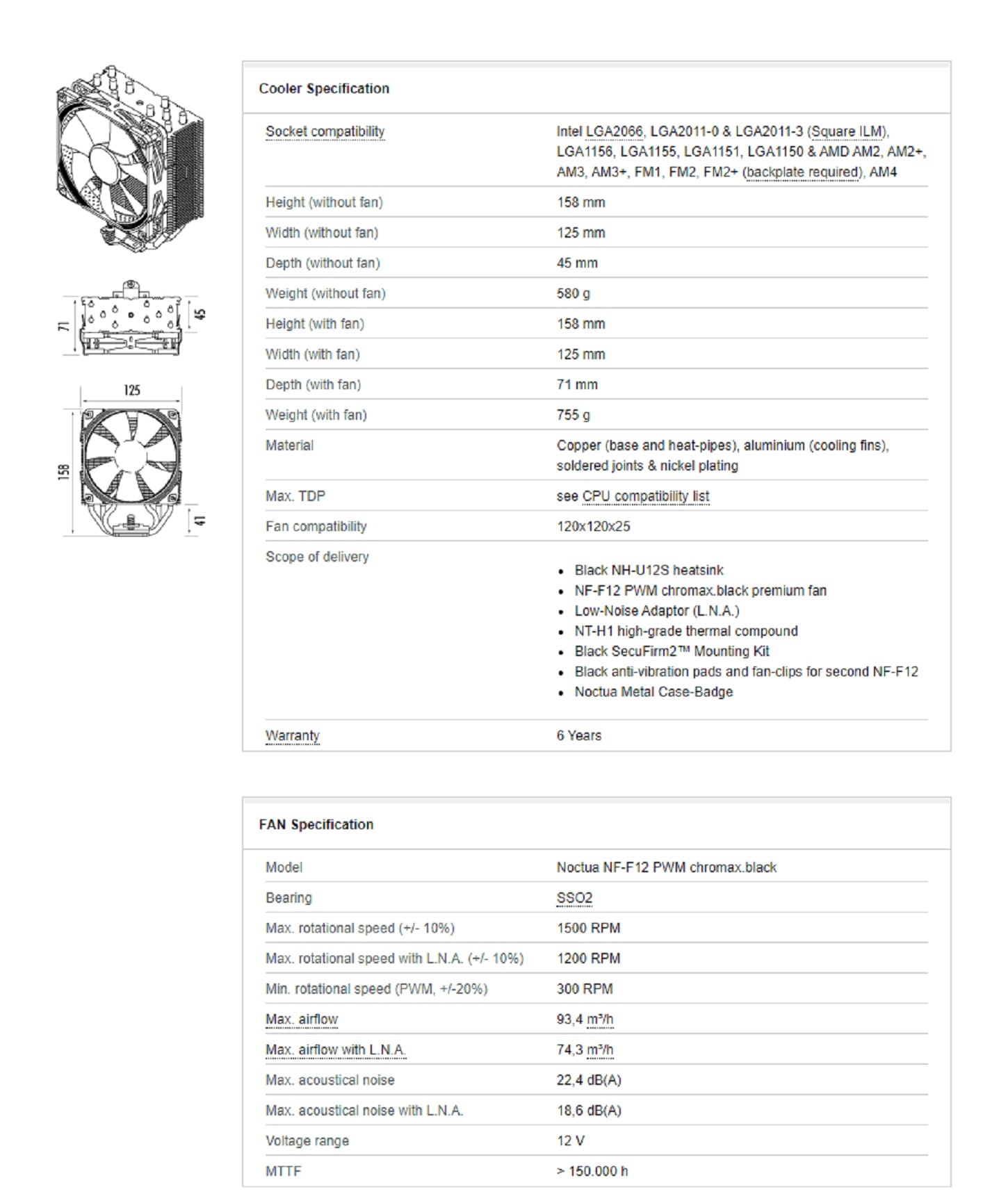

| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM1, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | AMD A, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Rotational speed (min) | 300 RPM |
| Rotational speed (max) | 1500 RPM |
| Rotational speed with LNA (max) | 1200 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 22.4 dB |
| Noise level with LNA (max) | 18.6 dB |
| Airflow | 93.4 m³/h |
| Airflow with LNA (max) | 74.3 m³/h |
| Maximum air pressure | 2.61 mmH2O |
| Maximum air pressure with LNA | 1.83 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Base plate material | Copper |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fins material | Aluminium |
| Fan connector | 4-pin |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 0.6 W |
| Rated voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 125 mm |
| Depth The distance from the front to the back of something. | 71 mm |
| Height The measurement of the product from head to foot or from base to top. | 158 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 755 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heatsink weight | 580 g |
| Package width The distance from one side of the packaging to the other. | 169 mm |
| Package depth The distance from the front to the back of the packaging. | 145 mm |
| Package height The distance from the top to the bottom of the packaging. | 212 mm |
| Package weight Weight of the packaged product. | 1.44 kg |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Other features | |
| Heatsink dimensions (W x D x H) | 125 x 45 x 158 mm |
| Mean time to failure (MTTF) | 150000 h |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 460 mm |
| Master (outer) case gross weight | 18.5 kg |
| Products per master (outer) case | 12 pc(s) |
| SKU | 371238 |
| MPN | NH-U12S-CH-BK |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Cooling Technology | Air |
| Stock Availability | In Stock at Castle Hill |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
