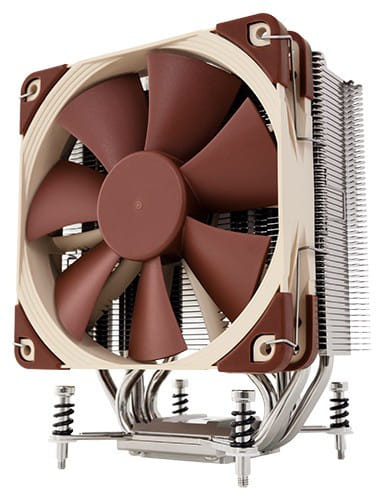

For Xeon Sockets LGA2011, LGA1356 & LGA1366
Manufacturer: Noctua. Designed in Austria, Noctuas premium cooling solutions are internationally renowned for their low noise, exceptional performance and outstanding quality. Having received more than one thousand awards and recommendations from leading hardware websites and magazines, Noctua is the most acclaimed manufacturer of premium quality quiet cooling solutions and the number one choice for silent, high performance PC builds.
Noctuas DX line of coolers has become a default choice in high performance quiet cooling solutions for Intel Xeon CPUs. The latest i4 revision supports LGA2011 (both Square ILM and Narrow ILM), LGA1356 and LGA1366 based Xeon platforms and the 12cm model NH-U12DX i4 comes equipped with Noctuas award winning NF-F12 focused flow fan with PWM for automatic speed control. Due to its slim design, the NH-U12DX i4 now provides easy access to the memory slots and better compatibility with tall modules. Fitted with the professional SecuFirm2 mounting system and bundled with Noctuas industrial grade NT-H1 thermal compound, the NH-U12DX i4 forms a complete premium quality package for quietly cooling Xeon based workstations and servers.
Highlights:
* Manufacturers model code: NH-U12DX i4.
* Market orientation: Server.
* Cooler type: Tower.
* Number of heatpipes: 4.
* Heatsink material: Copper (base & heatpipes), aluminium (fins), soldered joints & nickel plating.
* Cooler height: 158mm.
* Cooler width: 125mm.
* Cooler length: 71mm.
* Intel socket compatibility: Intel LGA2011 (Square & Narrow ILM), LGA1356 & LGA1366 with Xeon backplate.
* Included fan model(s): 120mm Noctua NF-F12 PWM.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
Noctuas DX line of coolers has become a default choice in high performance quiet cooling solutions for Intel Xeon CPUs. The latest i4 revision supports LGA2011 (both Square ILM and Narrow ILM), LGA1356 and LGA1366 based Xeon platforms and the 12cm model NH-U12DX i4 comes equipped with Noctuas award winning NF-F12 focused flow fan with PWM for automatic speed control. Due to its slim design, the NH-U12DX i4 now provides easy access to the memory slots and better compatibility with tall modules. Fitted with the professional SecuFirm2 mounting system and bundled with Noctuas industrial grade NT-H1 thermal compound, the NH-U12DX i4 forms a complete premium quality package for quietly cooling Xeon based workstations and servers.
Highlights:
* Manufacturers model code: NH-U12DX i4.
* Market orientation: Server.
* Cooler type: Tower.
* Number of heatpipes: 4.
* Heatsink material: Copper (base & heatpipes), aluminium (fins), soldered joints & nickel plating.
* Cooler height: 158mm.
* Cooler width: 125mm.
* Cooler length: 71mm.
* Intel socket compatibility: Intel LGA2011 (Square & Narrow ILM), LGA1356 & LGA1366 with Xeon backplate.
* Included fan model(s): 120mm Noctua NF-F12 PWM.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
| Performance | |
| Suitable for Who can use the product, or what the product can be used for. | Processor |
| Type Characteristics of the device. | Cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1356 (Socket B2), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066 |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Intel® Xeon® |
| Rotational speed (min) | 300 RPM |
| Rotational speed (max) | 1500 RPM |
| Rotational speed with LNA (max) | 1200 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 22.4 dB |
| Noise level with LNA (max) | 18.6 dB |
| Airflow | 93.4 m³/h |
| Airflow with LNA (max) | 74.3 m³/h |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Beige, Brown, Silver |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 7 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 0.6 W |
| Voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 125 mm |
| Depth The distance from the front to the back of something. | 71 mm |
| Height The measurement of the product from head to foot or from base to top. | 158 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 755 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package width The distance from one side of the packaging to the other. | 240 mm |
| Package depth The distance from the front to the back of the packaging. | 170 mm |
| Package height The distance from the top to the bottom of the packaging. | 115 mm |
| Package weight Weight of the packaged product. | 1.26 kg |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Mounting kit |
|
| Low-noise adaptor (LNA) |
|
| Other features | |
| Anti-vibration system |
|
| Mean time to failure (MTTF) | 150000 h |
| SKU | 324499 |
| MPN | NH-U12DXi4 |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Cooling Technology | Air |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
