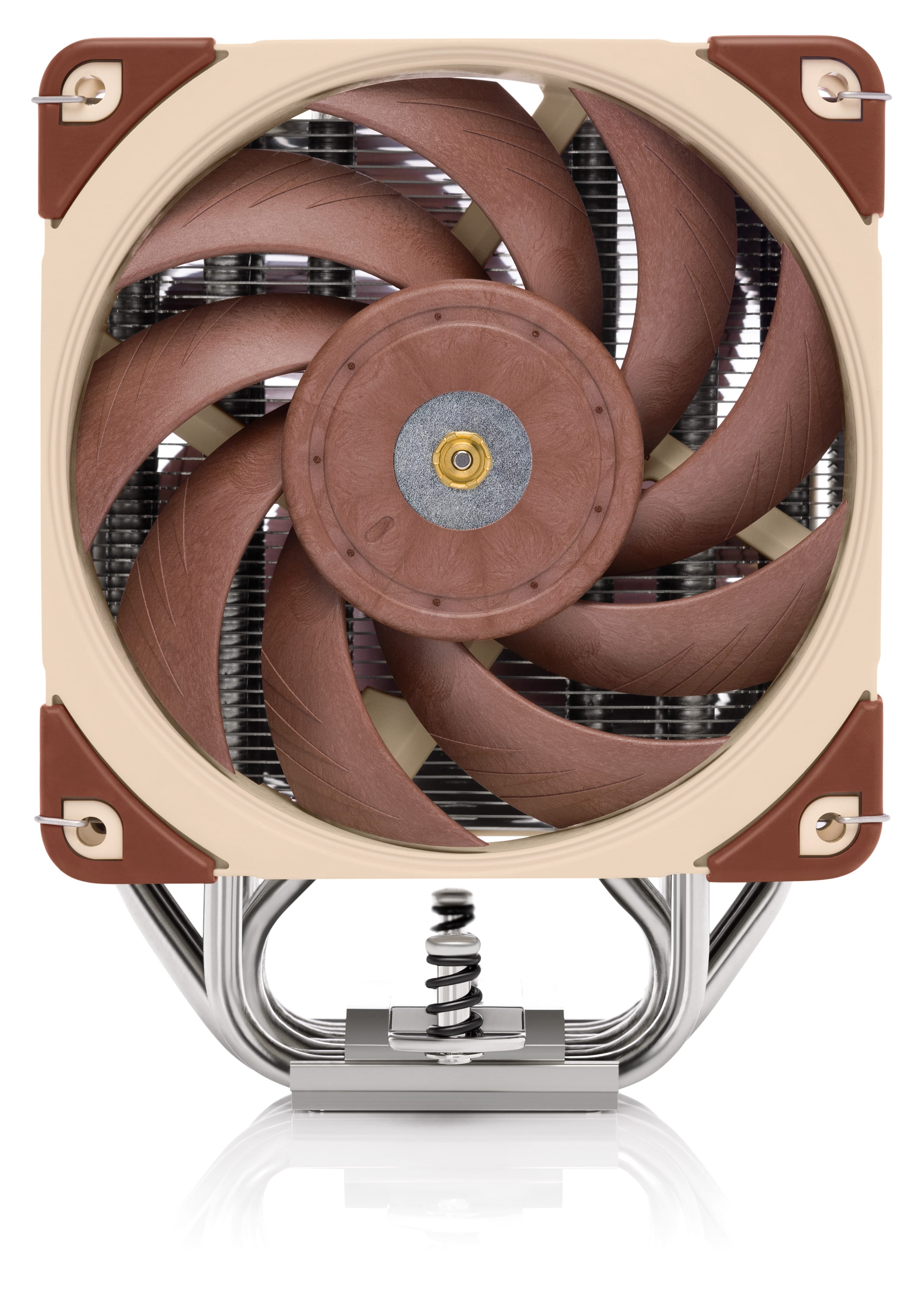

The NH-U12A is the latest, 5th generation of Noctuas award-winning NH-U12 series of 120mm size premium-quality quiet CPU coolers.

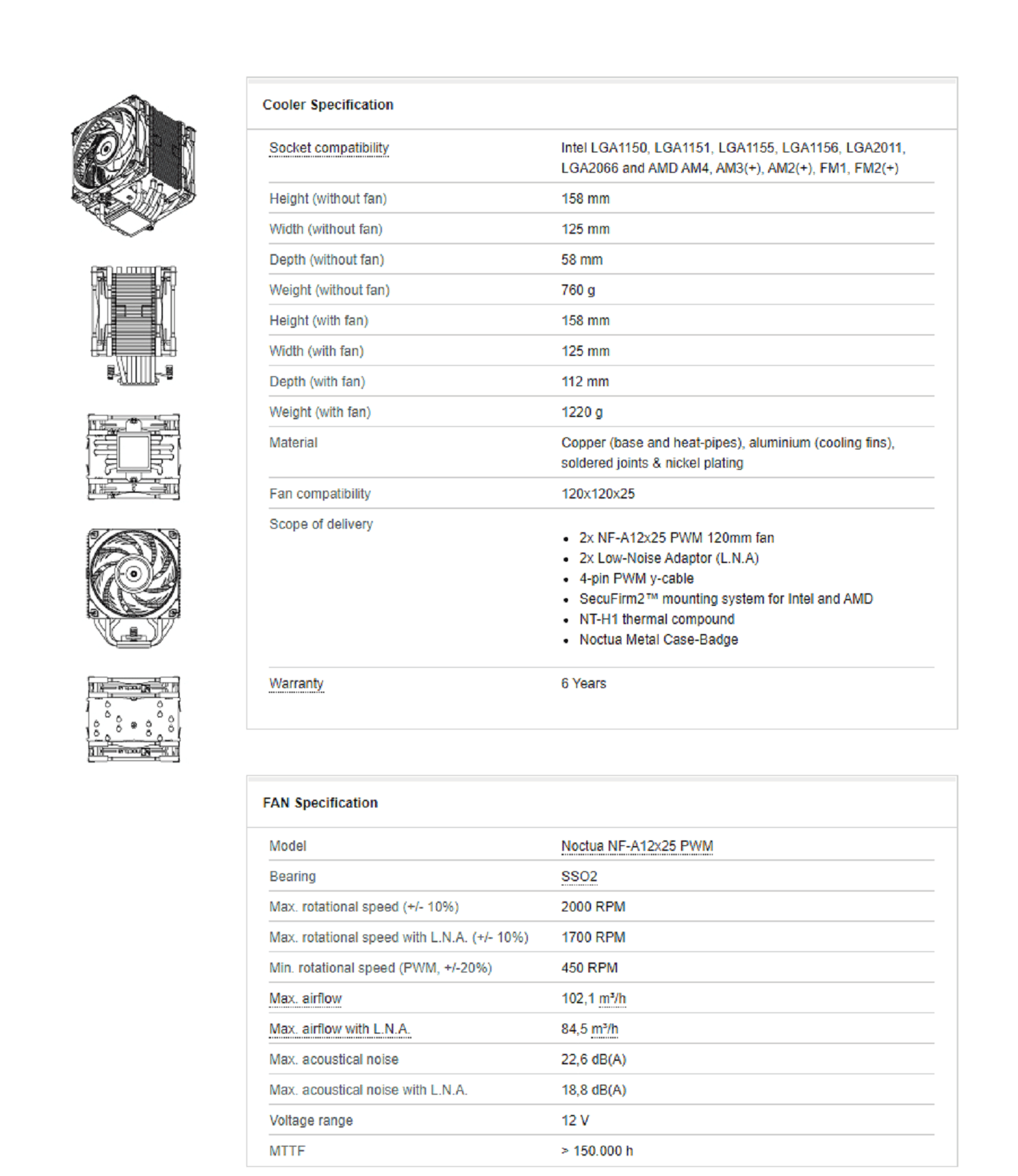

| Performance | |
| Suitable for Who can use the product, or what the product can be used for. | Processor |
| Type Characteristics of the device. | Cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200, LGA 2011 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Rotational speed (min) | 450 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (low speed) | 18.8 dB |
| Noise level (high speed) How loud the device is when used at high speed. | 22.6 dB |
| Airflow | 102.1 m³/h |
| Minimum air pressure | 1.65 mmH2O |
| Maximum air pressure | 2.34 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Self-Stabilising Oil-pressure (SSO) bearing |
| Quantity per pack | 1 pc(s) |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Beige, Brown, Silver |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Number of fan blades | 9 |
| Fan connector | 4-pin |
| Power | |
| Rated voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 125 mm |
| Depth The distance from the front to the back of something. | 112 mm |
| Height The measurement of the product from head to foot or from base to top. | 158 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.22 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Packaging content | |
| Cables included | Fan |
| Mounting kit |
|
| SKU | 361760 |
| MPN | NH-U12A |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Cooling Technology | Air |
| Stock Availability | Available for Shipping |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
