Manufacturer: Noctua. Designed in Austria, Noctuas premium cooling solutions are internationally renowned for their low noise, exceptional performance and outstanding quality. Having received more than one thousand awards and recommendations from leading hardware websites and magazines, Noctua is the most acclaimed manufacturer of premium quality quiet cooling solutions and the number one choice for silent, high performance PC builds.

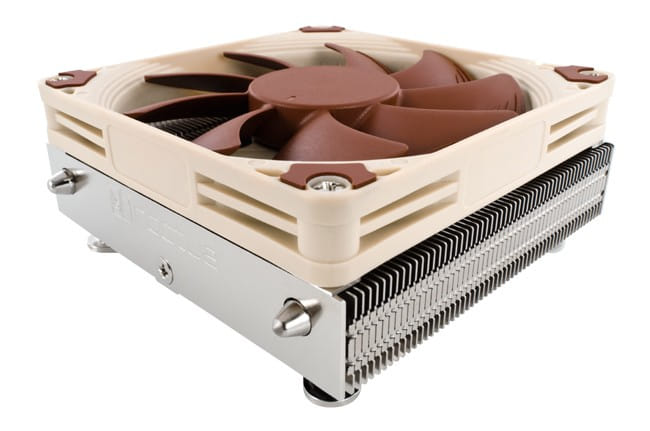

The NH-L9i is a premium quality quiet CPU cooler for Intel LGA115x based HTPCs and small form factor systems. At a super low profile of only 37mm, the NH-L9i is ideal for extremely slim cases and due to its 95x95mm footprint, it provides excellent compatibility with tall RAM modules and other components on mini ITX mainboards. The custom designed SecuFirm2 mounting system for LGA115x makes installation a childs play and thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9i runs remarkably quiet. Topped off with Noctuas renowned NT-H1 thermal compound, the NH-L9i fuses everything users have come to expect from Noctuas larger coolers into a super compact package for slim HTPC systems.
The NH-L9i is a highly compact low profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and only recommended for CPUs with up to 65W Thermal Design Power.
Highlights:
* Manufacturers model code: NH-L9i.
* Market orientation: Quiet PC, SFF and HTPC.
* Cooler type: Top flow.
* Number of heatpipes: 1.
* Heatsink material: Copper (base & heatpipes), aluminium (fins), soldered joints & nickel plating.
* Cooler height: 37mm (inc fan).
* Cooler width: 95mm.
* Cooler length: 95mm.
* Socket compatibility: Intel LGA 115x.
* Included fan model(s): 1x 92mm Noctua NF-A9x14 PWM.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & 360 degree product view.
The NH-L9i is a premium quality quiet CPU cooler for Intel LGA115x based HTPCs and small form factor systems. At a super low profile of only 37mm, the NH-L9i is ideal for extremely slim cases and due to its 95x95mm footprint, it provides excellent compatibility with tall RAM modules and other components on mini ITX mainboards. The custom designed SecuFirm2 mounting system for LGA115x makes installation a childs play and thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9i runs remarkably quiet. Topped off with Noctuas renowned NT-H1 thermal compound, the NH-L9i fuses everything users have come to expect from Noctuas larger coolers into a super compact package for slim HTPC systems.
The NH-L9i is a highly compact low profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and only recommended for CPUs with up to 65W Thermal Design Power.
Highlights:
* Manufacturers model code: NH-L9i.
* Market orientation: Quiet PC, SFF and HTPC.
* Cooler type: Top flow.
* Number of heatpipes: 1.
* Heatsink material: Copper (base & heatpipes), aluminium (fins), soldered joints & nickel plating.
* Cooler height: 37mm (inc fan).
* Cooler width: 95mm.
* Cooler length: 95mm.
* Socket compatibility: Intel LGA 115x.
* Included fan model(s): 1x 92mm Noctua NF-A9x14 PWM.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & 360 degree product view.
| Performance | |
| Suitable for Who can use the product, or what the product can be used for. | Processor |
| Type Characteristics of the device. | Cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 9.2 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1155 (Socket H2), LGA 1156 (Socket H) |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Intel® Pentium® |
| Rotational speed (min) | 300 RPM |
| Rotational speed (max) | 2500 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 23.6 dB |
| Airflow | 57.5 m³/h |
| Maximum air pressure | 2.11 mmH2O |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Beige, Brown, Silver |
| Power | |
| Voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 95 mm |
| Depth The distance from the front to the back of something. | 95 mm |
| Height The measurement of the product from head to foot or from base to top. | 23 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 345 g |
| Technical details | |
| Bearing technology | SSO2 |
| Other features | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 95 x 95 x 23 mm |
| Connector(s) | 4-pin PWM |
| Power Energy that is produced by mechanical, electrical, or other means and used to operate a device. | 2.52 W |
| SKU | 324457 |
| MPN | NH-L9I |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Cooling Technology | Air |
| Stock Availability | Available for Shipping |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
