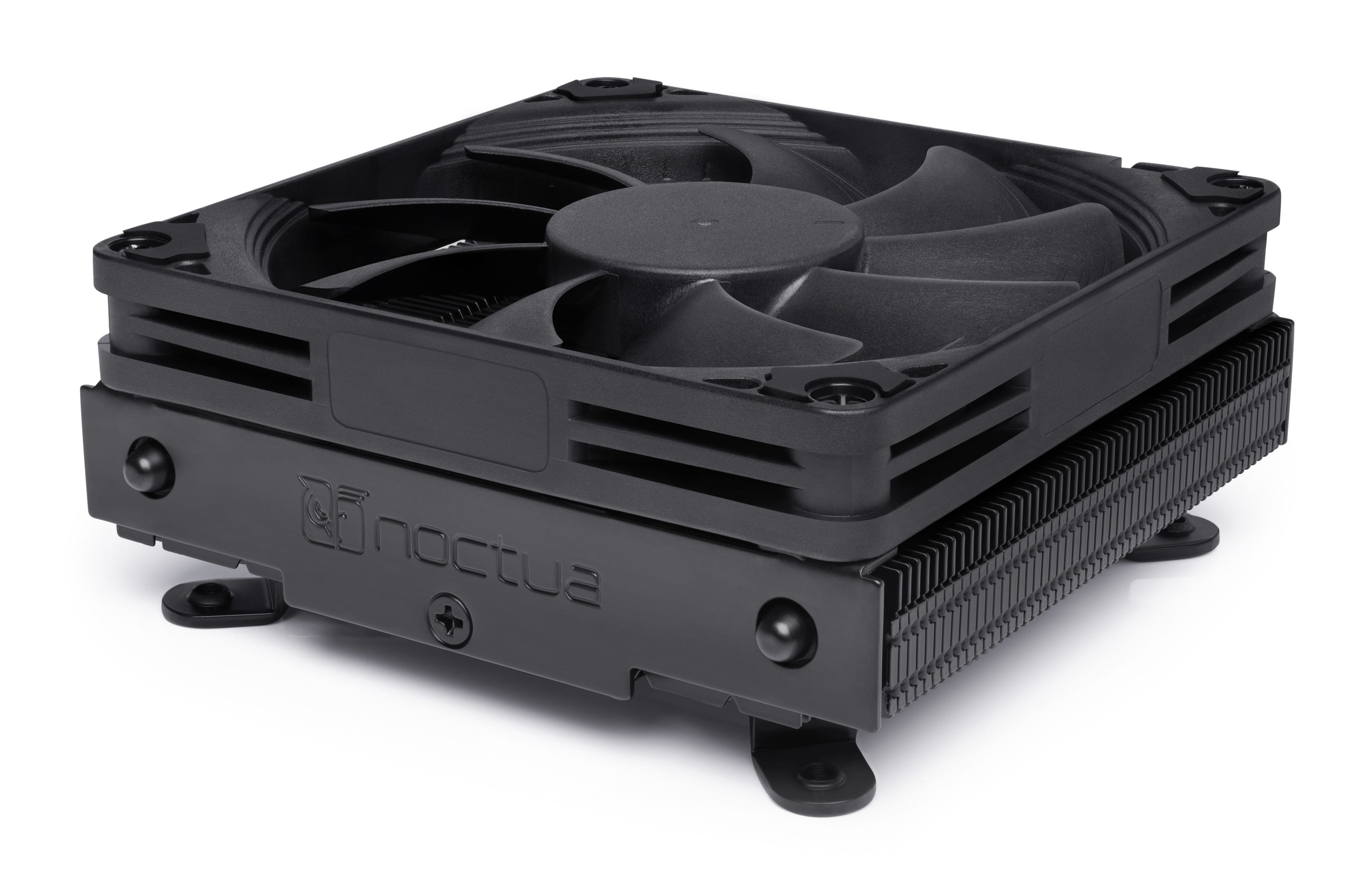

The NH-L9i is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. For socket with Intel LGA1150, LGA1151, LGA1155, LGA1156, AMD AM4 with NM-AM4-L9aL9i.

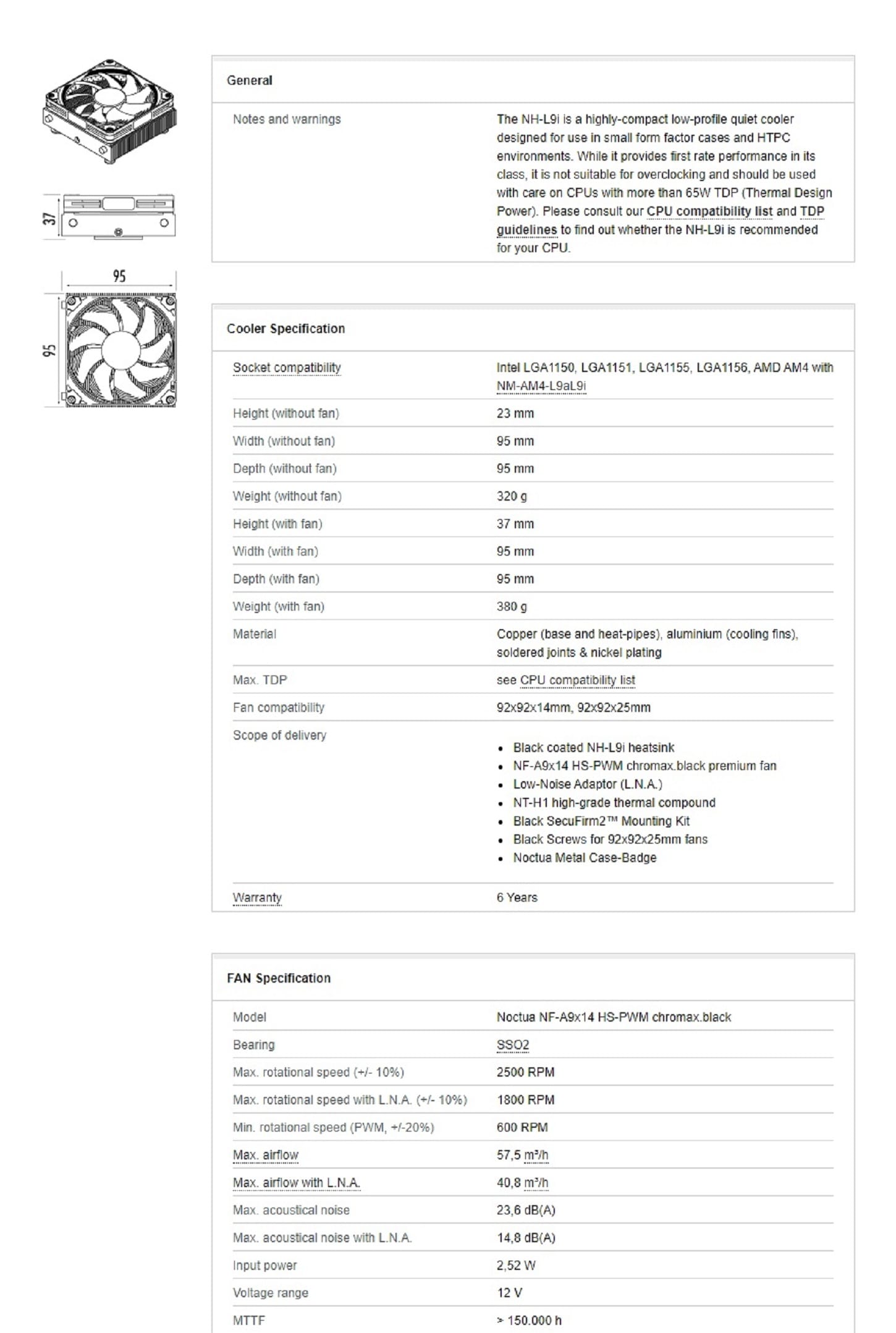

| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 9.2 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), Socket AM4 |
| Rotational speed (min) | 600 RPM |
| Rotational speed (max) | 2500 RPM |
| Rotational speed with LNA (max) | 1800 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 23.6 dB |
| Noise level with LNA (max) | 14.8 dB |
| Airflow | 57.5 m³/h |
| Airflow with LNA (max) | 40.8 m³/h |
| Maximum air pressure | 2.11 mmH2O |
| Maximum air pressure with LNA | 1.06 mmH2O |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Base plate material | Copper |
| Fins material | Aluminium |
| Fan connector | 4-pin |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 2.52 W |
| Rated voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 95 mm |
| Depth The distance from the front to the back of something. | 95 mm |
| Height The measurement of the product from head to foot or from base to top. | 37 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 380 g |
| Heatsink weight | 320 g |
| Package width The distance from one side of the packaging to the other. | 14 mm |
| Package depth The distance from the front to the back of the packaging. | 52 mm |
| Package height The distance from the top to the bottom of the packaging. | 213 mm |
| Package weight Weight of the packaged product. | 629 g |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Cables included | Fan |
| Screws included |
 |
| Other features | |
| Heatsink dimensions (W x D x H) | 95 x 95 x 23 mm |
| Mean time to failure (MTTF) | 150000 h |
| Logistics data | |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 248 mm |
| Master (outer) case height | 441 mm |
| Master (outer) case gross weight | 16.5 kg |
| Products per master (outer) case | 24 pc(s) |
| SKU | 371231 |
| MPN | NH-L9I-CH-BK |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | N/A |
| Cooling Technology | Air |
| Stock Availability | Available for Shipping |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
