Noctua L9A AM5 CH BK, Air cooler, 9.2 cm, 600 RPM, 2500 RPM, 23.6 dB, 40.8 m

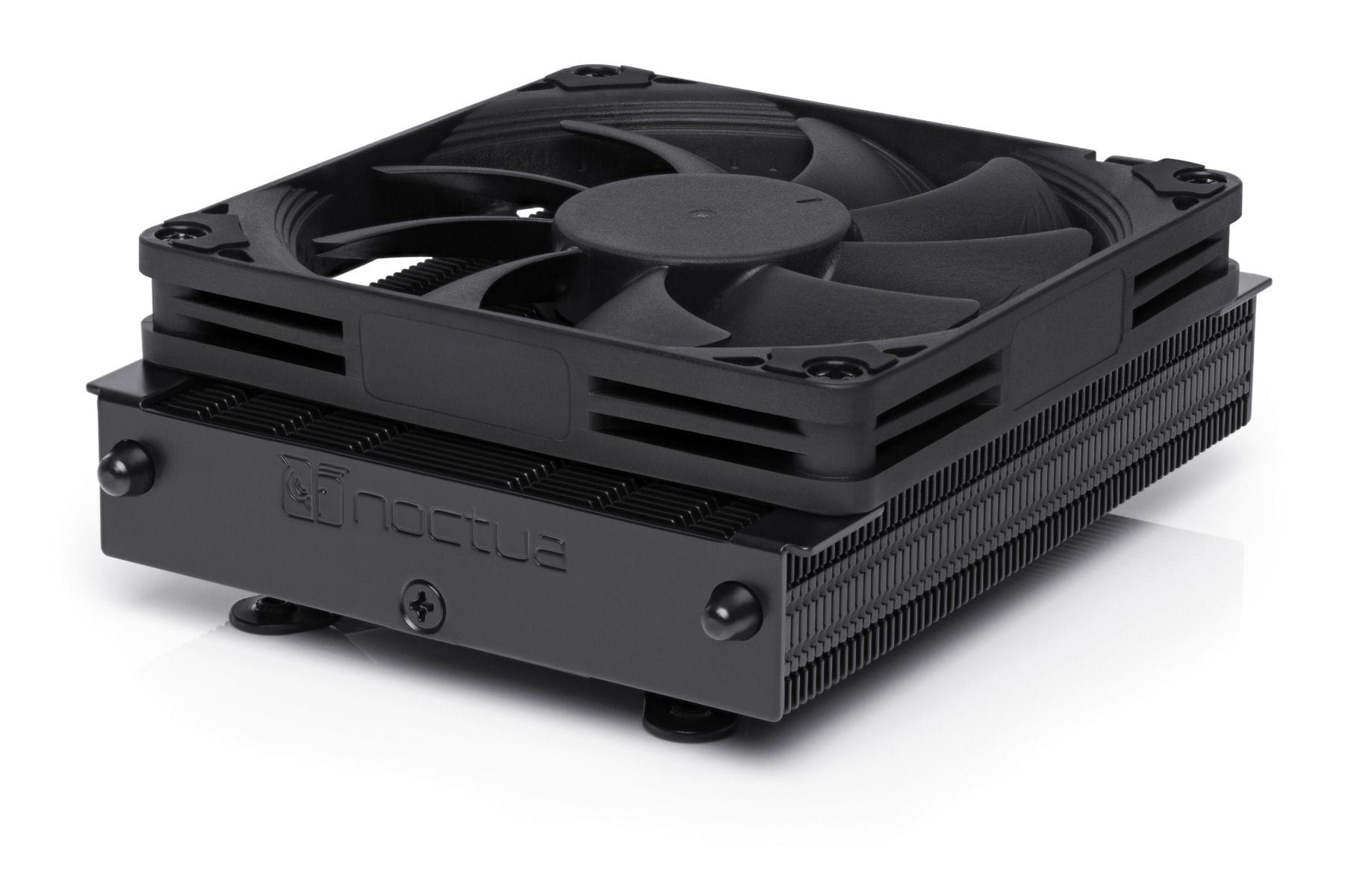

The NH L9a AM5 chromax.black is an all black version of Noctua's award winning NH L9a AM5 low profile quiet CPU cooler for AMD AM5 based HTPCs and Small Form Factor (SFF) builds. Thanks to the same proven heatsink design and NF A9x14 PWM fan, it stays true to the NH L9a AM5's successful formula of fusing a height of only 37mm with strong performance and excellent quietness of operation, as well as 100% RAM and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2 low profile mounting system for AMD AM5, Noctua's enthusiast grade NT H1 thermal compound and a full 6 year manufacturer's warranty, the NH L9a AM5 chromax.black is a premium choice for customers who seek an ultra compact heatsink that looks just as great as it cools.
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Air cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 9.2 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Socket AM5 |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | AMD A |
| Number of speeds The different speeds that the device can operate at. | 3 |
| Rotational speed (min) | 600 RPM |
| Rotational speed (max) | 2500 RPM |
| Noise level (low speed) | 14.8 dB |
| Noise level (high speed) How loud the device is when used at high speed. | 23.6 dB |
| Airflow | 40.8 m³/h |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminium, Copper |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 9 |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 2.52 W |
| Voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 114 mm |
| Radiator width | 11.4 cm |
| Radiator depth | 9.2 cm |
| Radiator height | 2.3 cm |
| Depth The distance from the front to the back of something. | 92 mm |
| Height The measurement of the product from head to foot or from base to top. | 37 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 465 g |
| Fan dimensions (W x D x H) | 92 x 92 x 25 mm |
| Fan weight | 75 g |
| Technical details | |
| Warranty period | 6 year(s) |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Mounting kit |
 |
| Screws included |
|
| Number of screws | 4 |
| SKU | 729986 |
| MPN | L9a-AM5-CH-BK |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://noctua.at/ |
| Stock Availability | In Stock at Bankstown |
