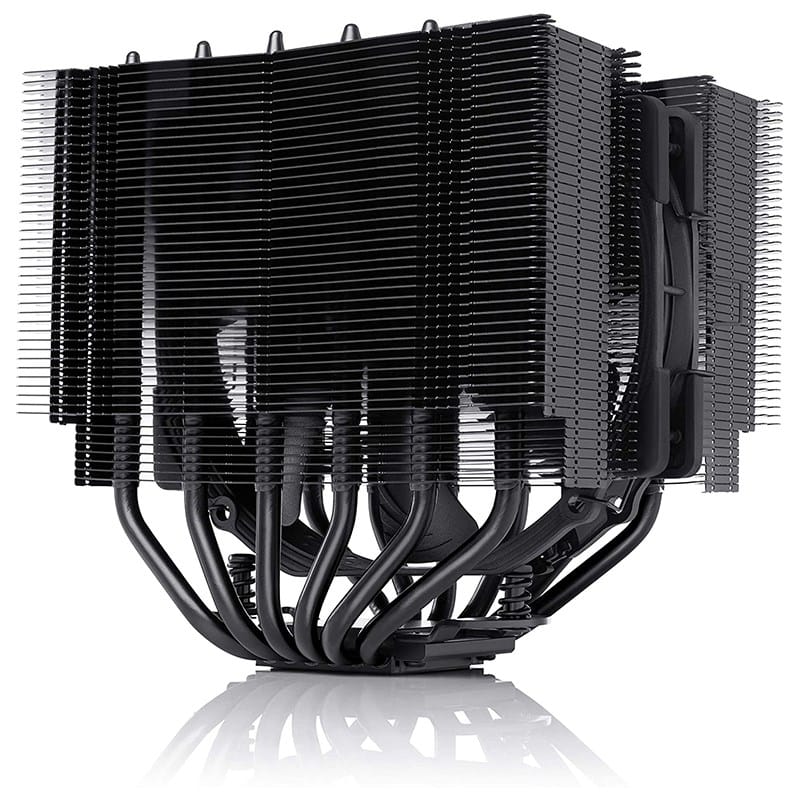

Chromax Black - Socket Compatibility: Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 - Height (With Fan): 160mm - Fan: 1x Noctua NF-A15 HS-PWM Chromax.black - Max Fan Speed: 1500RPM (+/- 10%) - Max dBA: 24.6
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 14 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM1, Socket FM2, Socket FM2+ |
| Rotational speed (min) | 300 RPM |
| Rotational speed (max) | 1500 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 24.6 dB |
| Airflow | 140.2 m³/h |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Quantity per pack | 1 pc(s) |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminium, Cooper |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of heat pipes | 6 |
| Fan connector | 4-pin |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.56 W |
| Voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 135 mm |
| Height The measurement of the product from head to foot or from base to top. | 160 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.15 kg |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Mounting kit |
|
| Screws included |
|
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| SKU | 510914 |
| MPN | NH-D15S-CH-BK |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | N/A |
| Cooling Technology | Passive |
| Stock Availability | Available for Shipping, In Stock at Bankstown |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
