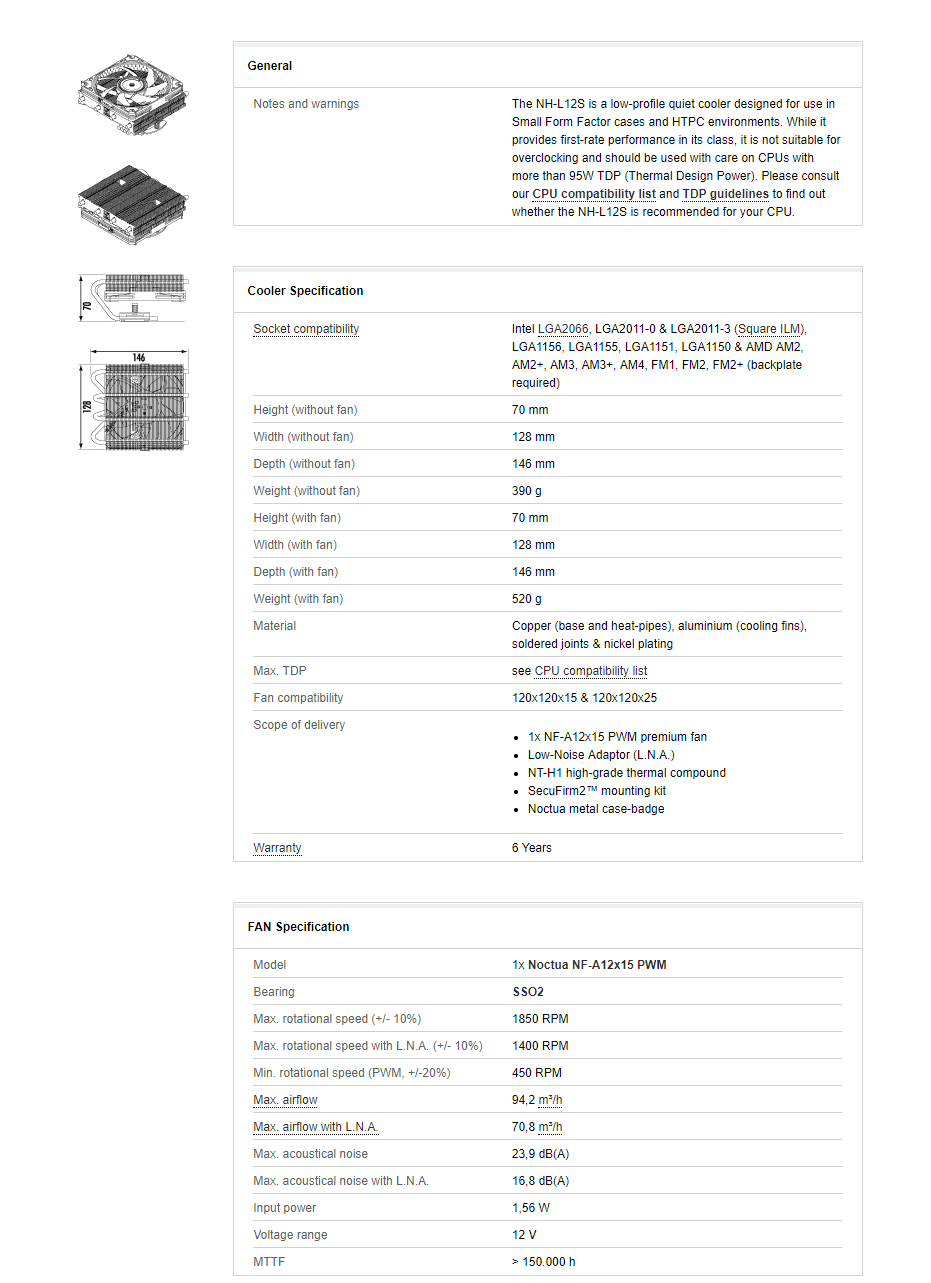

| Performance | |
| Suitable for Who can use the product, or what the product can be used for. | Processor |
| Type Characteristics of the device. | Cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | AMD A, Intel® Celeron®, Intel® Pentium® |
| Rotational speed (min) | 450 RPM |
| Rotational speed (max) | 1850 RPM |
| Rotational speed with LNA (max) | 1400 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 23.9 dB |
| Noise level with LNA (max) | 16.8 dB |
| Airflow | 94.2 m³/h |
| Airflow with LNA (max) | 70.8 m³/h |
| Maximum air pressure | 1.53 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Beige, Nickel |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminium, Copper, Nickel |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fins material | Aluminium |
| Fan connector | 4-pin |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 1.56 W |
| Voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 128 mm |
| Depth The distance from the front to the back of something. | 87 mm |
| Height The measurement of the product from head to foot or from base to top. | 146 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 520 g |
| Fan dimensions (W x D x H) | 120 x 15 x 120 mm |
| Heatsink weight | 390 g |
| Package width The distance from one side of the packaging to the other. | 142 mm |
| Package depth The distance from the front to the back of the packaging. | 146 mm |
| Package height The distance from the top to the bottom of the packaging. | 185 mm |
| Package weight Weight of the packaged product. | 1.18 kg |
| Packaging content | |
| Low-noise adaptor (LNA) |
|
| Other features | |
| Heatsink dimensions (W x D x H) | 128 x 70 x 146 mm |
| Logistics data | |
| Master (outer) case width | 30.8 cm |
| Master (outer) case length | 33 cm |
| Master (outer) case height | 40 cm |
| Master (outer) case weight | 10.2 kg |
| Quantity per master (outer) case | 8 pc(s) |
| SKU | 269073 |
| MPN | NH-L12S |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Cooling Technology | Air |
| Stock Availability | Available for Shipping, In Stock at Bankstown |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
