Manufacturer: Noctua. Designed in Austria, Noctuas premium cooling solutions are internationally renowned for their low noise, exceptional performance and outstanding quality. Having received more than one thousand awards and recommendations from leading hardware websites and magazines, Noctua is the most acclaimed manufacturer of premium quality quiet cooling solutions and the number one choice for silent, high performance PC builds.

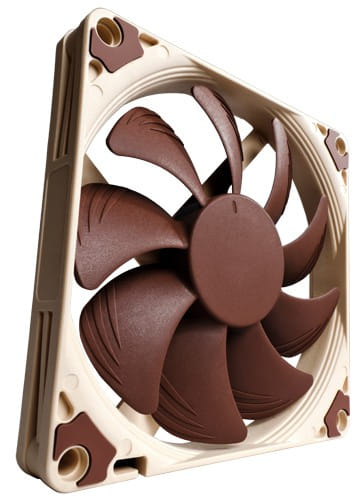

Featuring Noctuas AAO frame and sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A9x14 is a highly optimised, premium quality quiet fan in 92x14mm size. Due to its thickness of only 14mm, the NF-A9x14 is a perfect match for low profile CPU coolers and all other applications that require slimmer fans. Noctuas custom designed PWM IC for fully automatic speed control and reference class SSO2 bearings guarantee superb running smoothness and excellent long term stability. Topped off with modular cabling, a low noise adaptor and 6 years manufacturers warranty, the NF-A9x14 is a premium choice for the highest demands.
Highlights:
* Manufacturers model code: NF-A9x14 PWM.
* Market orientation: Quiet PC, cooling enthusiasts & overclockers.
* RPM: 2200.
* CFM: 29.7.
* dBA: 19.9.
* Fan width: 92mm.
* Fan depth: 14mm.
* Bearing type: SSO2 (Self Stabilising Oil v2).
* Connector: 4Pin.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page, infosheet & 360 degree product view.
Featuring Noctuas AAO frame and sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A9x14 is a highly optimised, premium quality quiet fan in 92x14mm size. Due to its thickness of only 14mm, the NF-A9x14 is a perfect match for low profile CPU coolers and all other applications that require slimmer fans. Noctuas custom designed PWM IC for fully automatic speed control and reference class SSO2 bearings guarantee superb running smoothness and excellent long term stability. Topped off with modular cabling, a low noise adaptor and 6 years manufacturers warranty, the NF-A9x14 is a premium choice for the highest demands.
Highlights:
* Manufacturers model code: NF-A9x14 PWM.
* Market orientation: Quiet PC, cooling enthusiasts & overclockers.
* RPM: 2200.
* CFM: 29.7.
* dBA: 19.9.
* Fan width: 92mm.
* Fan depth: 14mm.
* Bearing type: SSO2 (Self Stabilising Oil v2).
* Connector: 4Pin.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page, infosheet & 360 degree product view.
| Performance | |
| Suitable for Who can use the product, or what the product can be used for. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 9.2 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Not supported |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Not supported |
| Rotational speed (min) | 1700 RPM |
| Rotational speed (max) | 2200 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 19.9 dB |
| Airflow | 50.5 m³/h |
| Minimum air pressure | 0.92 mmH2O |
| Maximum air pressure | 1.64 mmH2O |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Brown |
| Power | |
| Voltage | 12 V |
| Technical details | |
| Bearing technology | SSO2 |
| Other features | |
| Power Energy that is produced by mechanical, electrical, or other means and used to operate a device. | 1.32 W |
| Compatible chipsets | Not supported |
| SKU | 324205 |
| MPN | NF-A9x14-PWM |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 92mm |
| Stock Availability | Available for Shipping |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
