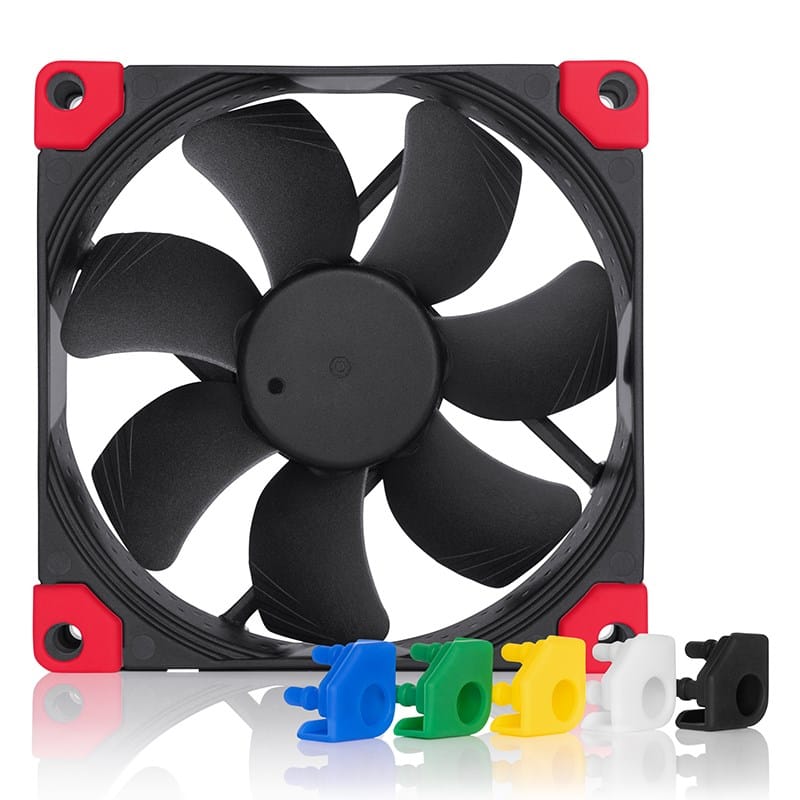

Dimensions: 92x92x25 mm - Connection: 4-Pin PWM - Cable Length: 1cm + 30cm NA-C1 Extension Cable - SSO2 Bearing - Fan Speed: 2000 RPM (400 RPM Min) - Acoustical Noise: 22.8 dB(A) - Static Pressure: 2.28 mmH20 - Operating Voltage: 12V - MTTF: >150,000 Hours
| Performance | |
| Suitable location Locations in which the product can be used. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 9.2 cm |
| Number of speeds The different speeds that the device can operate at. | 2 |
| Rotational speed (min) | 400 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 22.8 dB |
| Airflow | 78.9 m³/h |
| Maximum air pressure | 2.28 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Plastic |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 7 |
| Fan connector | 4-pin |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.2 W |
| Voltage | 12 V |
| Rated current | 0.1 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 92 mm |
| Depth The distance from the front to the back of something. | 92 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Number of screws | 4 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| SKU | 392966 |
| MPN | NF-A9-PWM-CH-BK-S |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 92mm |
| Cooling Technology | Air |
| Stock Availability | Available for Shipping |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
