Airflow: 55.5 m³/h - Noise Level: 17.7 dB(A) - Bearing Type: SSO2 - Power Connection: 3-pin - Blade Geometry: A-Series with Flow Acceleration Channels - Frame Technology: AAO (Advanced Acoustic Optimisation) - 80x80x25 mm - Mounting hole spacing: 71.5x71.5 mm
| · 5V version |
| · Award-winning NF-A8 design |
| · AAO frame |
| · Stepped Inlet Design |
| · Integrated anti-vibration pads |

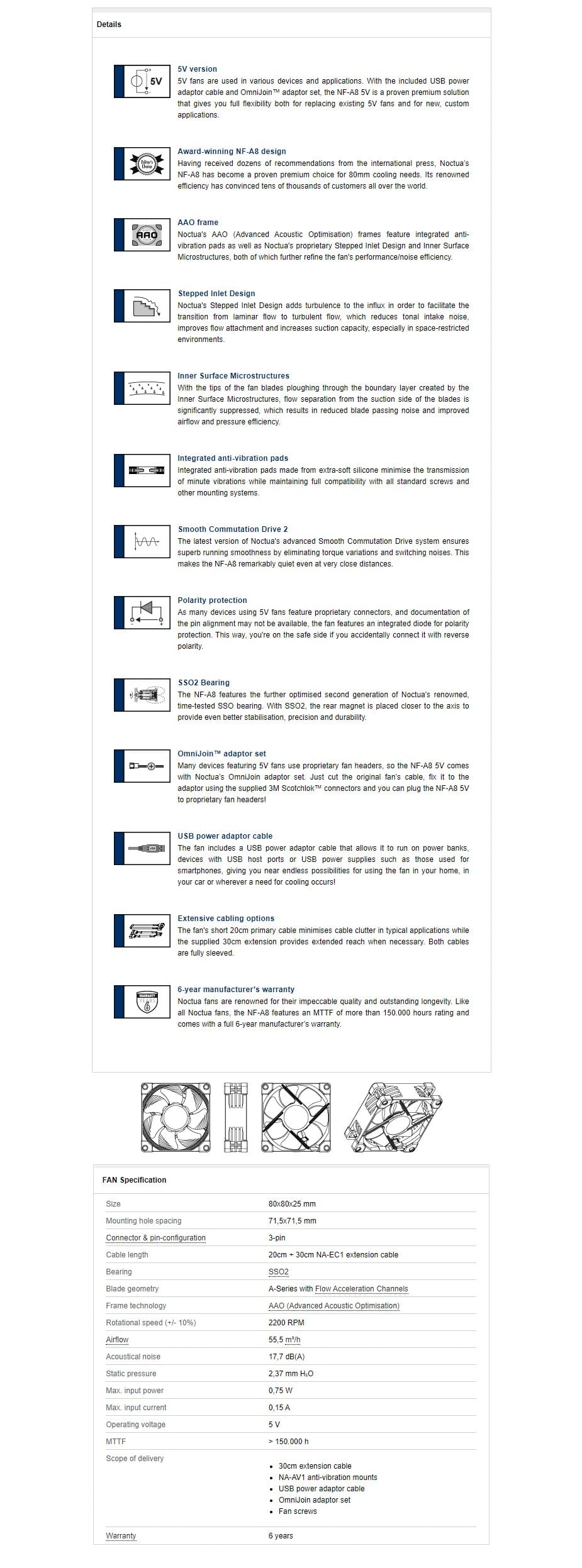

The NF-A8 5V is a dedicated 5V version of Noctua’s award-winning, premium-quality NF-A8 80mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame and sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A8 is renowned for its superior performance and outstanding quietness of operation. Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearing guarantee superb running smoothness and excellent long-term stability. Topped off with the included USB power adaptor cable, OmniJoin adaptor set and 6-year manufacturer’s warranty, the NF-A8 5V is a premium choice for demanding 5V applications.
| Performance | |
| Suitable location Locations in which the product can be used. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 8 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Not supported |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Not supported |
| Rotational speed (max) | 2200 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 17.7 dB |
| Airflow | 55.5 m³/h |
| Maximum air pressure | 2.37 mmH2O |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Beige, Brown |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 7 |
| Fan connector | 3-pin |
| Certification | CE |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 0.75 W |
| Voltage | 5 V |
| Rated current | 0.15 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 25 mm |
| Height The measurement of the product from head to foot or from base to top. | 80 mm |
| Cable length How long the cable is. | 0.3 m |
| Package width The distance from one side of the packaging to the other. | 150 mm |
| Package depth The distance from the front to the back of the packaging. | 34 mm |
| Package height The distance from the top to the bottom of the packaging. | 210 mm |
| Package weight Weight of the packaged product. | 250 g |
| Technical details | |
| Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies. | RoHS |
| Packaging content | |
| Screws included |
 |
| Other features | |
| Anti-vibration system |
|
| Mean time to failure (MTTF) | 150000 h |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 360 mm |
| Master (outer) case height | 390 mm |
| Master (outer) case gross weight | 11.5 kg |
| Products per master (outer) case | 40 pc(s) |
| SKU | 392952 |
| MPN | NF-A8-5V |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 80mm |
| Cooling Technology | Air |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
