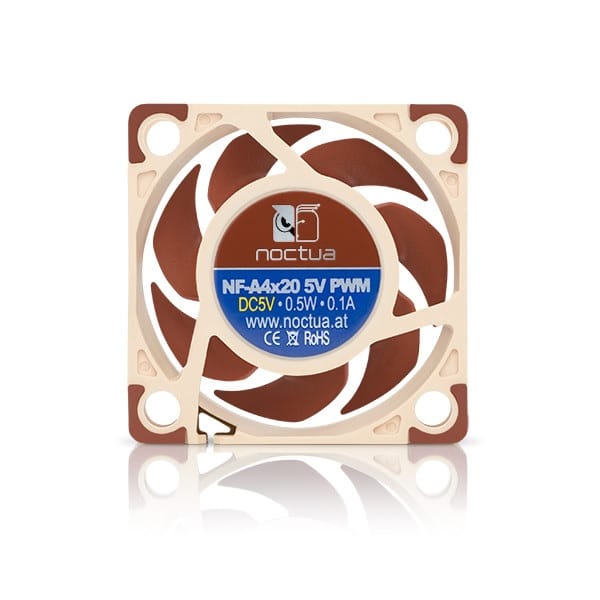

Manufacturer: Noctua. Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and an AAO frame, the NF-A4x20 5V PWM is a PWM enabled 5V variant of Noctuas highly optimised, premium quality quiet 40x20mm fan. The custom designed NE-FD3 PWM IC that integrates Smooth Commutation Drive technology and Noctuas reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, the OmniJoin Adaptor Set and 6 years manufacturers warranty, the NF-A4x20 5V PWM is a premium choice for demanding 5V applications that require PWM control.
Being a 5V fan, the NF-A4x20 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.
Highlights:
* Frame technology: Advanced Acoustic Optimisation (AAO).
* RPM: 5000.
* CFM: 5.5.
* dBA: 14.9.
* Fan width: 40mm.
* Fan depth: 20mm.
* Bearing type: SSO2.
* Connector: 4Pin.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page & infosheet.
Being a 5V fan, the NF-A4x20 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.
Highlights:
* Frame technology: Advanced Acoustic Optimisation (AAO).
* RPM: 5000.
* CFM: 5.5.
* dBA: 14.9.
* Fan width: 40mm.
* Fan depth: 20mm.
* Bearing type: SSO2.
* Connector: 4Pin.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page & infosheet.
| Performance | |
| Suitable location Locations in which the product can be used. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 4 cm |
| Rotational speed (min) | 1200 RPM |
| Rotational speed (max) | 5000 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 14.9 dB |
| Airflow | 9.4 m³/h |
| Minimum air pressure | 1.75 mmH2O |
| Maximum air pressure | 2.26 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Fan noise level (max) | 14.9 dB |
| Quantity per pack | 1 pc(s) |
| Fan speed (min) | 1100 RPM |
| Fan speed (max) | 5000 RPM |
| Fan's mean time to failure (MTTF) | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Beige, Brown |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan connector | 4-pin |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 0.6 W |
| Voltage | 5 V |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 0.05 A |
| Fan voltage | 5 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 40 mm |
| Depth The distance from the front to the back of something. | 40 mm |
| Height The measurement of the product from head to foot or from base to top. | 20 mm |
| Fan dimensions (W x D x H) | 40 x 40 x 20 mm |
| Fan thickness | 2 cm |
| Technical details | |
| Warranty period | 6 year(s) |
| Packaging content | |
| Cables included | Fan |
| Screws included |
|
| SKU | 324135 |
| MPN | NF-A4x20-5V-PWM |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 40mm |
| Stock Availability | Available for Shipping |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
