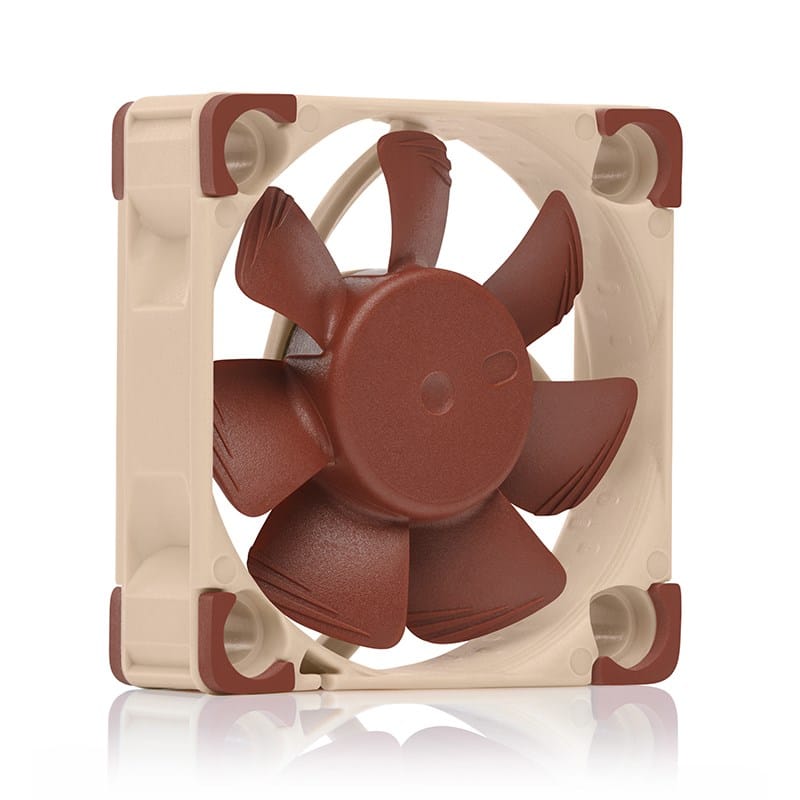

Size: 40x40x10mm - 4-Pin PWM Connection - SSO2 Bearing - AAO Frame - Integrated Anti-Vibration Pads - Inner Surface Microstructures - Rotational Speed: 5,000 RPM, 3,700 RPM with L.N.A - Min Rotation Speed: 1,000 RPM - Airflow: 8,9 m³/h, 6,6 m³/h with L.N.A - Acoustic Noise: 19,6 dB(A), 12,9 dB(A) with L.N.A - MTTF: >150,000 Hours - Operating Voltage: 12V
| Performance | |
| Suitable location Locations in which the product can be used. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 4 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Not supported |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Not supported |
| Rotational speed (min) | 1000 RPM |
| Rotational speed (max) | 5000 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 19.6 dB |
| Noise level with LNA (max) | 12.9 dB |
| Airflow | 8.9 m³/h |
| Airflow with LNA (max) | 6.6 m³/h |
| Maximum air pressure | 1.95 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Beige, Red |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 7 |
| Fan connector | 4-pin |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 0.48 W |
| Voltage | 12 V |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 0.04 A |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 40 x 40 x 10 mm |
| Cable length How long the cable is. | 0.3 m |
| Package width The distance from one side of the packaging to the other. | 150 mm |
| Package depth The distance from the front to the back of the packaging. | 34 mm |
| Package height The distance from the top to the bottom of the packaging. | 210 mm |
| Package weight Weight of the packaged product. | 180 g |
| Packaging content | |
| Screws included |
|
| Number of screws | 4 |
| Low-noise adaptor (LNA) |
|
| Other features | |
| Mean time to failure (MTTF) | 150000 h |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 390 mm |
| Master (outer) case length | 360 mm |
| Master (outer) case height | 390 mm |
| Products per master (outer) case | 36 pc(s) |
| SKU | 351918 |
| MPN | NF-A4X10-PWM |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 40mm |
| Cooling Technology | Air |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
