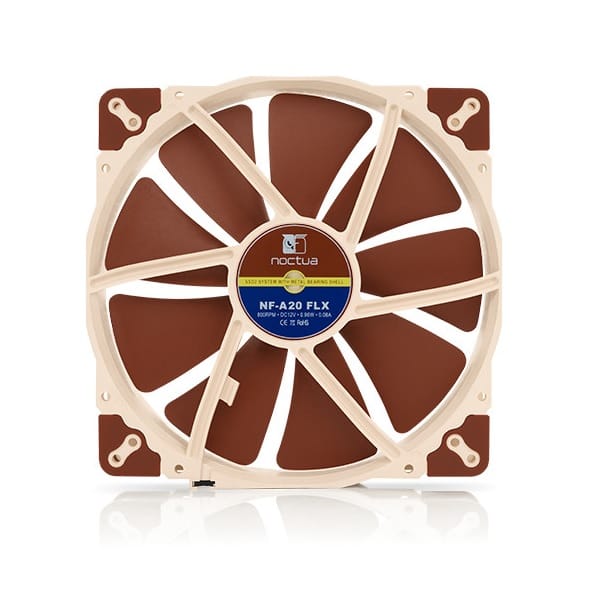

Manufacturer: Noctua. The NF-A20 is a highly optimised, premium quality quiet 200mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A20 brings the renowned quiet cooling performance of Noctuas award-winning A-series to the increasingly popular 20cm form factor. The PWM version uses Noctuas custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers, which allows it to strike a perfect balance between quietness and ventilation performance in each given situation. Its superb running smoothness, reference-class SSO2 bearing and Noctuas trusted premium quality make the NF-A20 an elite choice for the highest demands.
Highlights:
* Frame technology: Advanced Acoustic Optimisation (AAO).
* RPM: 800.
* CFM: 86.4.
* dBA: 18.1.
* Fan width: 200mm.
* Fan depth: 30mm.
* Bearing type: SSO2.
* Connector: 4Pin.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page & infosheet.
Highlights:
* Frame technology: Advanced Acoustic Optimisation (AAO).
* RPM: 800.
* CFM: 86.4.
* dBA: 18.1.
* Fan width: 200mm.
* Fan depth: 30mm.
* Bearing type: SSO2.
* Connector: 4Pin.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page & infosheet.
| Performance | |
| Suitable for Who can use the product, or what the product can be used for. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 20 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Not supported |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Not supported |
| Rotational speed (min) | 350 RPM |
| Rotational speed (max) | 800 RPM |
| Rotational speed with LNA (max) | 550 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 18.1 dB |
| Noise level with LNA (max) | 10.7 dB |
| Airflow | 146.9 m³/h |
| Airflow with LNA (max) | 100.8 m³/h |
| Minimum air pressure | 0.51 mmH2O |
| Maximum air pressure | 1.08 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Beige, Brown |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 9 |
| Fan connector | 4-pin |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 0.96 W |
| Voltage | 12 V |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 0.08 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 200 mm |
| Depth The distance from the front to the back of something. | 30 mm |
| Height The measurement of the product from head to foot or from base to top. | 200 mm |
| Packaging content | |
| Cables included | Fan |
| Screws included |
|
| Number of screws | 4 |
| Low-noise adaptor (LNA) |
|
| Other features | |
| Mounting hole pattern (W x D) | 170 x 170 mm |
| Mean time to failure (MTTF) | 150000 h |
| SKU | 324114 |
| MPN | NF-A20-PWM |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 200mm |
| Stock Availability | Available for Shipping |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
